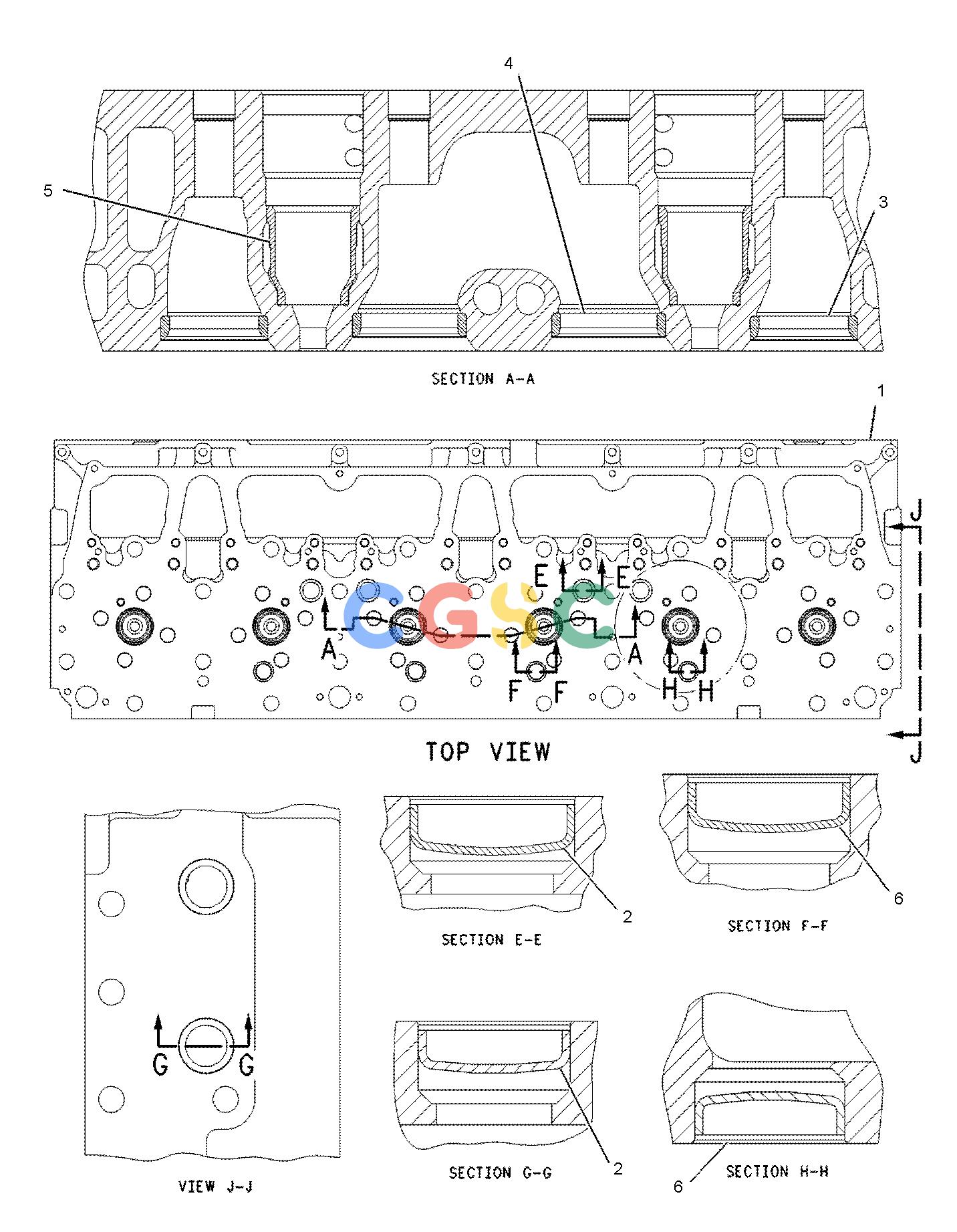

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | Z | [1] | CYLINDER HEAD | |
| 2. | 3B-0623 | [8] | PLUG-CUP | |
| 3. | 179-9453 | [12] | INSERT-VALVE SEAT(EXHAUST)(STANDARD) | |
| 179-9455AB | [12] | SEAT-VALVE(0.508-MM OS) | ||
| 4. | 138-2006 | [12] | INSERT-VALVE SEAT(INLET)(STANDARD) | |
| 144-2952AB | [12] | INSERT-VALVE SEAT(0.508-MM OS) | ||
| 5. | 116-1102 | [6] | SLEEVE-INJECTOR | |
| 6. | 6V-7604 | [16] | PLUG-CUP | |
| A | NOT PART OF THIS GROUP | |||
| B | USE AS REQUIRED | |||
| Z | NOT SERVICED SEPARATELY | |||
