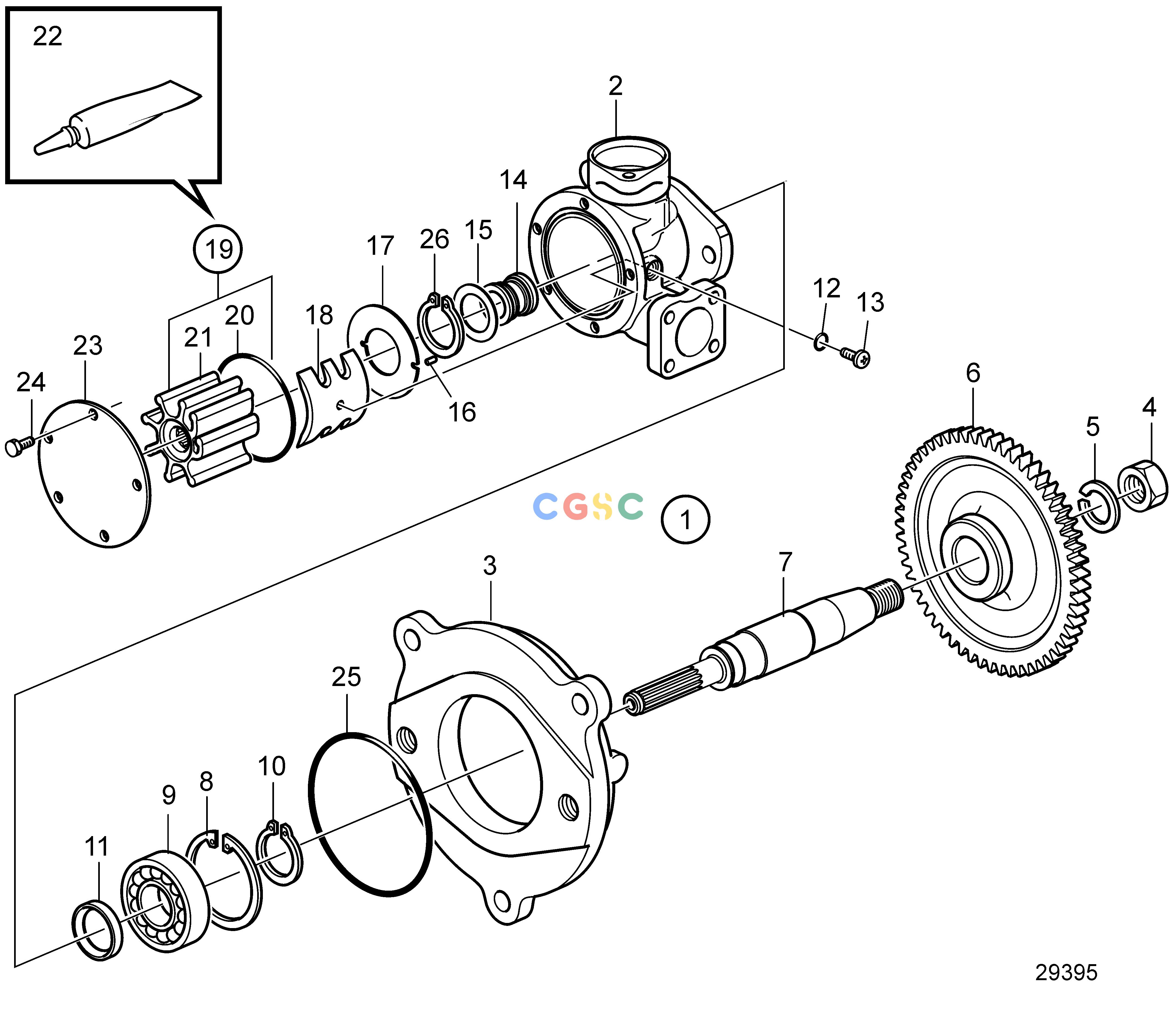

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Cooling SystemSee Water Pump, Component, for Engine with Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
621 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21380886
|
[1] |
Sea water pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3587886
|
[1] |
Hexagon nut
|
|
| 5. |
941914
|
[1] |
Spring washer
|
|
| 6. |
3161258
|
[1] |
Gear
|
|
| 7. |
21380884
|
[1] |
Shaft
|
|
| 8. |
812953
|
[1] |
Lock ring
|
|
| 9. |
3587881
|
[1] |
Bearing
|
|
| 10. |
812951
|
[1] |
Lock ring
|
|
| 11. |
3587882
|
[1] |
Seal
|
|
| 12. |
3583614
|
[1] |
O-ring
|
|
| 13. |
3583605
|
[1] |
Hexagon screw
|
|
| 14. |
3583609
|
[1] |
Seal
|
|
| 15. |
888388
|
[1] |
Washer
|
|
| 16. |
888387
|
[1] |
Pin
|
|
| 17. |
807589
|
[1] |
Wear washer
|
|
| 18. |
3583603
|
[1] |
Cam
|
|
| 19. |
3817587
|
[1] |
Impeller kit
|
Replaced by 21730348
|
| 19. |
21730348
|
[1] |
Impeller kit
|
|
| 20. |
3587885
|
[1] |
O-ring
|
|
| 21. |
3819486
|
[1] |
Impeller
|
|
| 22. |
3862178
|
[1] |
Grease
|
|
| 23. |
3587879
|
[1] |
End cover
|
|
| 24. |
3583605
|
[4] |
Hexagon screw
|
|
| 25. |
925259
|
[1] |
O-ring
|
|
| 26. |
809444
|
[1] |
Lock ring
|
|
