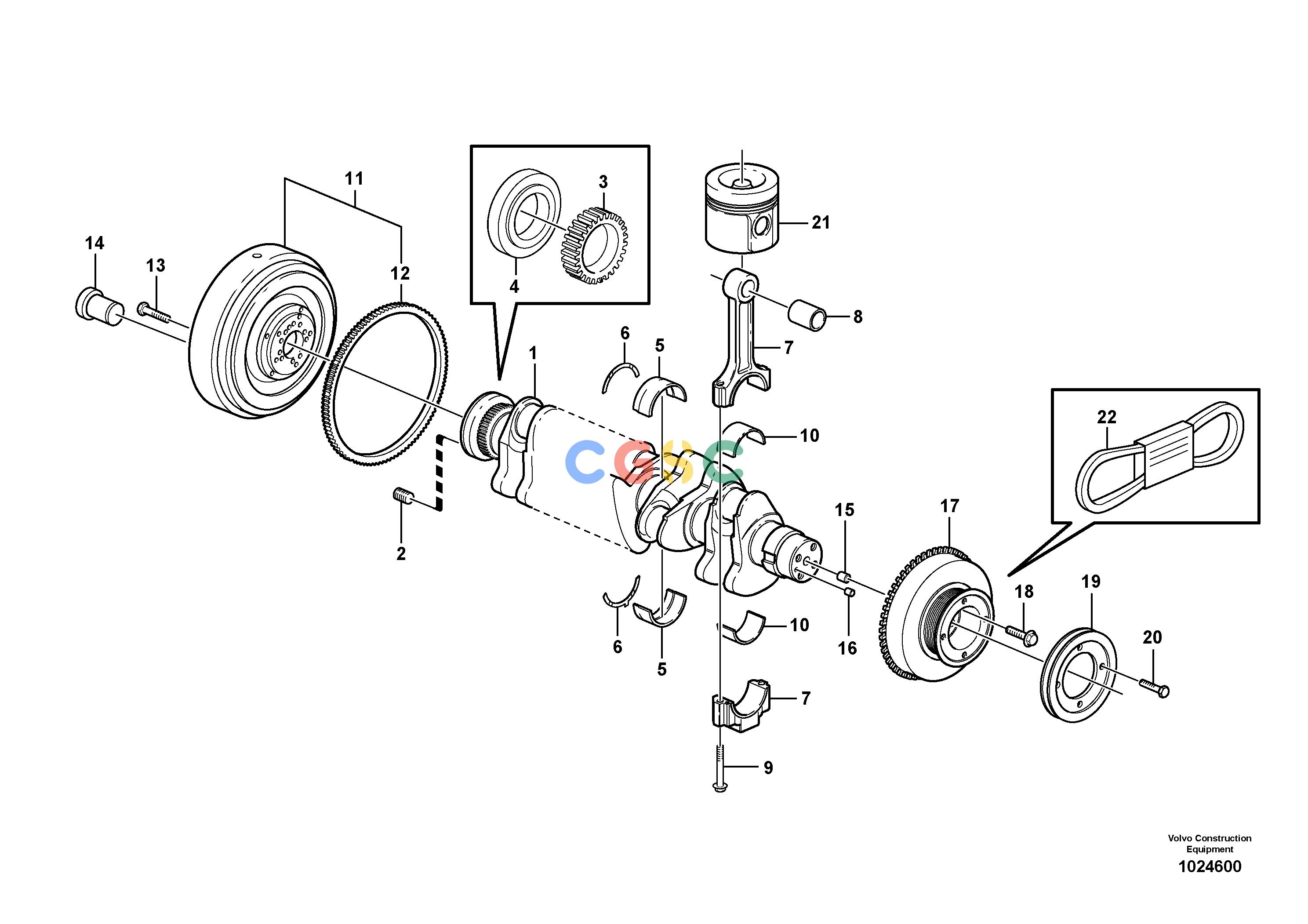

沃尔沃零件查询EC160C Crankshaft and related parts120001-120962 140001-140192 NoneNone8280348Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
703 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21351237
|
[1] |
Crankshaft
|
|
| 2. |
VOE20459144
|
[10] |
Insert
|
|
| 3. |
VOE21361072
|
[1] |
Gear
|
|
| 4. |
VOE20791429
|
[1] |
Flywheel companion flange
|
|
| 5. |
VOE22967564
|
[7] |
Main bearing
|
STD 84,00 MM
|
| 5. |
VOE22967569
|
[7] |
Main bearing
|
U SZ 83,75 MM
|
| 6. |
VOE20850116
|
[2] |
Thrust washer
|
STD 2,15 MM
|
| 6. |
VOE20850122
|
[2] |
Thrust washer
|
O SZ 2,35 MM
|
| 7. |
VOE20851091
|
[6] |
Connecting rod
|
|
| 8. |
VOE20799647
|
[6] |
Piston bushing
|
|
| 9. |
VOE20799587
|
[12] |
Flange screw
|
|
| 10. |
VOE20850096
|
[6] |
Big-end bearing kit
|
STD 63,00 MM
|
| 10. |
VOE20850097
|
[6] |
Big-end bearing kit
|
U SZ 62,75 MM
|
| 11. |
VOE20524696
|
[1] |
Flywheel
|
|
| 12. |
VOE21033328
|
[1] |
Starter gear ring
|
|
| 13. |
VOE20405654
|
[10] |
Bolt
|
|
| 14. |
VOE20405643
|
[5] |
Plug
|
|
| 15. |
VOE20405634
|
[1] |
Spring pin
|
|
| 16. |
VOE20450628
|
[1] |
Pin
|
|
| 17. |
VOE20799122
|
[1] |
V-belt pulley
|
|
| 18. |
VOE20405724
|
[4] |
Screw
|
|
| 19. |
VOE20459155
|
[1] |
Pulley
|
|
| 20. |
VOE20459156
|
[4] |
Screw
|
|
| 21. |
|
[1] |
Piston
|
|
| 22. |
|
[1] |
V-ribbed Belt
|
|
