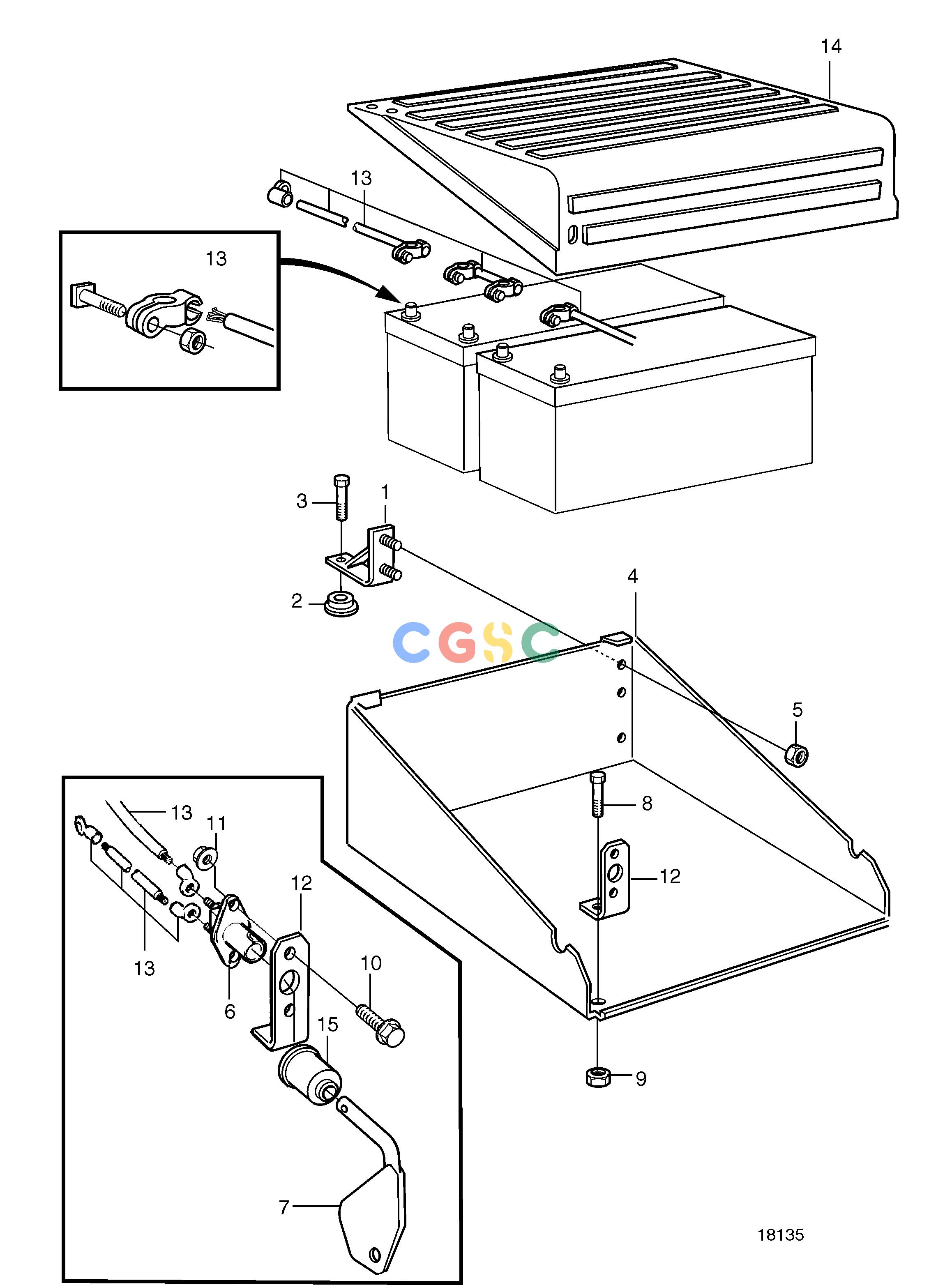

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Electrical SystemBattery BoxEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
650 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846285
|
[2] |
Bracket
|
|
| 2. |
846284
|
[2] |
Washer
|
|
| 3. |
969445
|
[2] |
Flange screw
|
|
| 4. |
863627
|
[1] |
Battery box
|
|
| 5. |
990942
|
[4] |
Flange nut
|
|
| 6. |
22172491
|
[1] |
Main switch
|
|
| 7. |
8157766
|
[1] |
Key
|
|
| 8. |
984752
|
[2] |
Flange screw
|
|
| 9. |
990941
|
[2] |
Flange nut
|
|
| 10. |
984725
|
[2] |
Flange screw
|
|
| 11. |
990939
|
[2] |
Flange nut
|
|
| 12. |
1587695
|
[1] |
Bracket
|
|
| 13. |
7749110_120
|
|
electrical materials
|
|
| 14. |
1587694
|
[1] |
Cover
|
|
| 15. |
1582293
|
[1] |
Bellows
|
|
