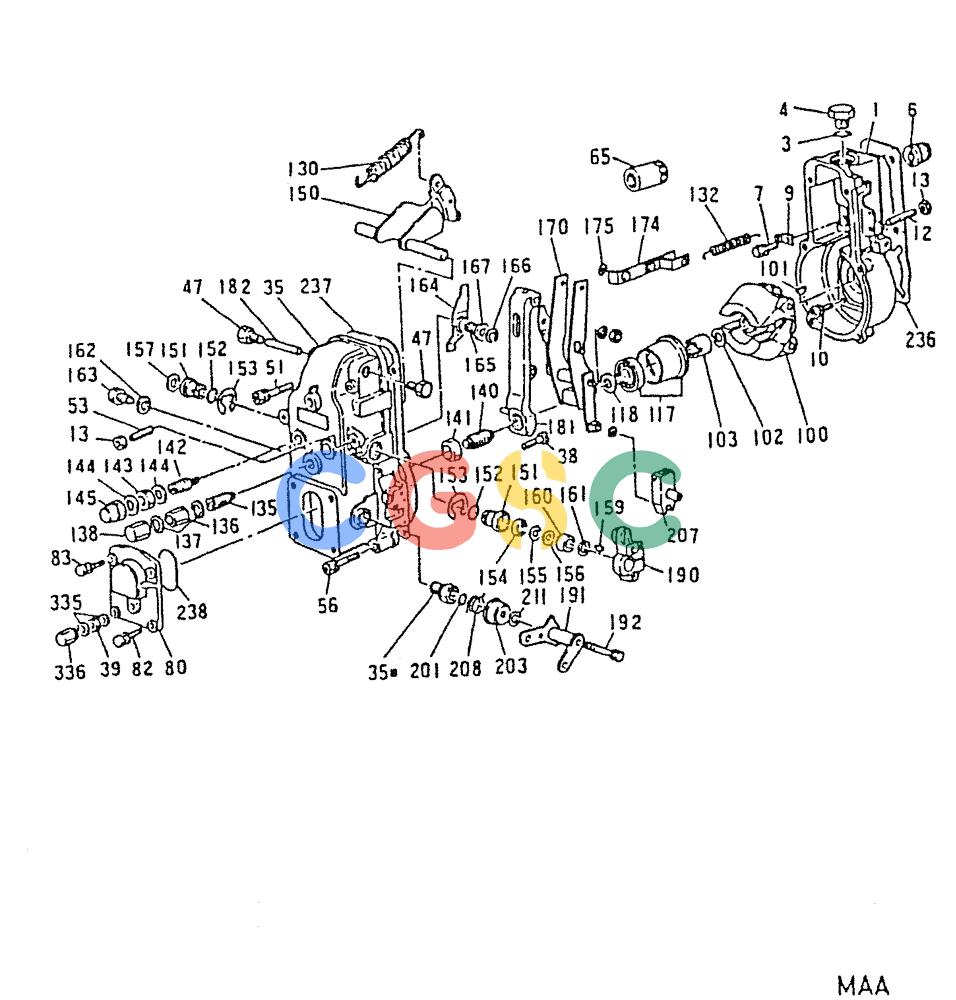

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-008) - GOVERNOR (INNER PARTS) 040-132A Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-336. | VAME059656 | [1] | GOVERNOR | KOBRSV TYPE |
| 1. | VAME704722 | [1] | HOUSING, GOV | |
| 3. | VAME705361 | [1] | O-RING | KOB |
| 4. | VAME704666 | [1] | PLUG | KOB |
| 6. | VAME704502 | [1] | ACTUATOR | KOBADAPTER |
| 7. | VAME705224 | [1] | BOLT | KOB Superseded by part number: VA0200181840 |
| 9. | VAME704654 | [1] | PLATE | |
| 10. | VAME705225 | [6] | BOLT | |
| 12. | VAME704635 | [1] | SCREW | |
| 13. | VAME704505 | [2] | SCREWDRIVER | KOBNUT, LOCK |
| 35. | VAME704847 | [1] | COVER, GOV | |
| 35B. | VAME704658 | [1] | BUSHING | KOB |
| 38. | VAME704715 | [1] | SCREW | |
| 39. | VAME705227 | [1] | NUT | |
| 47. | VAME704568 | [2] | PLUG | KOB |
| 51. | VAME705321 | [2] | BOLT | KOB Superseded by part number: VA0201065040 |
| 53. | VAME704655 | [1] | SCREW | KOB |
| 56. | VAME705296 | [4] | BOLT | KOB |
| 65. | VAME704725 | [1] | CAP | |
| 80. | VAME704802 | [1] | COVER | |
| 82. | VAME705232 | [2] | BOLT | KOB Superseded by part number: VA0290206210 |
| 83. | VAME717714 | [2] | BOLT | KOB Superseded by part number: VA0200061640 |
| 100. | VAME717320 | [1] | FLYWEIGHT ASSY | |
| 101. | VAME705233 | [1] | KEY | KOBWOODRUFF Superseded by part number: VA0258031610 |
| 102. | VAME705234 | [1] | WASHER | KOBSPG |
| 103. | VAME705325 | [1] | NUT | KOB |
| 117. | VAME704728 | [1] | SLEEVE ASSY | |
| 118. | VAME705236 | [1] | SHIM | KOBT=0.2 |
| . . | VAME705237 | [1] | SHIM | KOBT=0.3 |
| . . | VAME705238 | [1] | SHIM | KOBT=0.4 |
| . . | VAME705239 | [1] | SHIM | KOBT=1.0 |
| . . | VAME717875 | [1] | SHIM | KOBT=0.5 |
| . . | VAME717876 | [1] | SHIM | KOBT=1.5 |
| 130. | VAME704905 | [1] | SPRING | KOBGOV |
| 132. | VAME704667 | [1] | SPRING | |
| 135. | VAME704983 | [1] | CAP | KOBCAPSULE, SPG |
| 136. | VAME704669 | [1] | NUT | KOBNUT |
| 137. | VAME705218 | [2] | GASKET | KOB Superseded by part number: VA0265121540, 77270060 |
| 138. | VAME704540 | [1] | NUT | KOBNUT, CAP Superseded by part number: VA1541591200 |
| 140. | VAME717071 | [1] | CAPSULE, SPG | |
| 141. | VAME705339 | [1] | NUT | |
| 142. | VAME704732 | [1] | CAPSULE,SPG | |
| 143. | VAME705395 | [1] | NUT | |
| 144. | VAME705396 | [2] | GASKET | KOB Superseded by part number: VA0265162040, 77270080 |
| 145. | VAME704733 | [1] | NUT, CAP | |
| 150. | VAME704734 | [1] | LEVER | KOB |
| 151. | VAME704981 | [2] | BUSHING | KOB Superseded by part number: VAME755248 |
| 152. | VAME705348 | [2] | O-RING | |
| 153. | VAME705381 | [2] | SNAP RING | KOB |
| 154. | VAME705333 | [1] | OIL SEAL | KOB |
| 155. | VAME705334 | [1] | SHIM | KOB Superseded by part number: VA1394110000 |
| 156. | VAME705384 | [1] | GASKET | KOBSHIM, T=0.3 |
| 157. | VAME705338 | [1] | PLUG | KOB |
| 159. | VAME705248 | [1] | KEY | KOBWOODRUFF Superseded by part number: VA0258031310 |
| 160. | VAME704924 | [1] | COLLAR | KOB |
| 161. | VAME704608 | [1] | WASHER | KOB Superseded by part number: VA1542060200 |
| 162. | VAME785397 | [1] | GASKET | |
| 163. | VAME704735 | [1] | BOLT | |
| 164. | VAME704736 | [1] | LEVER | |
| 165. | VAME704737 | [1] | SPRING | |
| 166. | VAME705398 | [1] | RING | KOBSNAP |
| 167. | VAME705399 | [1] | WASHER | |
| 170. | VAME704738 | [1] | GUIDE LEVER ASSY | |
| 174. | VAME704674 | [1] | LINK | |
| 175. | VAME705249 | [1] | SNAP RING | KOB |
| 181. | VAME701739 | [1] | LEVER, TENSION | |
| 182. | VAME704476 | [1] | PIN | |
| 190. | VAME704740 | [1] | LEVER | KOBCONTROL |
| 191. | VAME704741 | [1] | LEVER | KOB Superseded by part number: VA1543643420 |
| 192. | VAME717700 | [1] | BOLT | KOB |
| 201. | VAME705385 | [1] | PISTON RING SET | KOB Superseded by part number: VA0296310030 |
| 203. | VAME704681 | [1] | CAP | KOB Superseded by part number: VA1543220100 |
| 207. | VAME704682 | [1] | LEVER ASSY | |
| 208. | VAME717017 | [1] | SPRING | KOB |
| 211. | VAME717813 | [1] | SHIM | KOBSHIM |
| . . | VAME717814 | [1] | SHIM, T=0.25 | |
| . . | VAME7I7815 | [1] | SHIM, T=0.30 | |
| . . | VAME717816 | [1] | SHIM, T=0.35 | |
| . . | VAME717817 | [1] | SHIM, T=0.40 | |
| . . | VAME7I7779 | [1] | SHIM, T=0.50 | |
| 236. | VAME704772 | [1] | GASKET | |
| 237. | VAME704618 | [1] | GASKET | KOB Superseded by part number: VA1543900300 |
| 238. | VAME705342 | [1] | O-RING | KOB Superseded by part number: VA0296352020 |
| 335. | VAME717738 | [2] | GASKET | KOB Superseded by part number: VA0265061040 |
| 336. | VAME704757 | [1] | NUT | KOBCAP |
