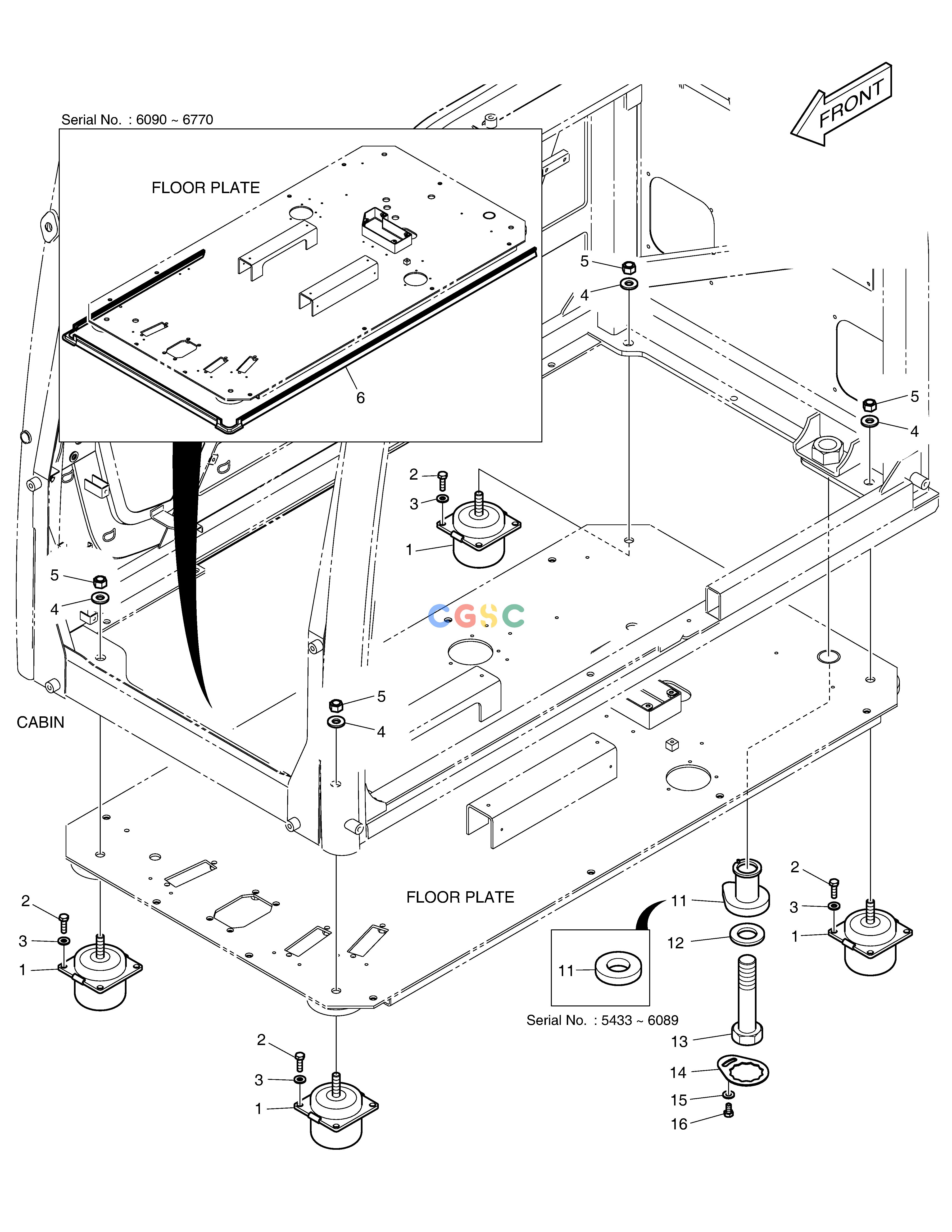

斗山零件查询CABIN MOUNTING - ROPS DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
476 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
180204-00044A
|
[-] |
|
|
| -. |
180204-00044B
|
[-] |
|
|
| -. |
180204-00044C
|
[-] |
|
|
| -. |
180204-00044E
|
[-] |
|
|
| 1. |
180204-00002
|
[4] |
|
180204-00002A
|
| 1. |
180204-00002A
|
[4] |
|
|
| 11. |
250105-00015
|
[1] |
|
|
| 11. |
250105-00015A
|
[1] |
|
|
| 11. |
250105-00403
|
[1] |
|
|
| 12. |
114-00055
|
[1] |
WASHER;HARDEN
|
|
| 13. |
120106-00166B
|
[1] |
|
|
| 14. |
250105-00358
|
[1] |
|
250105-00404
|
| 14. |
250105-00404
|
[1] |
|
|
| 15. |
2114-1898D1
|
[1] |
WASHER
|
|
| 15. |
2114-1898D17
|
[1] |
WASHER
|
|
| 16. |
2120-2166D4
|
[1] |
BOLT
|
|
| 16. |
2120-2166D54
|
[1] |
BOLT
|
|
| 2. |
S0512366
|
[16] |
BOLT
|
|
| 3. |
2114-1898D1
|
[16] |
WASHER
|
|
| 4. |
2114-1058D2
|
[4] |
WAHSER
|
|
| 5. |
2121-9007
|
[4] |
NUT
|
|
| 6. |
101588-00027A
|
[1] |
|
|
