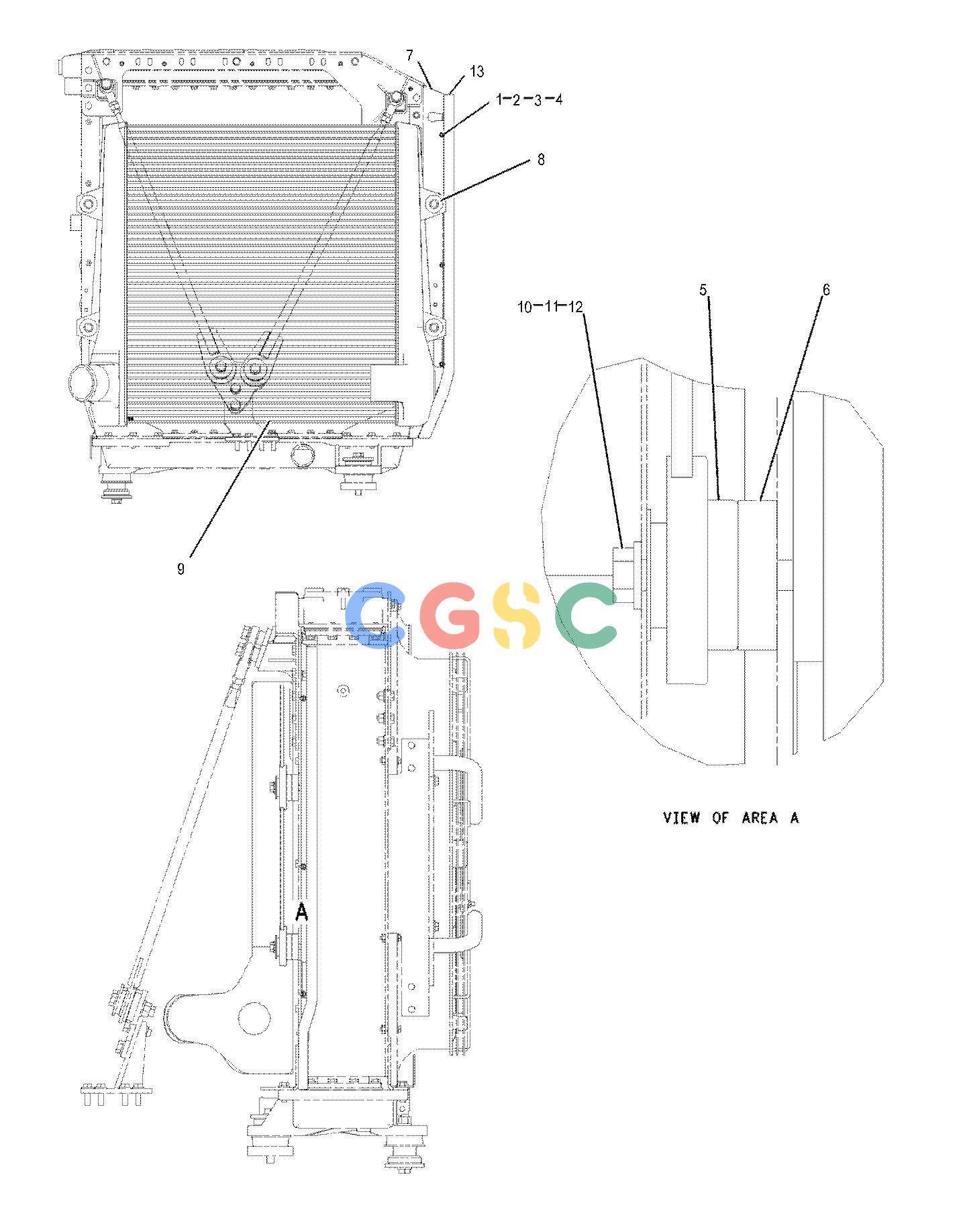

卡特零件查询（725） 196-3591: AFTERCOOLER GP-AIR
广数供应链运营团队, 14 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2U-2452 | [3] | LOCKNUT | |
| 2. | 2U-2453 | [3] | WASHER(5.6X12.6X1.22-MM THK) | |
| 3. | 2U-2589 | [3] | BOLT | |
| 4. | 2U-3416 | [3] | CLAMP-TUBE | |
| 5. | 7T-8331 | [4] | MOUNT AS | |
| 6. | 166-8323 | [4] | SPACER(13.5X57X15-MM THK) | |
| 7. | 166-8324 | [1] | PLATE | |
| 8. | 183-3984 | [4] | WASHER(13.5X50X1.6-MM THK) | |
| 9. | 196-3590 | [1] | AFTERCOOLER AS | |
| 10. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 12. | 8T-6868M | [4] | BOLT(M12X1.75X80-MM) | |
| 13. | 5P-5905D | | SEAL(1-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
