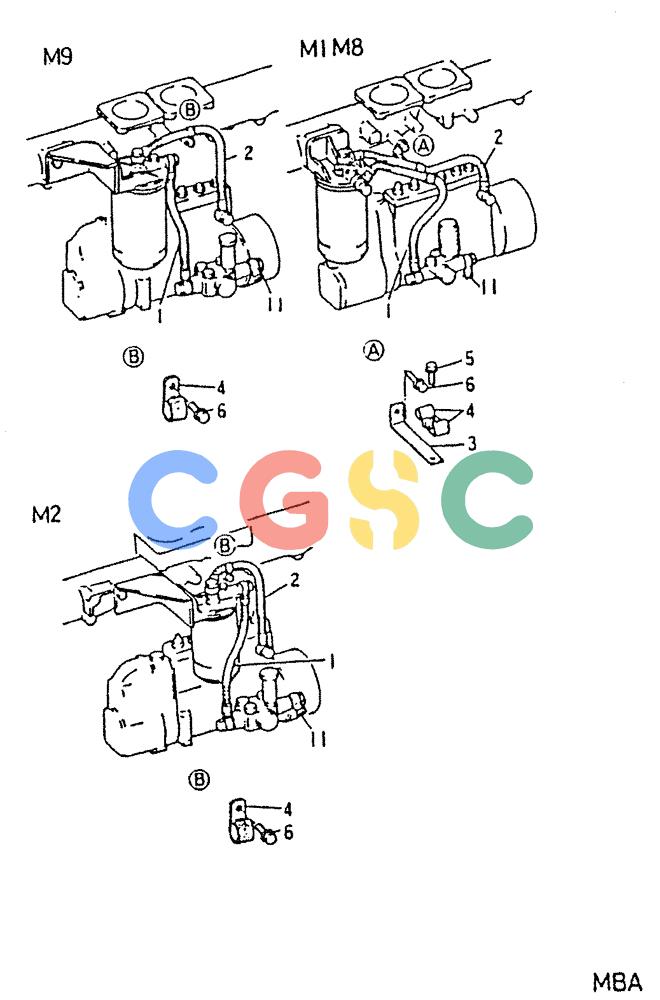

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-021) - FUEL HOSE 040-220B Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
739 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME910136 | [1] | FLEXIBLE HOSE | KOBFEED, I/P-FILTER, L=360, M2 ONLY |
| . . | VAME910348 | [1] | HOSE | KOBFUEL FEED, I/P-FILTER, L=480, M1 ONLY |
| . . | VAME910450 | [1] | FLEXIBLE HOSE | KOBFEED, I/P-FILTER, L=500, M8 ONLY |
| . . | VAME910138 | [1] | HOSE | KOBFUEL FEED, I/P-FILTER, L=380, M9 ONLY Superseded by part number: 134806A1 |
| 2. | VAME910445 | [1] | HOSE | KOBFUEL FEED, FILTER-I/P, L=150, M1 & M8 ONLY Superseded by part number: VAME91044501 |
| . . | VAME910434 | [1] | HOSE | KOBFUEL FEED, FILTER-I/P, L=340, M2 & M9 ONLY Superseded by part number: 134815A1 |
| 3. | VAME930243 | [1] | COUNTERWEIGHT STAY, M1 & M8 ONLY | COUNTERWEIGHT STAY, M1 & M8 ONLY |
| 4. | VA3126101500 | [1] | CLAMP | KOBCLAMP, M2 & M9 ONLY Superseded by part number: 134803A1 |
| . . | VAMH020807 | [2] | CLIP | KOBM1 & M8 ONLY |
| 5. | VAMH000999 | [1] | BOLT | KOBBOLT, FLANGE 6X12, M1 & M8 ONLY |
| 6. | VAMH000706 | [1] | SCREW | KOBBOLT, FLANGE 10X16 Superseded by part number: 132289A1 |
| 11. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT, SWIVELING, D=10, M1, M2 & M9 ONLY |
| . . | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT, SWIVELING, D=10, M8 ONLY |
