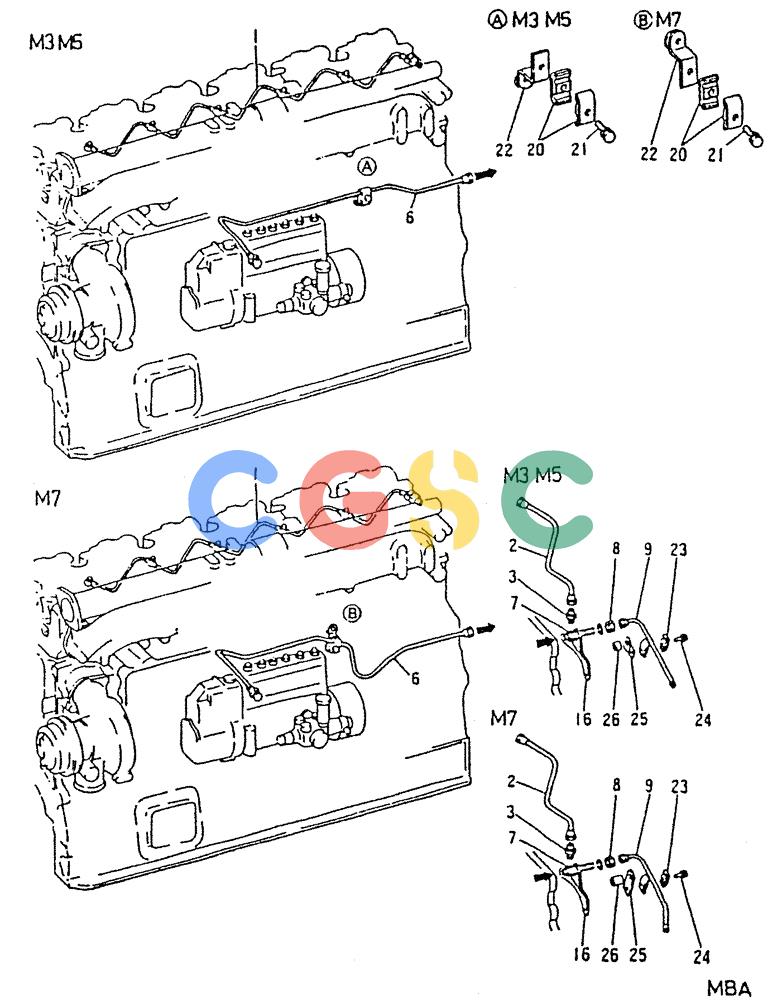

神钢零件查询(6D22) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (03-023) - FUEL RETURN SYSTEM 040-800B Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
468 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME056323 | [1] | PIPE | KOBFUEL LEAK OFF Superseded by part number: 240284A1 |
| 2. | VAME059630 | [1] | PIPE | KOB |
| 3. | VAMH038906 | [1] | HYD CONNECTOR | KOBCONNECTOR PT1/8-M14 Superseded by part number: 133327A1 |
| 6. | VAME059592 | [1] | PIPE | KOBOVER FLOW, M3 & M5 ONLY Superseded by part number: 134732A1 |
| . . | VAME059611 | [1] | M7 ONLY | |
| 7. | VA3193343600 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| 8. | VAMF430728 | [1] | NUT | KOBNUT 14 Superseded by part number: 132634A1 |
| . . | VAMF450408 | [1] | WASHER | KOBWASHER, SPG 14 |
| 9. | VAME050857 | [1] | PIPE, FUEL RETURN, 10, M7 ONLY | |
| . . | VAME059618 | [1] | PIPE | KOB10, M3 & M5 ONLY |
| 16. | VA3096105500 | [1] | BRACKET, FUEL | |
| 20. | VAMH021233 | [2] | CLAMP | KOBCLAMP Superseded by part number: 133329A1 |
| 21. | VAMF140013 | [1] | BOLT | KOBBOLT, FLANGE 6X35 |
| 22. | VAME059508 | [1] | STAY | KOB |
| 23. | VAMH021233 | [2] | CLAMP | KOBCLAMP Superseded by part number: 133329A1 |
| 24. | VAMF140013 | [1] | BOLT | KOBBOLT, FLANGE 6X35 |
| 25. | VAME930318 | [1] | STAY | KOBM3 & M5 ONLY |
| . . | VAMH023119 | [1] | BRACKET | KOBM7 ONLY Superseded by part number: 133324A1 |
| 26. | VAME920037 | [1] | SPACER L=15, M3 ONLY | |
| . . | VA3123005900 | [1] | SPACER | SMSPACER L=10, M5 ONLY |
| . . | VAMH025018 | [1] | SPACER L=33, M7 ONLY | |
