神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (01-002) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
235 次

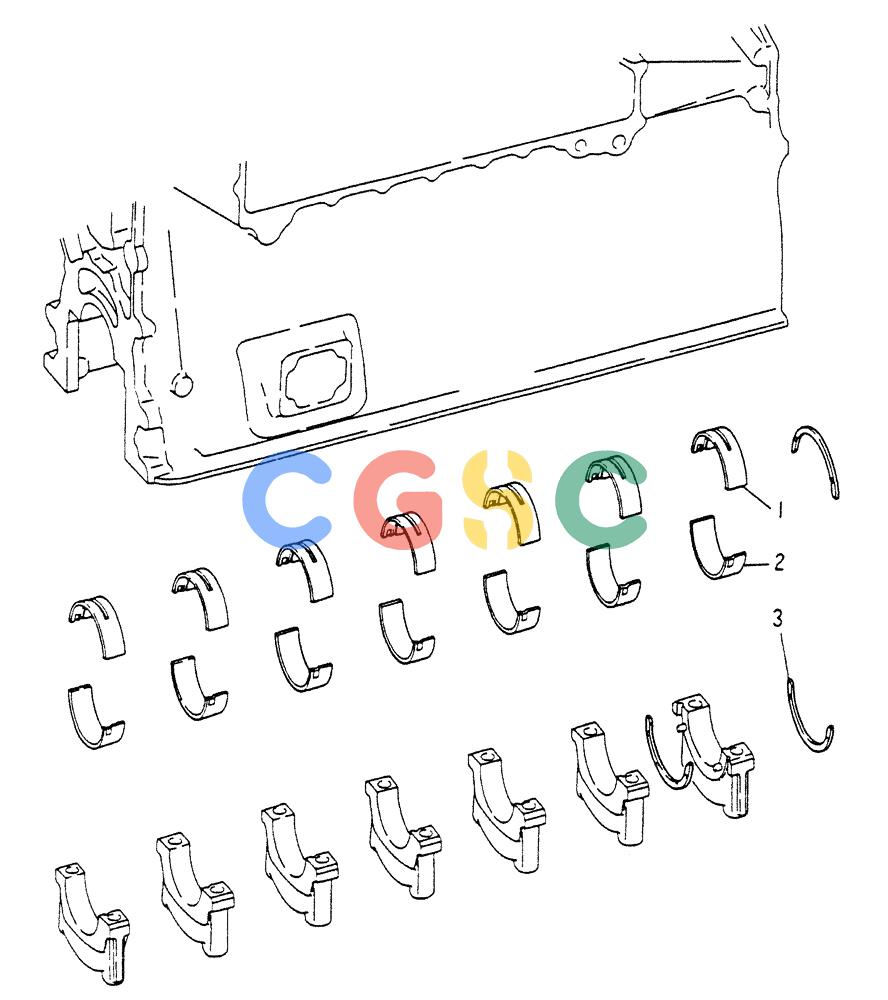

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D22TC ALL | [1] | CRANK SHAFT BEARING, M0 | |
| . . | 6D22T ALL | [1] | CRANK SHAFT BEARING, M0 | |
| . . | 6D22Z ALL | [1] | CRANK SHAFT BEARING, M0 | |
| 1-2. | VAME052053 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET, ONE MODEL Superseded by part number: 132347A1 |
| . . | VAME052054 | [1] | SET OF STD MAIN BRGS | KOBUS,0.25 Superseded by part number: 132343A1 |
| . . | VAME052055 | [1] | SET OF STD MAIN BRGS | KOBUS,0.50 Superseded by part number: 132344A1 |
| . . | VAME052056 | [1] | CRANKSHAFT BEARING | KOBUS,0.75 Superseded by part number: VAME996664 |
| . . | VAME052057 | [1] | BEARING | KOBUS, 1.00 |
| 1. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING, UPPER STD, ME052038 |
| 2. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING, LOWER STD, ME052045 |
| 3. | VA3120978101 | [3] | PLATE | KOBPLATE, THRUST STD Superseded by part number: 132348A1 |
| . . | VA3120978201 | [1] | SPACER | KOBOS, 0.15 Superseded by part number: 132351A1 |
| . . | VA3120978301 | [1] | THRUST PLATE | KOBOS, 0.30 Superseded by part number: 132353A1 |
| . . | VA3120978401 | [1] | BEARING SET | KOBOS, 0.45 Superseded by part number: 132354A1 |
