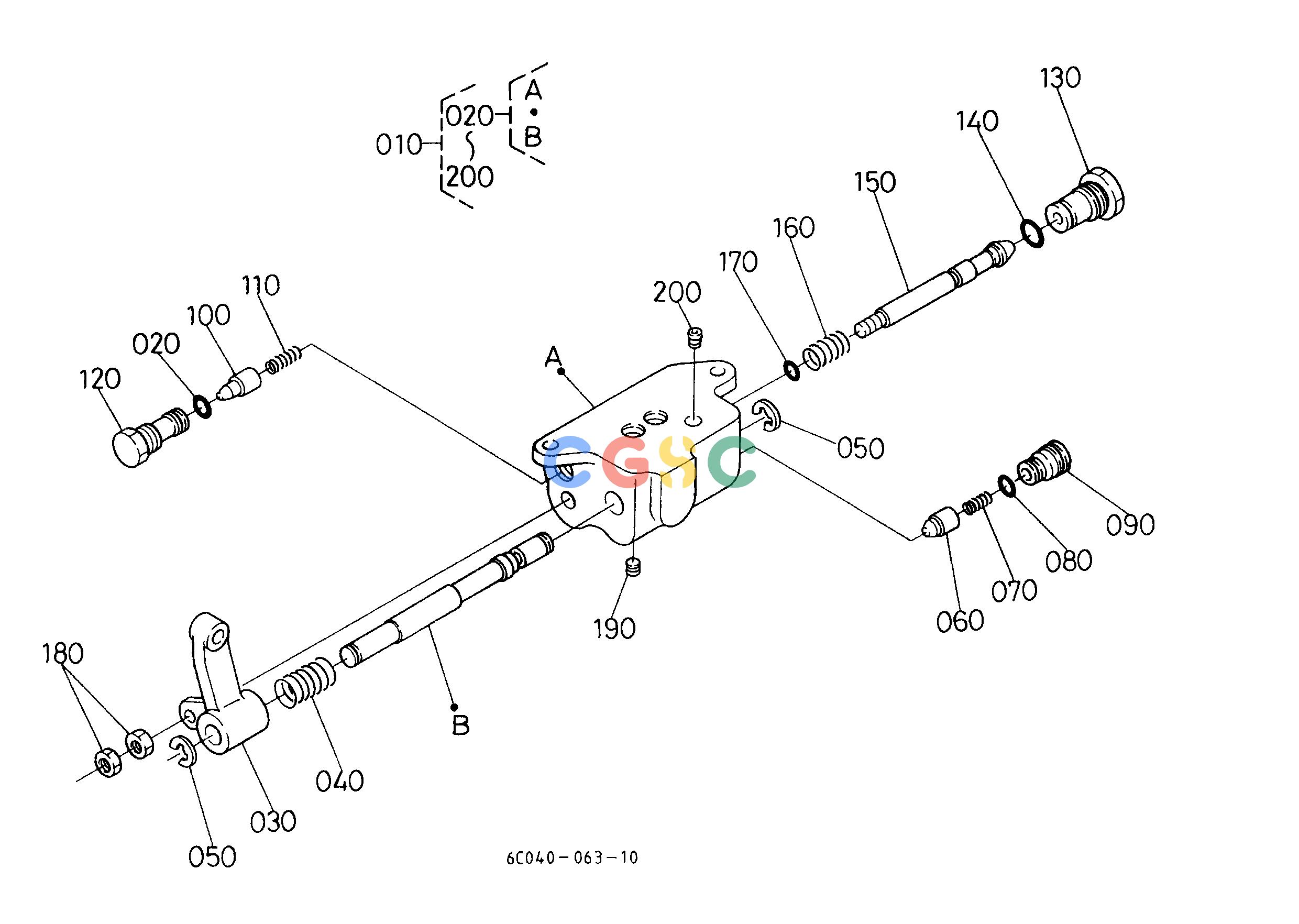

久保田零件查询J41001 CONTROL VALVE [COMPONENT PARTS] ## S.No.<=50402 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04036200
|
[1] |
ASSY VALVE,CONTROL
|
2.7060(lbs); 1.230
|
| 020. |
6C04036600
|
[1] |
ASSY BODY-SPOOL
|
2.2440(lbs); 1.020
|
| 030. |
6C04036650
|
[1] |
LEVER
|
0.0836(lbs); 0.038
|
| 040. |
6C04036660
|
[1] |
SPRING,RETURN
|
0.0220(lbs); 0.010
|
| 050. |
0461300090
|
[2] |
CIRCLIP,EXT
|
0.0000(lbs); 0.000
|
| 060. |
6C04036670
|
[1] |
POPPET
|
0.0264(lbs); 0.012
|
| 070. |
6C04036680
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 080. |
0481000090
|
[2] |
O-RING
|
0.0022(lbs); 0.001
|
| 090. |
6C04036690
|
[1] |
PLUG
|
0.0440(lbs); 0.020
|
| 100. |
4810038320
|
[1] |
POPPET
|
0.0308(lbs); 0.014
|
| 110. |
4810038330
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 120. |
6C04036710
|
[1] |
PLUG
|
0.0792(lbs); 0.036
|
| 130. |
6C04036720
|
[1] |
PLUG
|
0.0836(lbs); 0.038
|
| 140. |
0481706100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 150. |
6C04036730
|
[1] |
POPPET
|
0.0792(lbs); 0.036
|
| 160. |
6714836720
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 170. |
0481100050
|
[1] |
O-RING
|
0.0022(lbs); 0.001
|
| 180. |
0211250080
|
[2] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 190. |
3270136150
|
[2] |
PLUG
|
0.0110(lbs); 0.005
|
| 200. |
3242067380
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
