纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (10.210.AF[02]) - FUEL LINE & FUEL FILTER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
943 次

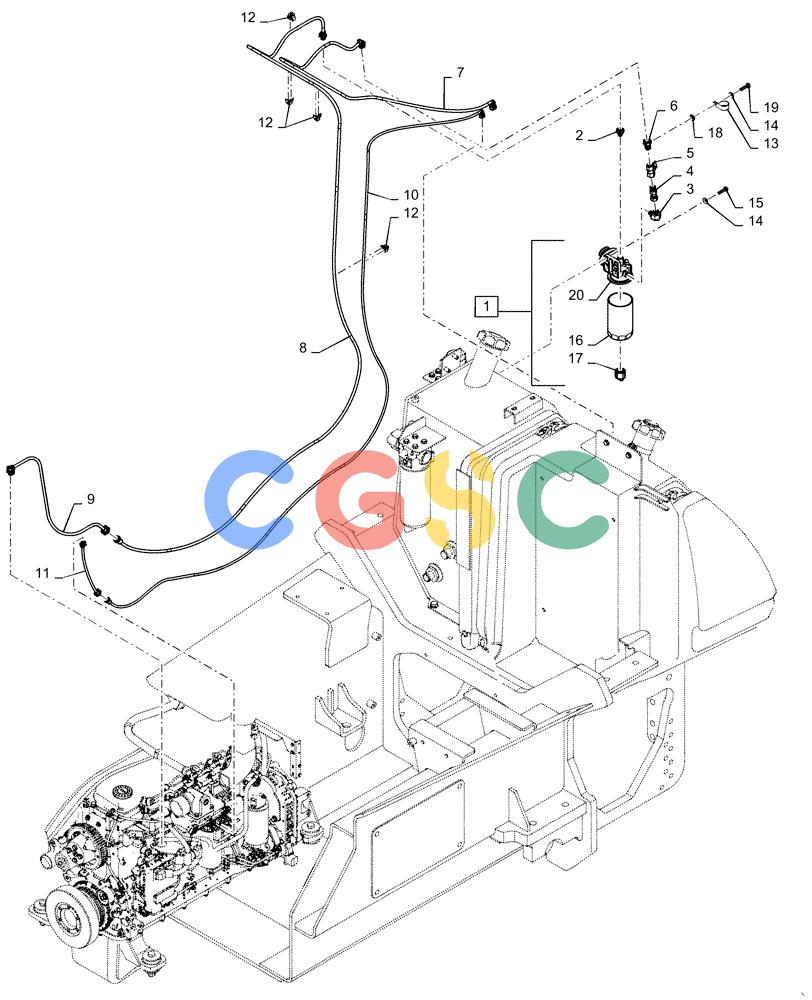

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84348875 | [1] | FILTER ASSY | KOBIncl 16, 17, 20 |
| 2. | 8602542 | [1] | ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID | FAR |
| 3. | 86579689 | [1] | ELBOW,90°, 13/16"-18 ORFS x M14 x 1.5 ORB | ZED |
| 4. | 84520680 | [1] | HYD CONNECTOR | BURSAE 8 13/16 - 16 UN |
| 5. | 86984713 | [1] | SHUT-OFF VALVE | BURFuel |
| 6. | 87270102 | [1] | FITTING,1/2" NPTF to Quick Connect | BN246 NG 12 To 1/2" NPTF |
| 7. | 47415597 | [1] | FUEL TUBE | BURTank To Filter |
| 8. | 47415599 | [1] | FUEL TUBE | BURPlastic/Rubber |
| 9. | 47360119 | [1] | FUEL TUBE | BURPlastic/Rubber |
| 10. | 47360121 | [1] | FUEL TUBE | BURPlastic/Rubber |
| 11. | 84590423 | [1] | FUEL TUBE | BURPlastic/Rubber |
| 12. | 84298475 | [13] | HOSE CLAMP | BURDual |
| 13. | 87573373 | [1] | CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type | GIClosed, 33.3mm Insul 3/8 Bolt |
| 14. | 87655046 | [4] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BURM10 x 10.65 x 23.0 x 2.2 Hts Boron |
| 15. | 120068 | [3] | BOLT,Hex, M10 x 40mm, Cl 8.8 | NH |
| 16. | 84348882 | [1] | FUEL FILTER | CAS |
| 17. | 87519307 | [1] | SENSOR | ZEDWater In Fuel |
| 18. | 363082R1 | [1] | SPACER,3/8" Pipe x .656" | IH |
| 19. | 325829 | [1] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8 | NH Superseded by part number: 56614 |
| 20. | 87705123 | [1] | FILTER HEAD | LECFuel Filter Head |
