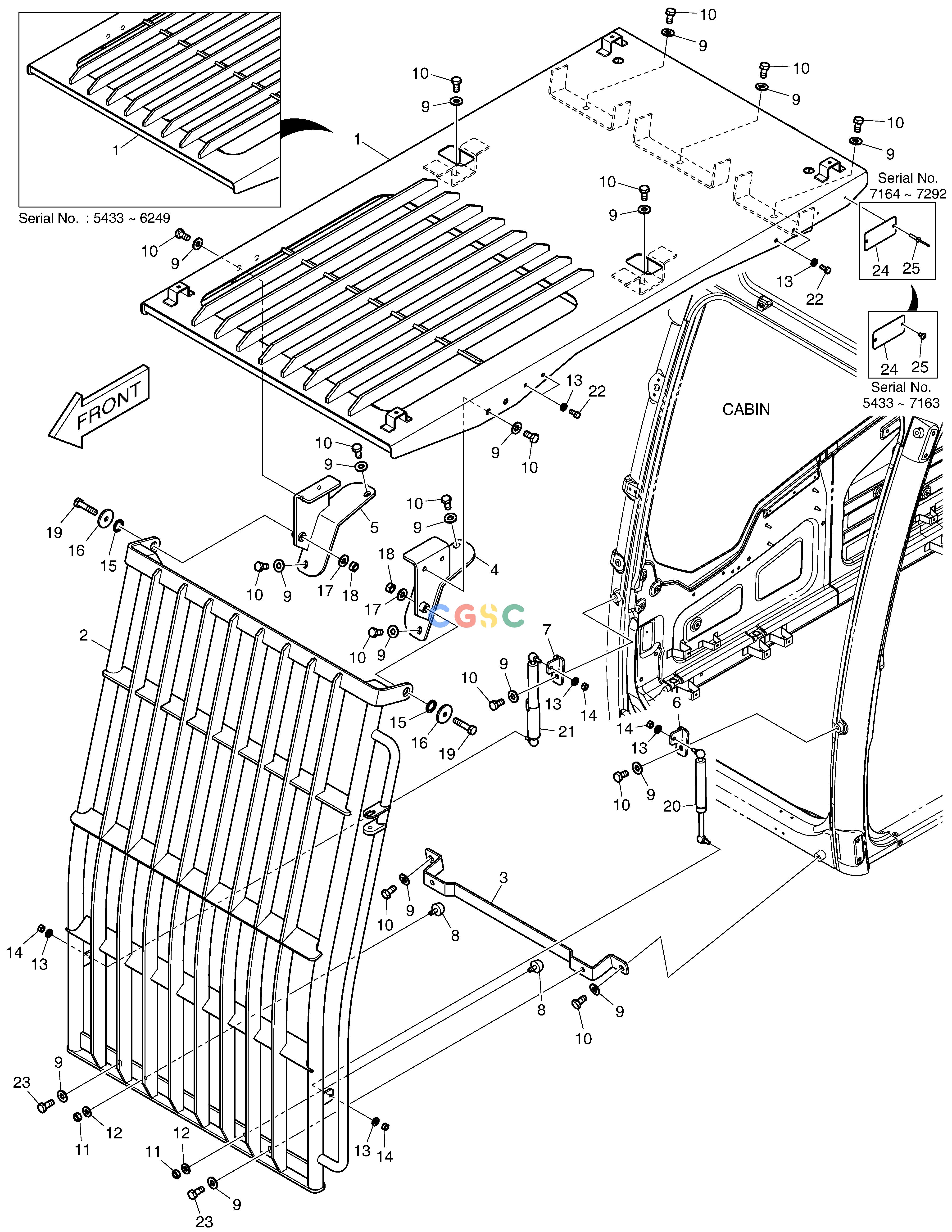

斗山零件查询FOGS GUARD ASS'Y DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002883A
|
[-] |
FOGS GUARD ASS'Y
|
|
| -. |
110921-01181
|
[-] |
|
|
| -. |
110921-01181A
|
[-] |
|
|
| -. |
110921-01181C
|
[-] |
|
|
| 1. |
K1002811A
|
[1] |
GUARD;ROOF
|
110921-01182
|
| 1. |
110921-01182
|
[1] |
GUARD;FOGS
|
110921-01182A
|
| 1. |
110921-01182A
|
[1] |
|
|
| 10. |
2120-2166D27
|
[17] |
BOLT
|
|
| 11. |
2121-1311D4
|
[2] |
NUT
|
|
| 12. |
2114-1898D1
|
[2] |
WASHER
|
|
| 13. |
2114-1898D2
|
[8] |
WASHER
|
|
| 14. |
2121-1311D2
|
[4] |
NUT
|
|
| 15. |
2114-1058D31
|
[2] |
WASHER
|
|
| 16. |
2114-1898D10
|
[2] |
WASHER M12
|
|
| 17. |
2114-1898D6
|
[2] |
WASHER
|
|
| 18. |
2121-1311D1
|
[2] |
NUT
|
|
| 19. |
S0515766
|
[2] |
BOLT M12X1.75X55
|
|
| 2. |
K1002846
|
[1] |
GUARD;FRONT
|
220103-00574
|
| 2. |
220103-00574
|
[1] |
|
|
| 20. |
K1005823
|
[1] |
CYLINDER;GAS
|
|
| 21. |
K1005822
|
[1] |
CYLINDER;GAS
|
|
| 22. |
2120-2166D5
|
[4] |
BOLT
|
|
| 23. |
2120-2166D32
|
[2] |
BOLT
|
|
| 24. |
K1007231A
|
[1] |
NAME;PLATE
|
|
| 24. |
950209-02452A
|
[1] |
|
|
| 25. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 25. |
2122-1002D2
|
[2] |
RIVET
|
|
| 3. |
K1002842A
|
[1] |
BRACKET
|
|
| 4. |
K1002838
|
[1] |
BRACKET(L.H)
|
|
| 5. |
K1002839A
|
[1] |
BRACKET(R.H)
|
|
| 6. |
K1002840
|
[1] |
BRACKET(L.H)
|
|
| 7. |
K1002841
|
[1] |
BRACKET(R.H)
|
|
| 8. |
161-00195
|
[2] |
STOPPER
|
|
| 9. |
2114-1898D17
|
[19] |
WASHER
|
|
