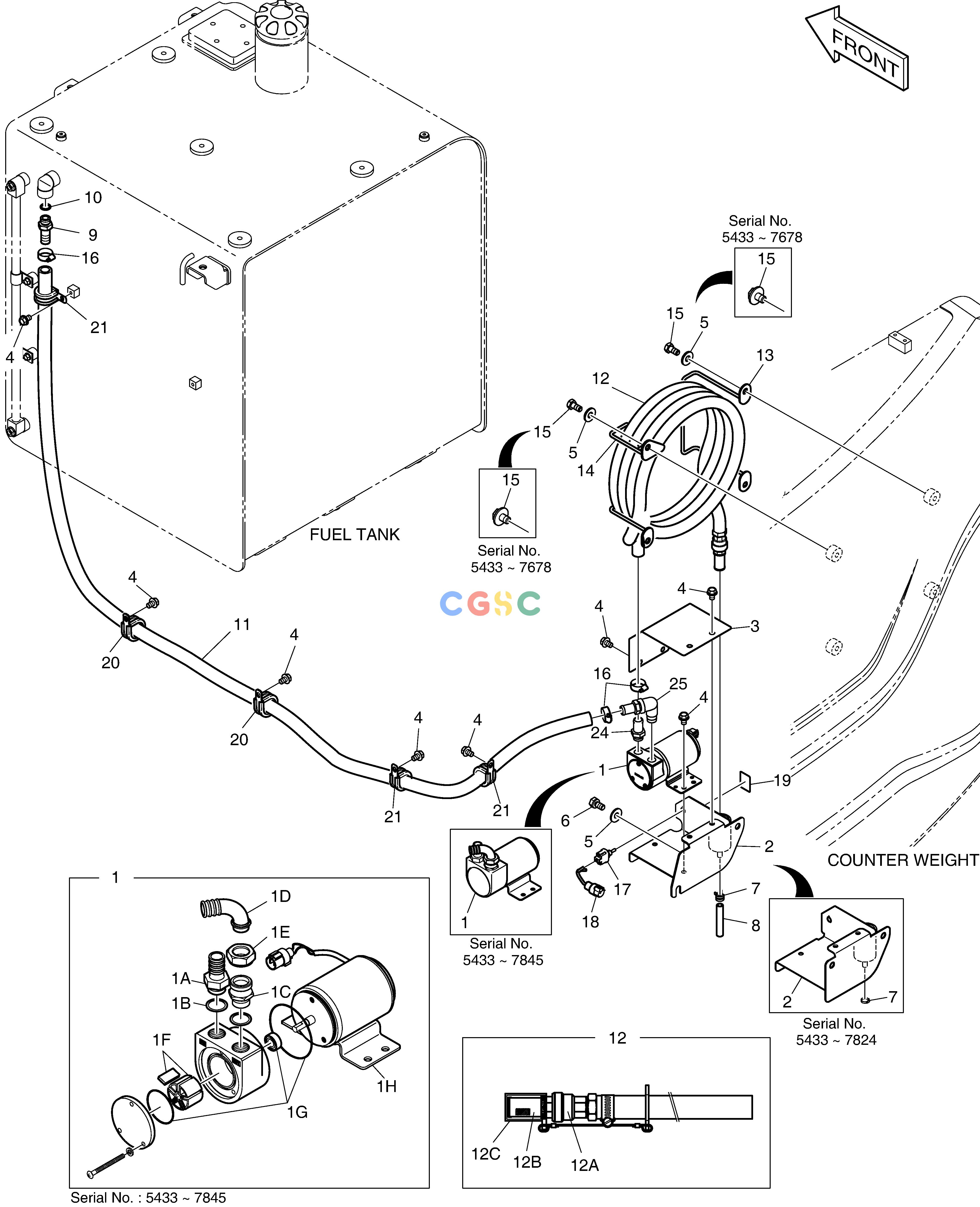

斗山零件查询FUEL FILLER PUMP DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1000378B
|
[-] |
FUEL FILLER PUMP ASS'Y
|
|
| -. |
400909-00073
|
[-] |
|
|
| 1. |
401-00449
|
[1] |
PUMP,FUEL TRANSFER
|
|
| 1. |
400909-00279
|
[1] |
|
|
| 10. |
S8000181
|
[1] |
O-RING
|
|
| 11. |
DS2079171
|
[1] |
HOSE
|
|
| 12. |
185-00167D3
|
[1] |
HOSE
|
|
| 12A. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 12B. |
2471-1152
|
[1] |
. STRAINER
|
|
| 12C. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 13. |
K1011080
|
[1] |
BRACKET
|
|
| 14. |
K1011081
|
[1] |
BRACKET
|
|
| 15. |
DS0025019
|
[4] |
BOLT
|
|
| 15. |
S0515066
|
[4] |
BOLT
|
|
| 16. |
S8470032
|
[3] |
CLAMP
|
|
| 17. |
549-00093
|
[1] |
. SWITCH
|
|
| 18. |
530-00214A
|
[1] |
. HARNESS;JOINT
|
|
| 19. |
190-01172
|
[1] |
PLATE,NAME
|
|
| 1A. |
2181-2755B
|
[1] |
. ADAPTER
|
|
| 1B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 1C. |
181-00809
|
[1] |
. ADAPTER
|
|
| 1D. |
181-00810
|
[1] |
. ELBOW
|
|
| 1E. |
121-00085
|
[1] |
. NUT
|
|
| 1F. |
407-00001
|
[1] |
. VANE KIT
|
|
| 1G. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 1H. |
523-00012
|
[1] |
. MOTOR
|
|
| 2. |
195-02662B
|
[1] |
BRACKET
|
|
| 2. |
110439-00018
|
[1] |
|
|
| 20. |
124-00208D6
|
[2] |
CLIP
|
|
| 21. |
124-00208D5
|
[3] |
CLIP
|
|
| 24. |
430201-01880
|
[1] |
|
|
| 25. |
430201-01881
|
[1] |
|
|
| 3. |
621-02739B
|
[1] |
COVER
|
|
| 4. |
K1001029
|
[11] |
BOLT
|
|
| 5. |
2114-1058D72
|
[2] |
WASHER
|
|
| 5. |
120804-00079
|
[6] |
WASHER
|
|
| 6. |
DS0025021
|
[2] |
BOLT
|
|
| 6. |
S0514866
|
[2] |
BOLT
|
|
| 7. |
S8470014
|
[1] |
CLAMP
|
|
| 7. |
DS2809004
|
[1] |
|
|
| 8. |
DS2079153
|
[1] |
HOSE
|
DS2105005
|
| 8. |
DS2105005
|
[1] |
HOSE
|
|
| 8. |
DS2105146
|
[1] |
HOSE
|
|
| 9. |
2181-2104D6
|
[1] |
ADAPTER
|
|
