神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (01-027[01]) - AIR COMPRESSOR GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
373 次

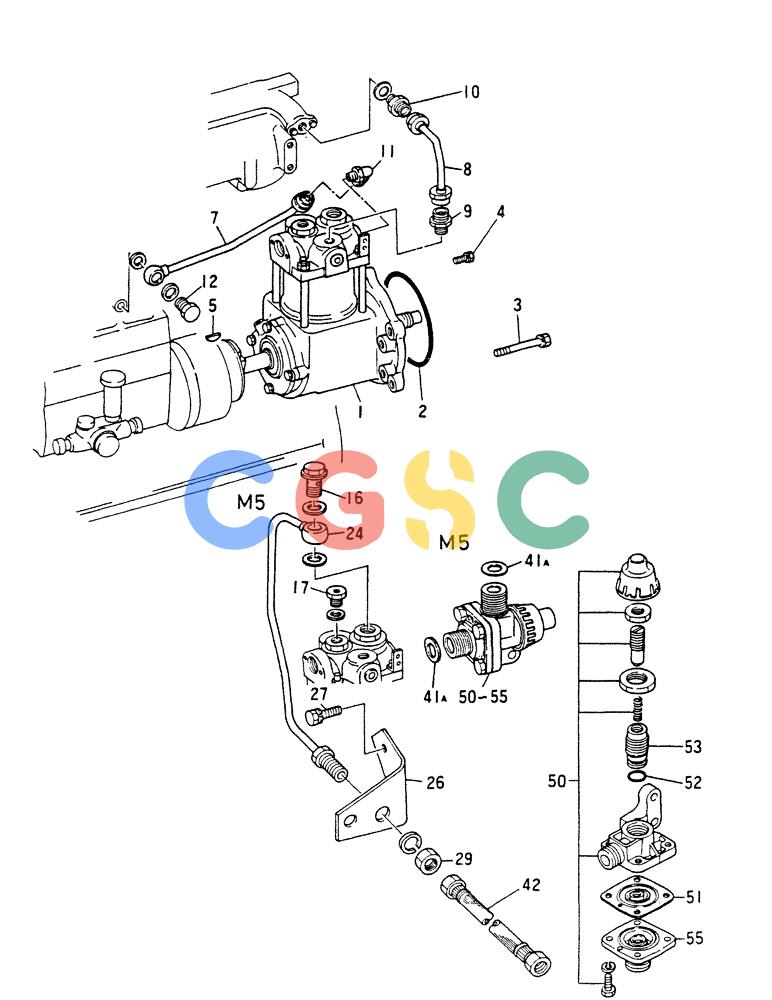

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS09 | [1] | AIR COMPRESSOR GENERAL(M5) | |
| . . | 6D221CT-KS04 | [1] | AIR COMPRESSOR GENERAL(M5) | |
| . . | 6D221CT-KS01 | [1] | AIR COMPRESSOR GENERAL(M5) | |
| 1. | VAME057068 | [1] | AIR COMPRESSOR ASSY AIR COMPRESSOR ASSY | AIR COMPRESSOR ASSY AIR COMPRESSOR ASSY |
| 2. | VA3127574400 | [1] | O-RING | KOBO-RING Superseded by part number: VAME093522 |
| 3. | VAMF300859 | [5] | BOLT BOLT,W/WSR 10X90 | BOLT BOLT,W/WSR 10X90 |
| 4. | VAMF300843 | [1] | SCREW | KOBBOLT,W/WSR 10X25 Superseded by part number: 133250A1 |
| 5. | VAMS476136 | [1] | WOODRUFF KEY | KOBKEY,WOODRUFF 5X22 |
| 7. | VAME059824 | [1] | RIGID TUBE | KOBPIPE,WATER INLET |
| 8. | VAME057011 | [1] | PIPE WATER OUTLET PIPE,WATER OUTLET | PIPE WATER OUTLET PIPE,WATER OUTLET |
| 9. | VAMH037507 | [1] | CONNECTOR CONNECTOR | CONNECTOR CONNECTOR |
| 10. | VAMH037453 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| . . | VAMF660065 | [1] | GASKET | KOBGASKET 14 |
| 11. | VAMH037432 | [1] | ELBOW | KOBELBOW |
| 12. | VAMF650115 | [1] | SPECIAL BOLT | KOBBOLT,EYE 16 |
| . . | VAMF660066 | [2] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 13. | VAMH038913 | [1] | CONNECTOR CONNECTOR | CONNECTOR CONNECTOR |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 14. | VA3004626602 | [1] | HOSE | KOBELBOW,RUBBER Superseded by part number: 240077A1 |
| 15. | VAMF661016 | [2] | CLAMP | KOBCLAMP,HOSE 30 Superseded by part number: VAMK073732 |
| 16. | VA3097506600 | [1] | BOLT | KOBBOLT,EYE |
| . . | VAMH035161 | [2] | GASKET | KOBGASKET 24 Superseded by part number: 132640A1 |
| 17. | VA3097591600 | [1] | CONNECTOR | |
| . . | VAMH035160 | [1] | GASKET | KOBGASKET 18 Superseded by part number: 132639A1 |
| 19. | VAME059930 | [1] | SUCTION PIPE | KOBPIPE,AIR SUCTION |
| 20A. | VAMF477028 | [3] | CLIP 20 | |
| 21A. | VAMF240029 | [1] | SCREW | KOBBOLT,W/WSR 6X25 |
| 22. | VAMH023246 | [2] | STAY | |
| 22A. | VAMH005027 | [2] | WASHER | KOBWASHER |
| 22B. | VAMS456706 | [1] | SPACER L=16 | |
| 23. | VAMF240026 | [2] | BOLT BOLT,W/WSR 6X18 | BOLT BOLT,W/WSR 6X18 |
| 24. | VAME059910 | [1] | PIPE AIR OUTLE PIPE,AIR OUTLET | PIPE AIR OUTLE PIPE,AIR OUTLET |
| 26. | VAME059801 | [1] | BRACKET BRACKET | BRACKET BRACKET |
| 27. | VAMF300870 | [2] | BOLT | KOBB0LT,W/WSR 12X35 |
| 29. | VAMF430731 | [1] | NUT | KOBNUT 20 Superseded by part number: 132633A1 |
| . . | VAMF450411 | [1] | WASHER | KOBWASHER,SPG 20 Superseded by part number: 132621A1 |
| 41A. | VAMH035004 | [1] | GASKET GASKET 8 | GASKET GASKET 8 |
| . . | VAMH035107 | [3] | GASKET | KOBGASKET 9 Superseded by part number: VAMH035195 |
| 42. | VAMH032863 | [1] | HOSE | KOBHOSE,AIR L = 380 |
| 50-55. | VAMC802148 | [1] | GOVERNOR | KOBPRESSURE GOVERNOR ASSY |
| 50. | NSS | [1] | NOT SOLD SEPARAT | CONBODY,PRESS.GOV |
| 51-55. | VAMC802151 | [1] | KIT, ENGINE TOP GASK | KOBPRESSURE GOVERNOR KIT Superseded by part number: 77268813, VA4087070100 |
| 51. | VAME705602 | [1] | DIAPHRAGM | KOBDIAPHRAGM |
| 52. | VAMC821656 | [1] | O-RING | |
| 53. | VAME705601 | [1] | SLEEVE | |
| 55. | VAME705603 | [1] | CAP | |
