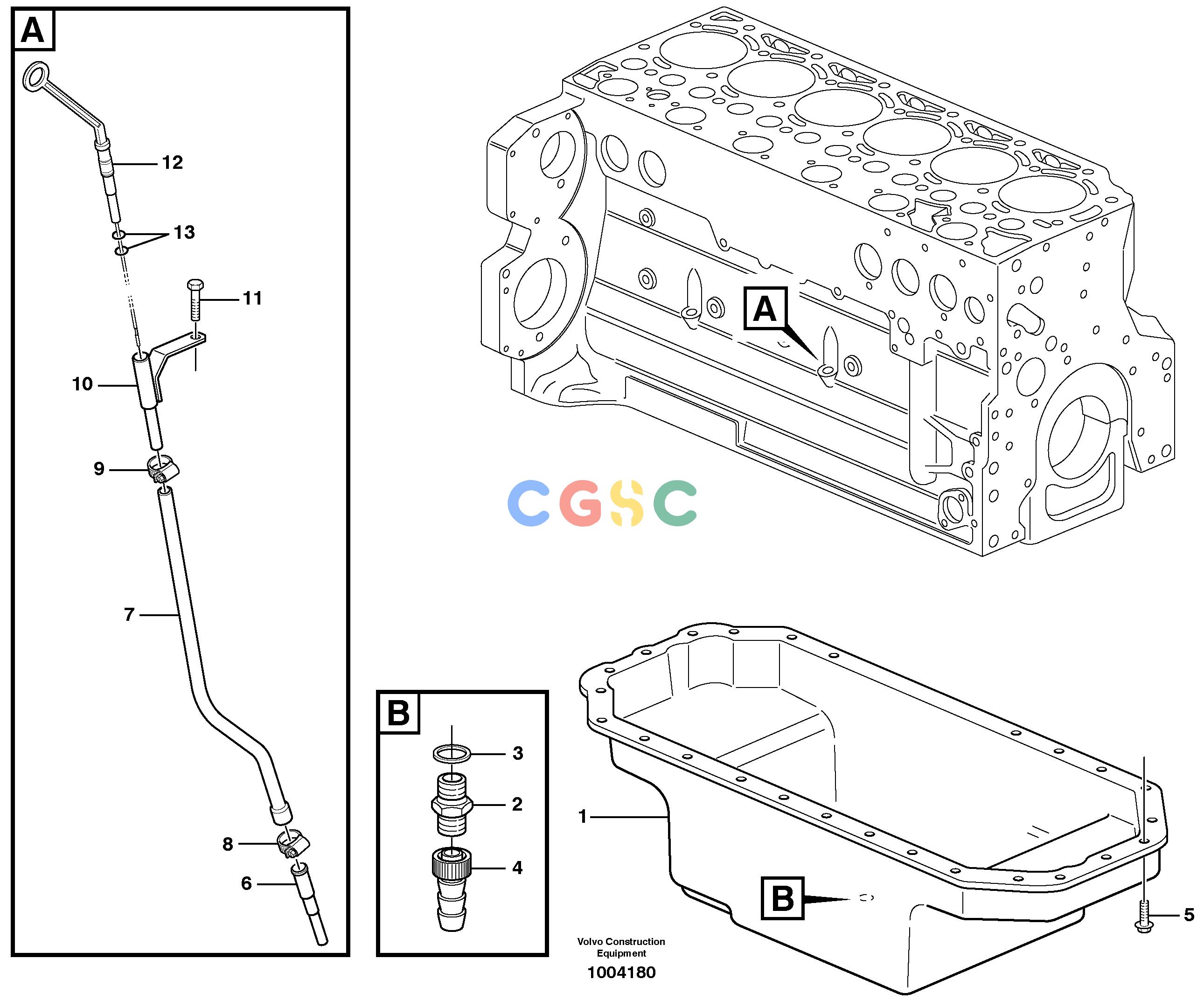

沃尔沃零件查询EC180B Oil sumpNone8278916-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20482783
|
[1] |
Oil pan
|
ENG - 01099344
|
| 1. |
VOE20840491
|
[1] |
Oil pan
|
ENG 01099345 -
|
| |
VOE20460022
|
[1] |
Gasket
|
|
| 2. |
VOE22879098
|
[1] |
Drain valve
|
|
| 3. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 4. |
VOE20478246
|
[1] |
Hose connection
|
|
| 5. |
VOE20405792
|
[28] |
Screw
|
|
| 6. |
VOE23091815
|
[1] |
Guide tube
|
|
| 7. |
VOE20482730
|
[1] |
Guide tube
|
|
| 8. |
VOE20460214
|
[1] |
Clip
|
|
| 9. |
VOE20460215
|
[1] |
Clip
|
|
| 10. |
VOE20482731
|
[1] |
Bracket
|
|
| 11. |
VOE20482732
|
[1] |
Bolt
|
|
| 12. |
VOE21928687
|
[1] |
Dipstick
|
|
| 13. |
VOE20460218
|
[2] |
O-ring
|
|
