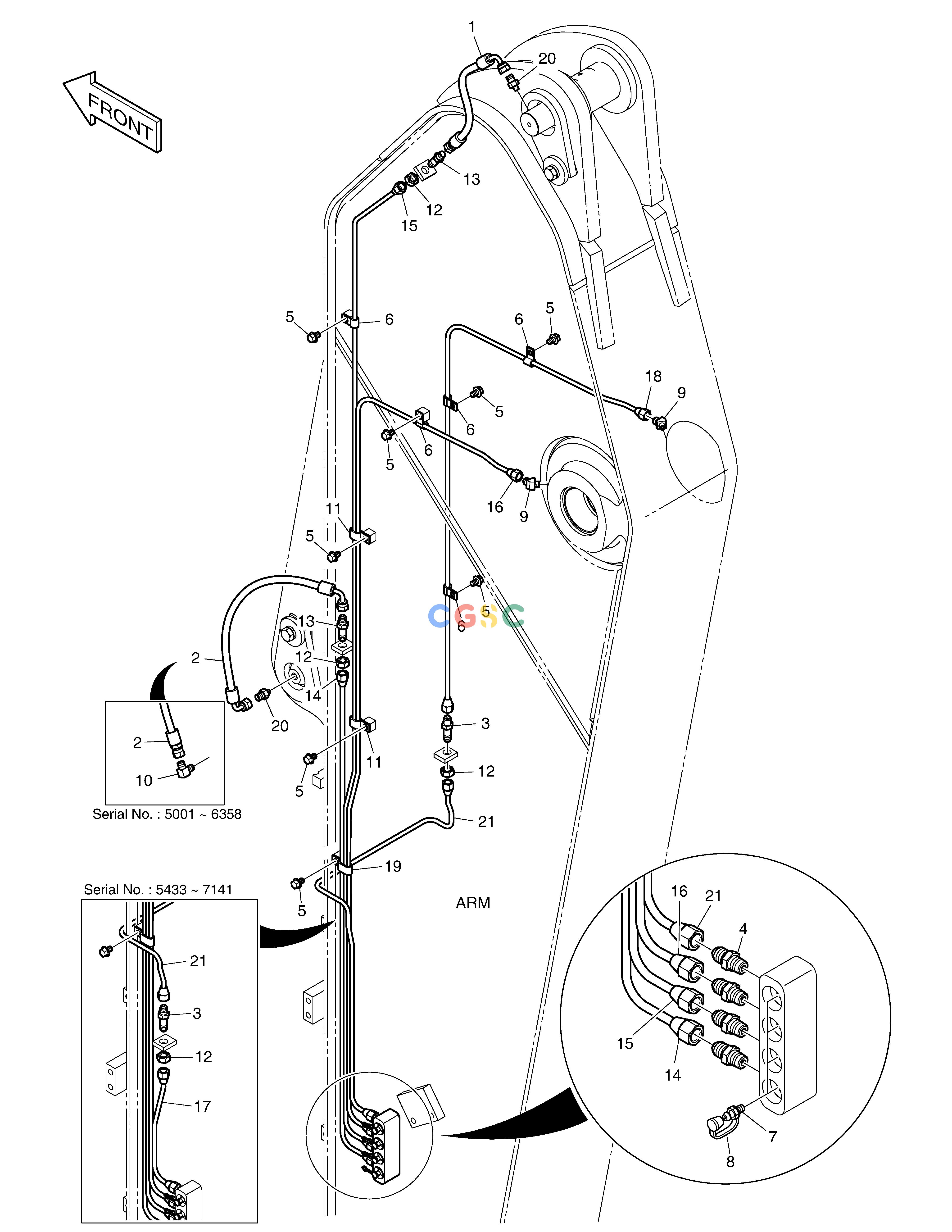

斗山零件查询LUBRICATION PIPING - ARM 3.5m DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
881 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1013379
|
[-] |
LUBRICATION PIPING
|
|
| -. |
420212-05312
|
[-] |
|
|
| 1. |
DS2055849
|
[1] |
HOSE
|
|
| 10. |
2181-1111D11
|
[1] |
ELBOW
|
|
| 11. |
DS2805007
|
[2] |
CLIP
|
|
| 12. |
S4032833
|
[4] |
NUT
|
|
| 12. |
S4032833
|
[3] |
NUT
|
|
| 13. |
2181-1923D12
|
[2] |
ADAPTER
|
|
| 14. |
K1010218
|
[1] |
PIPE
|
420205-00589
|
| 14. |
420205-00589
|
[1] |
|
|
| 15. |
K1013684
|
[1] |
PIPE
|
420205-00563
|
| 15. |
420205-00563
|
[1] |
|
|
| 16. |
K1013685
|
[1] |
PIPE
|
420205-00554
|
| 16. |
420205-00554
|
[1] |
|
|
| 17. |
K1010221
|
[1] |
PIPE
|
|
| 18. |
K1013686
|
[1] |
PIPE
|
420205-00553
|
| 18. |
420205-00553
|
[1] |
|
|
| 19. |
DS2805008
|
[1] |
CLIP
|
|
| 2. |
DS2055822
|
[1] |
HOSE
|
|
| 2. |
DS2059598
|
[1] |
|
|
| 20. |
2181-4112
|
[1] |
ADAPTER
|
|
| 20. |
2181-4112
|
[2] |
ADAPTER
|
|
| 21. |
K1013687
|
[1] |
PIPE
|
|
| 21. |
420205-00284
|
[1] |
|
420205-00284A
|
| 21. |
420205-00284A
|
[1] |
|
|
| 3. |
DS2225009
|
[2] |
ADAPTER
|
|
| 3. |
DS2225009
|
[1] |
ADAPTER
|
|
| 4. |
2181-1184
|
[4] |
ADAPTER
|
|
| 5. |
K1001029
|
[9] |
BOLT
|
|
| 6. |
DS2802023
|
[6] |
CLIP
|
|
| 7. |
S6710041
|
[4] |
NIPPLE,GREASE
|
|
| 8. |
160-00020
|
[4] |
CAP
|
|
| 9. |
K1000057
|
[2] |
ELBOW
|
|
| 9. |
K1010730
|
[2] |
ELBOW
|
|
