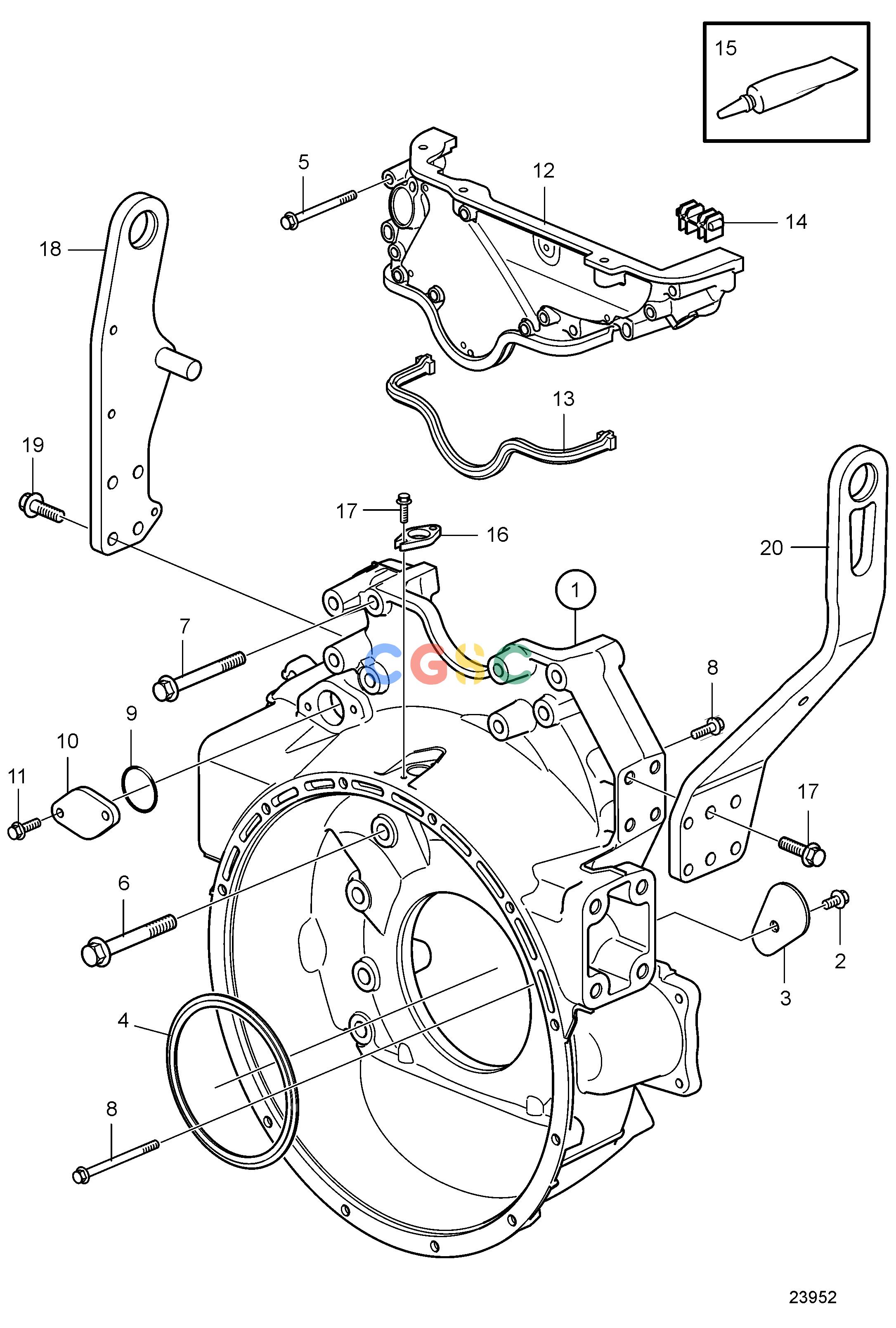

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)EngineFlywheel HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
883 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21393440
|
[1] |
Flywheel housing
|
|
| 2. |
984733
|
[1] |
Flange screw
|
|
| 3. |
3849378
|
[1] |
Cover plate
|
|
| 4. |
8148259
|
[1] |
Crankshaft seal
|
|
| 5. |
969189
|
[5] |
Flange screw
|
L=85mm
|
| 6. |
966367
|
[6] |
Flange screw
|
L=100mm
|
| 6. |
966369
|
[1] |
Flange screw
|
L=120mm
|
| 7. |
965197
|
[4] |
Flange screw
|
L=100mm
|
| 8. |
984734
|
[6] |
Flange screw
|
L=20mm
|
| 8. |
975199
|
[2] |
Flange screw
|
L=35mm
|
| 8. |
975192
|
[1] |
Flange screw
|
L=100mm
|
| 9. |
948610
|
[1] |
O-ring
|
|
| 10. |
3884277
|
[1] |
Cover
|
|
| 11. |
984735
|
[2] |
Flange screw
|
|
| 12. |
20764595
|
[1] |
Timing gear cover
|
|
| 13. |
20817742
|
[1] |
Gasket
|
|
| 14. |
20572441
|
[2] |
Gasket
|
|
| 15. |
1161277
|
[1] |
Sealant
|
20g
|
| 16. |
3885657
|
[1] |
Shim
|
|
| 17. |
984726
|
[2] |
Flange screw
|
|
| 18. |
3589187
|
[1] |
Lifting eye
|
P
|
| 19. |
990809
|
[8] |
Flange screw
|
|
| 20. |
3586761
|
[1] |
Lifting eye
|
S.B
|
