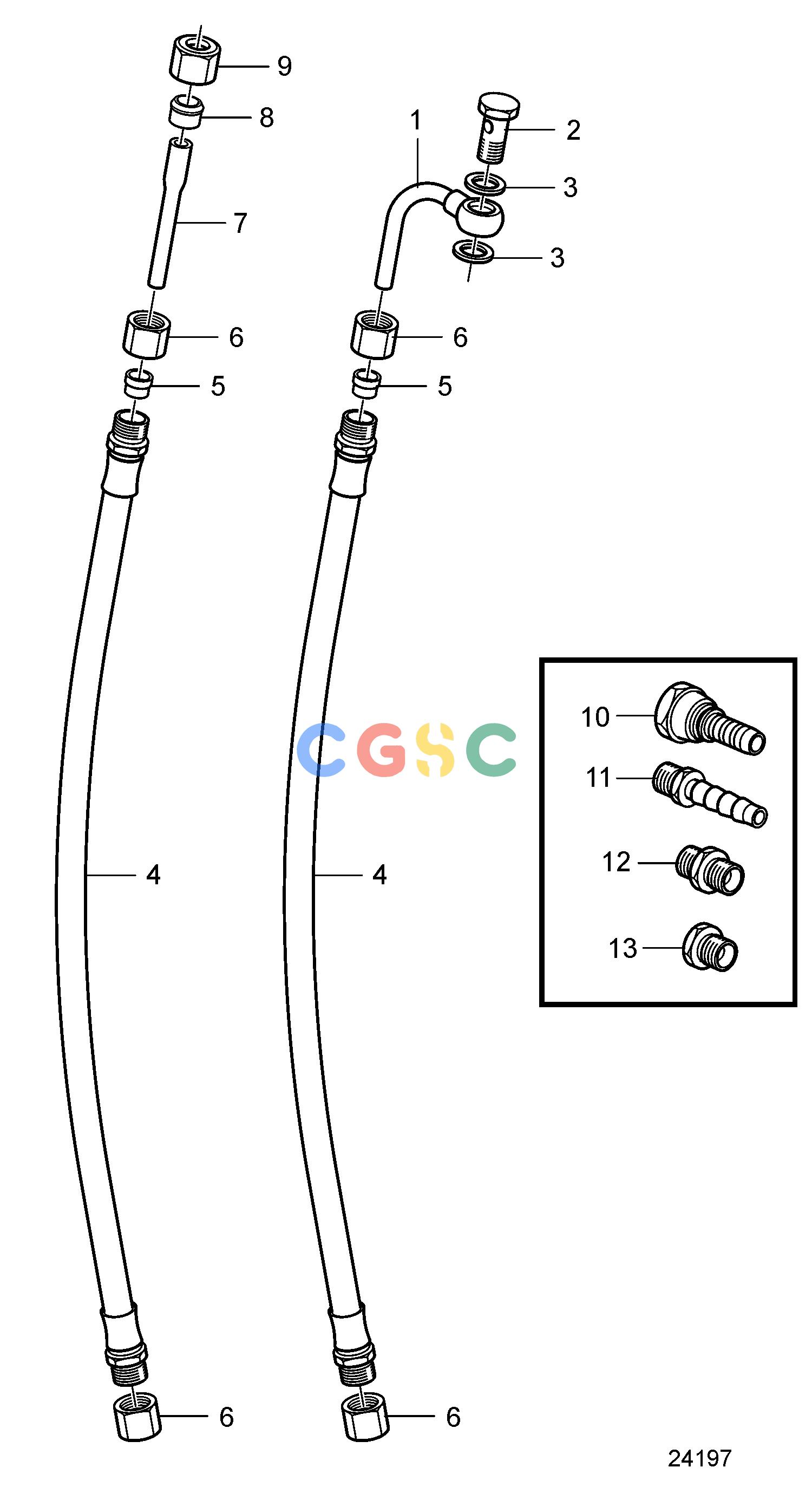

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Fuel SystemFlexible Fuel HoseEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
276 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3586369
|
[1] |
Fuel pipe
|
|
| 2. |
996505
|
[1] |
Hollow screw
|
|
| 3. |
11998
|
[2] |
Gasket
|
|
| 4. |
865737
|
[2] |
Fuel hose
|
|
| 5. |
980781
|
[2] |
Ferrule
|
|
| 6. |
956983
|
[5] |
Fitting nut
|
|
| 7. |
3831133
|
[1] |
Fuel pipe
|
|
| 8. |
980782
|
[1] |
Ferrule
|
|
| 9. |
956984
|
[1] |
Fitting nut
|
|
| 10. |
3829292
|
[1] |
Nipple
|
M16x1,5
|
| 11. |
3825000
|
[1] |
Hose nipple
|
1/4-18NPTF
|
| 12. |
977677
|
[1] |
Nipple
|
M16x1,5 / 1/4-18 NPTF
|
| 13. |
22753
|
[1] |
Nipple
|
M18x1,5
|
