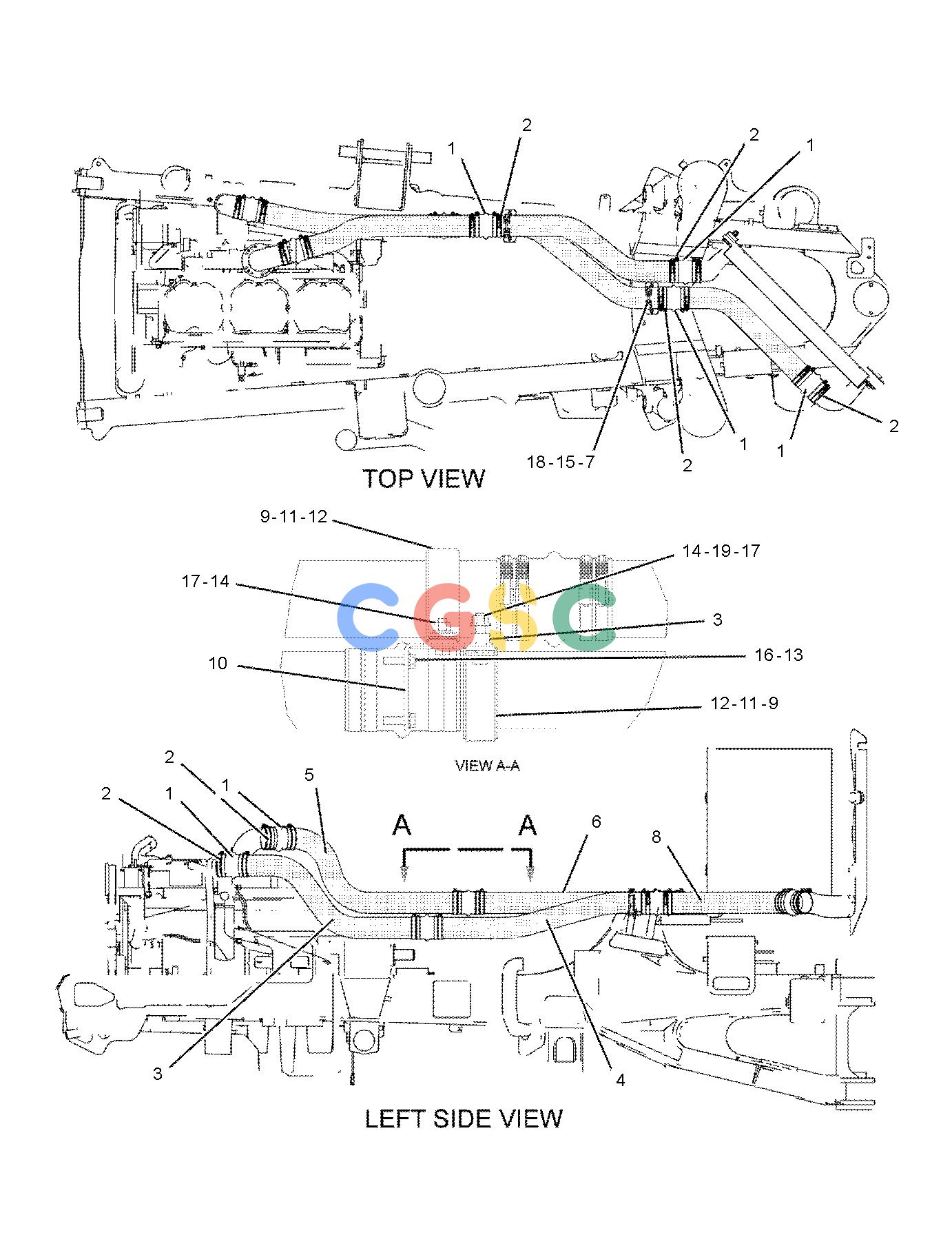

卡特零件查询（725） 158-4913: LINES GP-AIR
广数供应链运营团队, 14 02月, 2025，浏览：
124 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7E-8630 | [7] | HOSE-AIR INLET | |
| 2. | 9X-2201 | [28] | CLAMP-HOSE | |
| 3. | 166-9907 | [1] | TUBE | |
| 4. | 166-9908 | [1] | TUBE | |
| 5. | 166-9909 | [1] | TUBE | |
| 6. | 166-9910 | [1] | TUBE | |
| 7. | 174-1680 | [1] | CLAMP | |
| 8. | 186-3103 | [1] | TUBE | |
| 9. | 217-7742 | [2] | GROMMET | |
| 10. | 255-3336 | [1] | ANGLE AS | |
| 11. | 7X-7910 | [2] | CLIP(SLOT) | |
| 12. | 7X-7911 | [2] | CLIP(TAB) | |
| 13. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 15. | 8T-4189M | [2] | BOLT(M8X1.25X20-MM) | |
| 16. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 17. | 8T-4223 | [3] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 18. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 8T-4244M | [1] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
