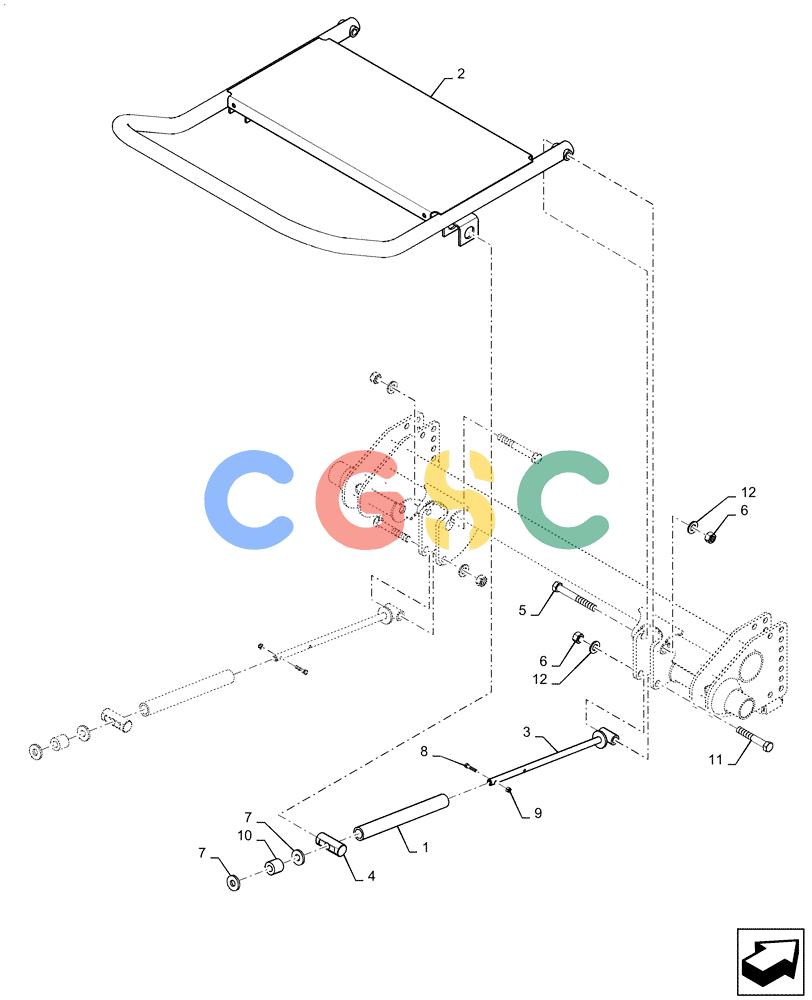

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (70.280.AB[01]) - VAR - 726809 - BALE EJECTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87022949
|
[2] |
SPRING,Compression, 41.27mm OD x 505mm L
|
PA
|
| 2. |
87045725
|
[1] |
EJECTOR
|
PA
Bale
|
| 3. |
87028071
|
[2] |
ROD ASSY.
|
PA
|
| 4. |
87028069
|
[2] |
PIN
|
PA
|
| 5. |
86508735
|
[2] |
BOLT,Hex, 3/4" - 10 x 6", Gr 8
|
BAS
Superseded by part number: 426-1296
|
| 6. |
280954
|
[4] |
NUT,3/4"-10, G5
|
NH
|
| 7. |
87040148
|
[4] |
WASHER,19.81mm ID x 47.497mm OD x 6.35mm Thk
|
PA
|
| 8. |
86514369
|
[2] |
BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8
|
ZED
|
| 9. |
86629544
|
[2] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 10. |
86562970
|
[2] |
BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L
|
NH
Rubber
|
| 11. |
281011
|
[2] |
BOLT,Hex, 3/4" - 10 x 4 3/4", Gr 5
|
BEL
|
| 12. |
394632
|
[4] |
WASHER,21mm ID x 40mm OD x 4mm Thk
|
NH
|
