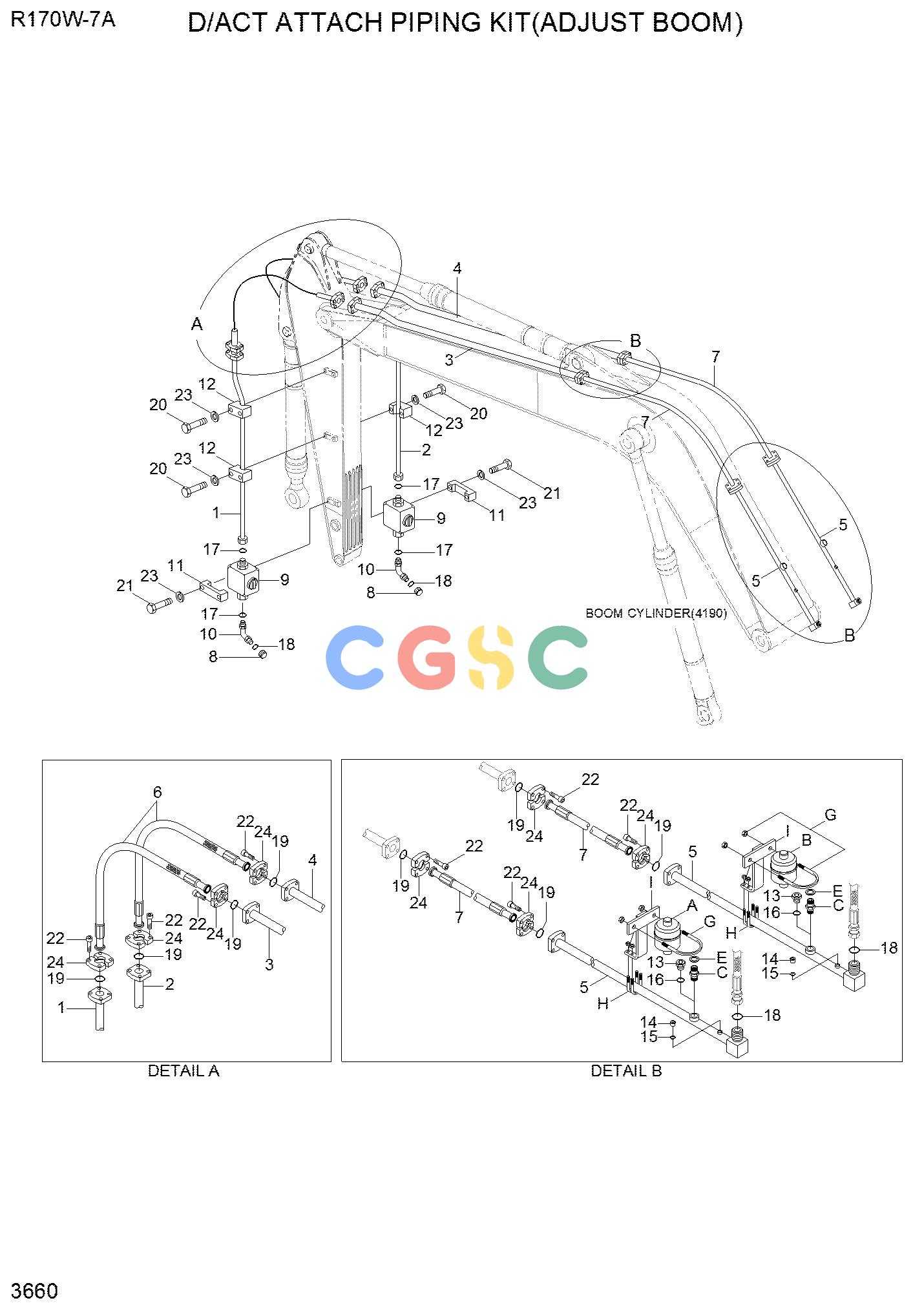

现代零件查询R170W-7A D/ACT ATTACH PIPING KIT(ADJUST BOOM)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |
ADJ/BM PIPING KIT
|
|
| -12. |
31N5-91371
|
[1] |
ATTACH PIPING KIT
|
|
| -12. |
31N5-91361
|
[1] |
ATTACH PIPING KIT
|
|
| -12. |
31N5-91381
|
[1] |
ATTACH PIPING KIT
|
|
| 1. |
31N5-90631
|
[1] |
PIPE ASSY
|
|
| 1. |
31N5-90582
|
[1] |
PIPE ASSY
|
|
| 1. |
31N5-90651
|
[1] |
PIPE ASSY
|
|
| 2. |
31N5-90641
|
[1] |
PIPE ASSY
|
|
| 2. |
31N5-90592
|
[1] |
PIPE ASSY
|
|
| 2. |
31N5-90661
|
[1] |
PIPE ASSY
|
|
| 3. |
31N5-90670
|
[1] |
PIPE ASSY
|
|
| 4. |
31N5-90680
|
[1] |
PIPE ASSY
|
|
| 5. |
31N5-90690
|
[2] |
PIPE ASSY
|
|
| 6. |
P703-167334
|
[2] |
HOSE ASSY-FLG 0X90
|
|
| 7. |
P680-166323
|
[2] |
HOSE ASSY-FLG 0X0
|
|
| 8. |
X710-100106
|
[2] |
CAP-HYD,ORFS
|
|
| 9. |
31N6-97010
|
[2] |
VALVE-STOP
|
|
| 10. |
X530-110005
|
[2] |
ELBOW-45,ORFS
|
|
| 11. |
31EG-91350
|
[2] |
CLAMP-STOP VALVE
|
|
| 12. |
31EG-91390
|
[2] |
CLAMP-PIPE
|
|
| 12. |
31EG-91390
|
[4] |
CLAMP-PIPE
|
|
| 12. |
31EG-91390
|
[6] |
CLAMP-PIPE
|
|
| 13. |
P220-110205
|
[2] |
PLUG
|
|
| 14. |
31EK-11130
|
[2] |
COUPLING-SCREW
|
|
| 15. |
S631-011004
|
[2] |
O-RING
|
|
| 16. |
S631-024004
|
[2] |
O-RING
|
|
| 17. |
S631-029004
|
[4] |
O-RING
|
|
| 18. |
S621-021001
|
[4] |
O-RING
|
|
| 19. |
Y171-024004
|
[8] |
O-RING
|
|
| 20. |
S017-120606
|
[4] |
BOLT-HEX
|
|
| 20. |
S017-120606
|
[8] |
BOLT-HEX
|
|
| 20. |
S017-120606
|
[12] |
BOLT-HEX
|
|
| 21. |
S017-120706
|
[4] |
BOLT-HEX
|
|
| 22. |
S109-100406
|
[32] |
BOLT-SOCKET
|
|
| 23. |
P392-220000
|
[8] |
WASHER-COPPER
|
|
| 23. |
S411-120006
|
[12] |
WASHER-SPRING
|
|
| 23. |
S411-120006
|
[16] |
WASHER-SPRING
|
|
| 24. |
P173-160104
|
[8] |
FLANGE-HYD,SPLIT
|
|
