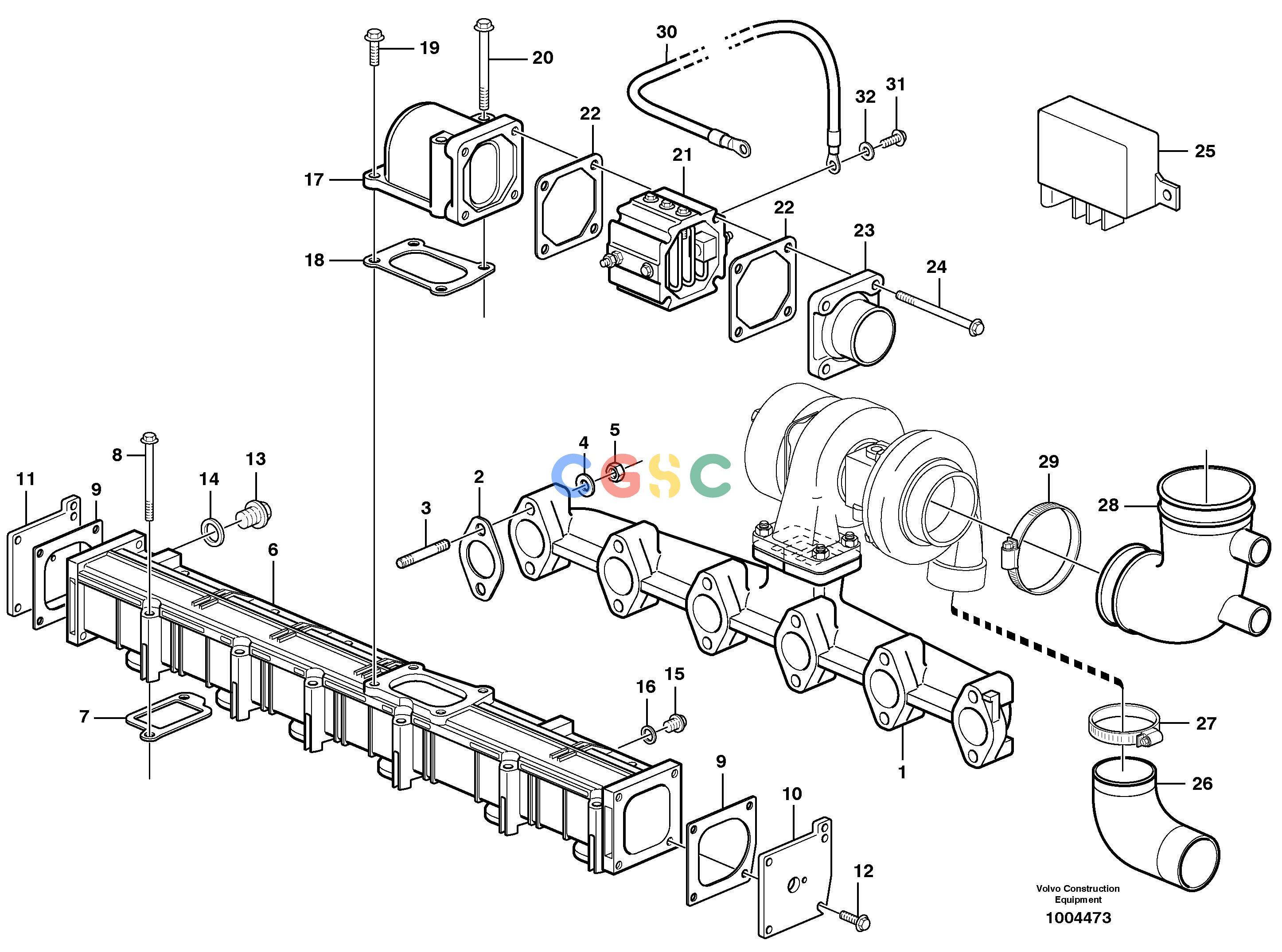

沃尔沃零件查询EC180B Inlet manifold and exhaust manifoldNone8278916-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
307 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE22857648
|
[1] |
Exhaust Pipe
|
|
| 2. |
VOE20557208
|
[6] |
Gasket
|
|
| 3. |
VOE22819604
|
[12] |
Stud
|
|
| 4. |
VOE20799731
|
[12] |
Washer
|
|
| 5. |
VOE20505959
|
[12] |
Hexagon nut
|
|
| 6. |
VOE20496558
|
[1] |
Tube
|
ENG - 931183
|
| |
VOE20738870
|
[1] |
Charge Air Pipe
|
ENG - 904322, 977838 -
|
| |
VOE20565883
|
[1] |
Charge air pipe
|
ENG 904323 - 977837
|
| 7. |
VOE21815244
|
[6] |
Gasket
|
ENG - 904322, 977838 -
|
| |
VOE21815244
|
[4] |
Gasket
|
ENG 904323 - 977837
|
| 8. |
VOE20459830
|
[12] |
Screw
|
ENG - 904322, 977838 -
|
| |
VOE22278501
|
[4] |
Hexagon screw
|
ENG 904323 - 977837
|
| |
VOE20459830
|
[4] |
Screw
|
ENG 904323 - 977837
|
| 9. |
VOE20459226
|
[2] |
Gasket
|
|
| 10. |
VOE20459892
|
[1] |
Cover
|
|
| 11. |
VOE20459891
|
[1] |
Cover
|
|
| 12. |
VOE20459228
|
[4] |
Bolt
|
|
| 13. |
VOE20450895
|
[1] |
Plug
|
|
| 14. |
VOE13947281
|
[1] |
Gasket
|
|
| 15. |
VOE20451012
|
[1] |
Screw
|
|
| 16. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 17. |
VOE20460126
|
[1] |
Elbow
|
|
| 18. |
VOE20460122
|
[1] |
Gasket
|
|
| 19. |
VOE20405504
|
[2] |
Screw
|
|
| 20. |
VOE20460124
|
[2] |
Screw
|
|
| 21. |
VOE20758403
|
[1] |
Heater
|
|
| 22. |
VOE20531832
|
[2] |
Gasket
|
|
| 23. |
VOE20555488
|
[1] |
Hose Nipple
|
|
| 24. |
VOE20460123
|
[4] |
Screw
|
|
| 25. |
VOE20715645
|
[1] |
Relay
|
SER NO - 950912
|
| |
VOE20715645
|
[1] |
Relay
|
SER NO 950913 -
|
| 26. |
VOE20459250
|
[1] |
Charge air pipe
|
|
| 27. |
VOE943482
|
[2] |
Hose clamp
|
|
| 28. |
VOE20459248
|
[1] |
Manifold
|
|
| 29. |
VOE20412379
|
[1] |
Clip
|
|
| 30. |
VOE20498532
|
[1] |
Cable
|
|
| 31. |
VOE20405898
|
[2] |
Screw
|
|
| 32. |
VOE17223972
|
[1] |
Washer
|
|
