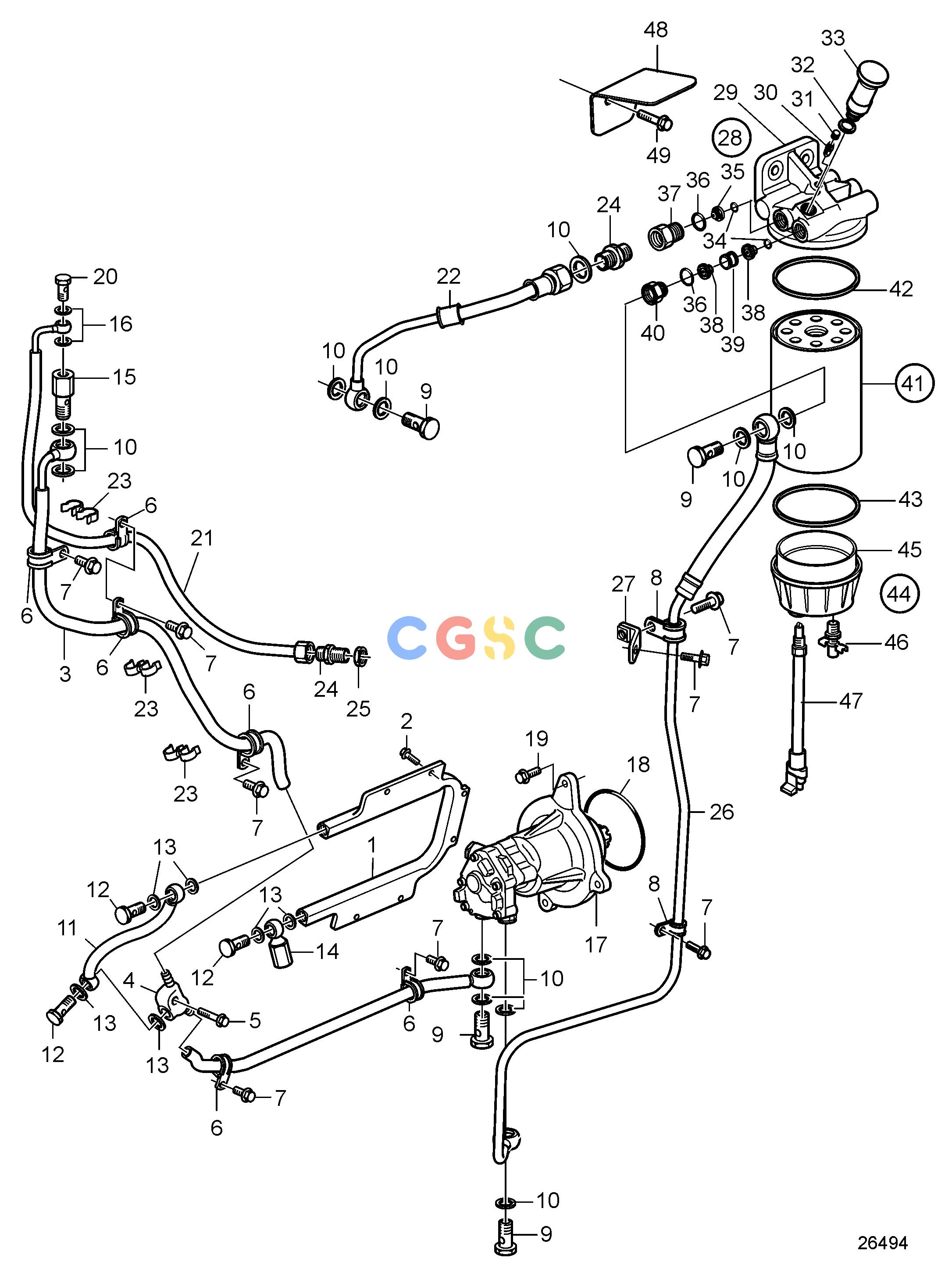

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Fuel SystemFuel System and Fuel Filter IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
20562394
|
[1] |
Radiator
|
|
| 2. |
975979
|
[6] |
Six point socket scr
|
|
| 3. |
3883149
|
[1] |
Fuel hose
|
|
| 4. |
|
|
|
|
| 5. |
984738
|
[1] |
Flange screw
|
|
| 6. |
984943
|
[5] |
Clamp
|
|
| 7. |
984733
|
[8] |
Flange screw
|
|
| 8. |
990178
|
[2] |
Attaching clamp
|
|
| 9. |
941686
|
[4] |
Hollow screw
|
|
| 10. |
982724
|
[11] |
Gasket
|
|
| 11. |
3883148
|
[1] |
Fuel hose
|
|
| 12. |
991048
|
[3] |
Hollow screw
|
|
| 13. |
982723
|
[6] |
Gasket
|
|
| 14. |
3828976
|
[1] |
Non-return valve
|
|
| 15. |
20450468
|
[1] |
Overflow valve
|
|
| 16. |
982721
|
[2] |
Gasket
|
|
| 17. |
21639413
|
[1] |
Fuel pump
|
|
| 18. |
977030
|
[1] |
O-ring
|
|
| 19. |
975199
|
[3] |
Flange screw
|
|
| 20. |
48634
|
[1] |
Hollow screw
|
|
| 21. |
3889777
|
[1] |
Air vent pipe
|
|
| 22. |
3889039
|
[1] |
Fuel hose
|
|
| 23. |
3121512
|
[3] |
Retainer
|
|
| 24. |
963948
|
[1] |
Nipple
|
|
| 25. |
957019
|
[1] |
Hexagon nut
|
|
| 26. |
21868355
|
[1] |
Fuel pipe
|
IPS
|
| 26. |
3883150
|
[1] |
Fuel hose
|
Inboard
|
| 27. |
21503089
|
[1] |
Bracket
|
|
| 28. |
21303231
|
[1] |
Fuel filter housing
|
|
| 29. |
|
|
|
|
| 30. |
20548012
|
[1] |
Faucet, air venting
|
|
| 31. |
20547976
|
[1] |
Protecting cover
|
|
| 32. |
947622
|
[1] |
Gasket
|
|
| 33. |
3837393
|
[1] |
Hand pump
|
|
| 34. |
976971
|
[2] |
O-ring
|
|
| 35. |
21113993
|
[1] |
Non-return valve
|
|
| 36. |
1526474
|
[2] |
O-ring
|
|
| 37. |
21140340
|
[1] |
Nipple
|
|
| 38. |
244834
|
[2] |
Non-return valve
|
|
| 39. |
3964717
|
[1] |
Spacer sleeve
|
|
| 40. |
8148328
|
[1] |
Nipple
|
|
| 41. |
3809721
|
[1] |
Fuel filter insert
|
|
| 42. |
|
|
|
|
| 43. |
|
|
|
|
| 44. |
21283474
|
[1] |
Bowl
|
|
| 45. |
|
|
|
|
| 46. |
21279867
|
[1] |
Drain valve
|
|
| 47. |
3885070
|
[1] |
Sensor
|
|
| 48. |
3841779
|
[1] |
Bracket
|
|
| 49. |
990862
|
[1] |
Flange screw
|
|
