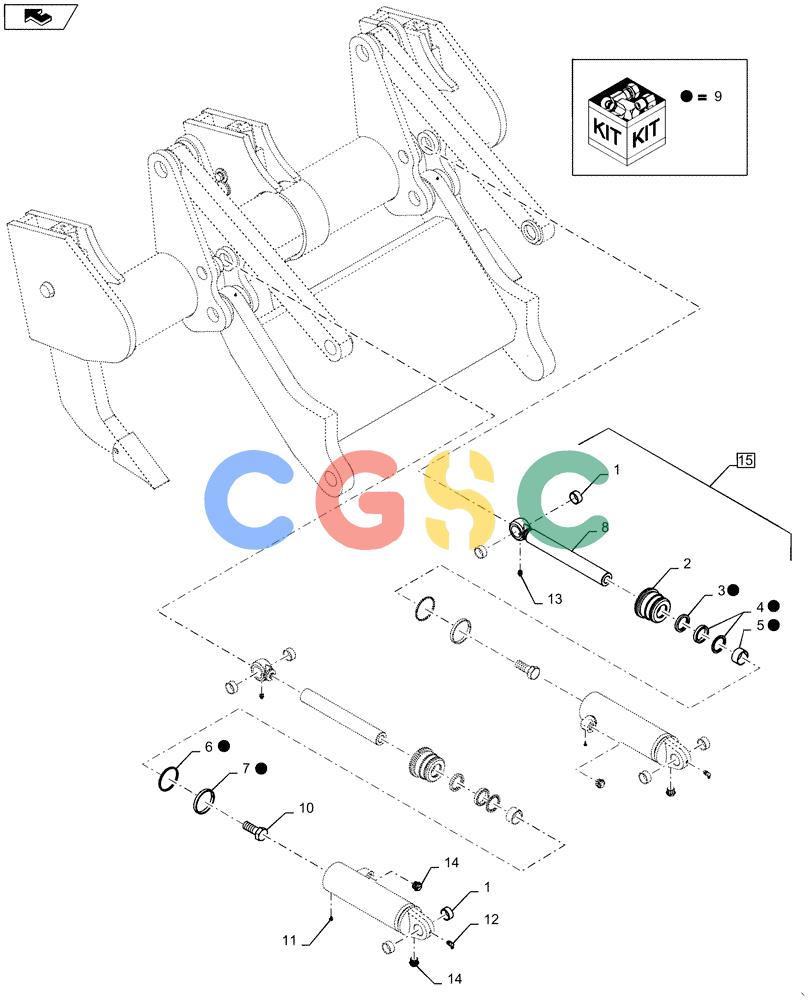

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (35.742.AA[02]) - RIPPER HYDRAULIC CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
122 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 30634 | [8] | BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L | CAS1.25 x .12 x .69 |
| 2. | 84208516 | [2] | GLAND | BUR82.6 Bore, 44.4 Rod |
| 3. | D95143 | [2] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk | CAS1.75 |
| 4. | 1542875C1 | [2] | SEAL KIT | IHRod and Buffer |
| 5. | G102425 | [2] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk | CASRod |
| 6. | 84323047 | [2] | SEAL | BURStatic Head, 82.6 |
| 7. | S109445 | [2] | RING | CASWear; |
| 8. | G100617 | [2] | ROD | CAS |
| 9. | 84567645 | [1] | SEAL KIT | BURIncl 3 - 7 |
| 10. | 86982437 | [2] | BOLT,Sems, Hex, 1" - 14 x 2.50" | BUR |
| 11. | G109395 | [2] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | CAS Superseded by part number: 86642312 |
| 12. | 219-55 | [2] | LUBE NIPPLE,90º, 1/8" NPT x .84" lg | CAS Superseded by part number: 80719 |
| 13. | 219-1 | [2] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS Superseded by part number: 80710 |
| 14. | 353-780 | [4] | PLUG,Sltd Hd, 7/8"-14, w/O-Ring | CAS Superseded by part number: 86625121 |
| 15. | 87651121 | [1] | CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke | BURLH Incl 1 - 8, 10 - 14 |
| 15. | 87651121R | [1] | REMAN-HYD CYLINDER | BURLH |
| 15. | 87651121C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 15. | 87651091 | [1] | CYLINDER ASSY.,Double Acting, 50.8mm Rod, 254mm Stroke | BURRH Incl 1 - 8, 10 - 14 |
| 15. | 87651091R | [1] | REMAN-HYD CYLINDER | BURRH |
| 15. | 87651091C | [1] | CORE-HYD CYLINDER | BURReturn Number |
