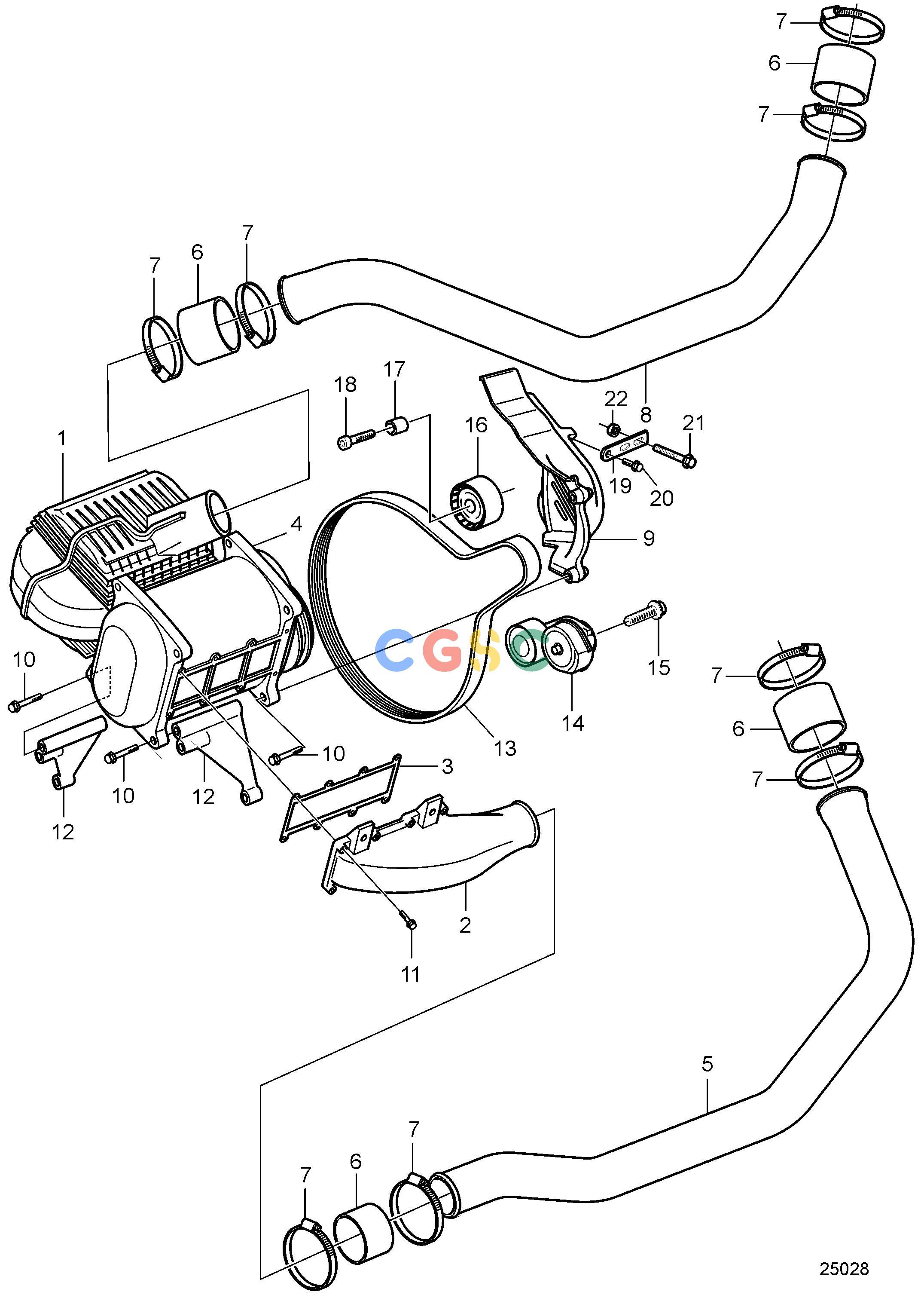

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Intake and Exhaust SystemCompressor IPSEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
141 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21257669
|
[1] |
Inlet silencer
|
|
| 2. |
21162922
|
[1] |
Air outlet
|
|
| 3. |
21308577
|
[1] |
Gasket
|
|
| 4. |
21145185
|
[1] |
Supercharger
|
|
| 5. |
21257650
|
[1] |
Pipe
|
|
| 6. |
470327
|
[4] |
Hose
|
|
| 7. |
995045
|
[8] |
Hose clamp
|
|
| 8. |
21257648
|
[1] |
Pipe
|
|
| 9. |
21452524
|
[1] |
Belt protector
|
|
| 10. |
984756
|
[8] |
Flange screw
|
|
| 11. |
984728
|
[8] |
Flange screw
|
|
| 12. |
21211439
|
[2] |
Bracket
|
|
| 13. |
981021
|
[1] |
V-ribbed belt
|
|
| 14. |
20935521
|
[1] |
Belt tensioner
|
Replaced by 21422765
|
| 14. |
21422765
|
[1] |
Belt tensioner
|
|
| 15. |
984759
|
[1] |
Flange screw
|
|
| 16. |
3887305
|
[1] |
Idler pulley
|
|
| 17. |
3818176
|
[1] |
Hub
|
|
| 18. |
990813
|
[1] |
Flange screw
|
|
| 19. |
965540
|
[1] |
Bracket
|
|
| 20. |
984734
|
[1] |
Flange screw
|
|
| 21. |
984738
|
[1] |
Flange screw
|
|
| 22. |
990940
|
[1] |
Flange nut
|
|
