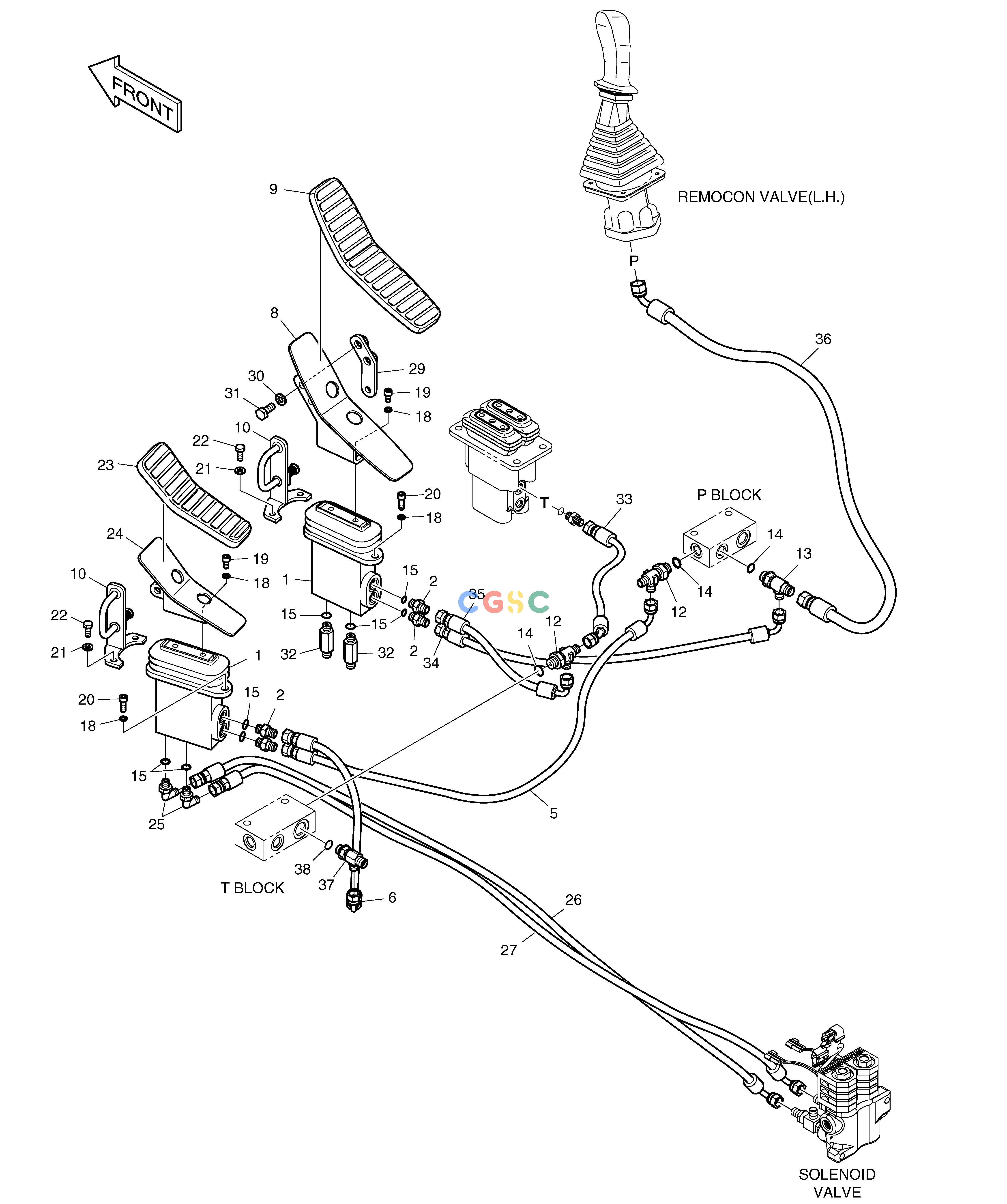

斗山零件查询PILOT PIPING - ARTI & ROTATING DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
723 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027367E
|
[-] |
PILOT PIPING;ARTI PERO
|
|
| 1. |
K1017382A
|
[2] |
PEDAL VALVE
|
|
| 10. |
K1001873A
|
[2] |
PLATE
|
|
| 12. |
2181-1951D7
|
[2] |
TEE
|
|
| 13. |
2181-1951D6
|
[1] |
TEE
|
|
| 14. |
S8000141
|
[3] |
O-RING
|
|
| 15. |
S8000111
|
[8] |
O-RING
|
|
| 18. |
S5110603
|
[8] |
WASHER
|
|
| 19. |
S2211866
|
[4] |
BOLT
|
|
| 2. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 20. |
S2212266
|
[4] |
BOLT
|
|
| 21. |
S5102503
|
[4] |
. WASHER
|
|
| 22. |
S0508866
|
[4] |
BOLT
|
|
| 23. |
K1017235
|
[1] |
RUBBER;PEDAL
|
|
| 24. |
K1015486
|
[1] |
BRACKET
|
|
| 25. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 26. |
DS2093426
|
[1] |
HOSE
|
|
| 27. |
DS2093205
|
[1] |
HOSE
|
|
| 29. |
K1001871B
|
[1] |
PLATE
|
|
| 30. |
S5102603
|
[2] |
. WASHER
|
|
| 31. |
S0512066
|
[2] |
. BOLT
|
|
| 32. |
2181-1126D34
|
[2] |
ADAPTER
|
|
| 33. |
DS2092046
|
[1] |
HOSE
|
|
| 34. |
DS2093202
|
[1] |
HOSE
|
|
| 35. |
DS2093130
|
[1] |
HOSE
|
|
| 36. |
DS2095003
|
[1] |
HOSE
|
|
| 37. |
2181-1951D19
|
[1] |
TEE
|
|
| 38. |
S8000181
|
[1] |
O-RING
|
|
| 5. |
DS2093013
|
[1] |
HOSE
|
|
| 6. |
DS2093130
|
[1] |
HOSE
|
|
| 8. |
K1015404
|
[1] |
BRACKET
|
|
| 9. |
161-00386
|
[1] |
RUBBER;PEDAL
|
|
