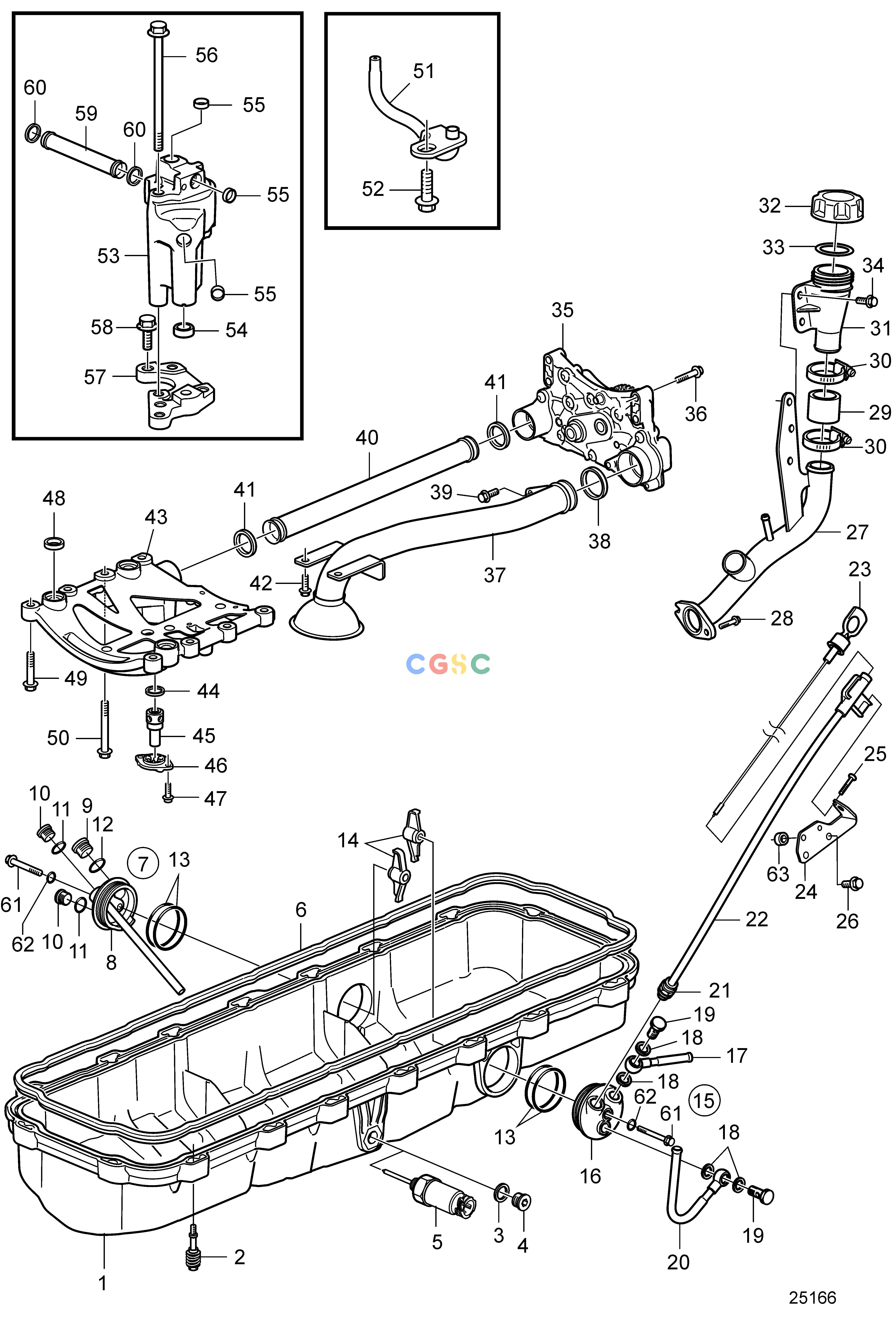

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Lubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808491
|
[1] |
Oil pan
|
|
| 2. |
20739547
|
[18] |
Flange screw
|
|
| 3. |
11998
|
[1] |
Gasket
|
|
| 4. |
966144
|
[1] |
Plug
|
|
| 5. |
7749110_086
|
|
Level sensor
|
|
| 6. |
20812484
|
[1] |
Sealing strip
|
|
| 7. |
21152129
|
[1] |
Cover flange
|
|
| 8. |
|
|
|
|
| 9. |
966143
|
[1] |
Plug
|
|
| 10. |
945065
|
[2] |
Plug
|
|
| 11. |
982723
|
[2] |
Gasket
|
|
| 12. |
982724
|
[1] |
Gasket
|
|
| 13. |
967343
|
[4] |
O-ring
|
|
| 14. |
3812221
|
[2] |
Wing nut
|
|
| 15. |
21442157
|
[1] |
Cover flange
|
|
| 16. |
|
|
|
|
| 17. |
21156901
|
[1] |
Oil pipe
|
|
| 18. |
982723
|
[4] |
Gasket
|
|
| 19. |
991048
|
[2] |
Hollow screw
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
21442388
|
[1] |
Pipe
|
|
| 23. |
21186628
|
[1] |
Oil dipstick
|
Replaced by 21641187
|
| 23. |
21641187
|
[1] |
Oil dipstick
|
|
| 24. |
21277902
|
[1] |
Bracket
|
|
| 25. |
975371
|
[1] |
Six point socket scr
|
|
| 26. |
984734
|
[2] |
Flange screw
|
|
| 27. |
21275561
|
[1] |
Oil filler pipe
|
|
| 28. |
984735
|
[2] |
Flange screw
|
|
| 29. |
21278364
|
[1] |
Hose
|
|
| 30. |
993964
|
[2] |
Hose clamp
|
|
| 31. |
20808091
|
[1] |
Oil filler pipe
|
|
| 32. |
20807510
|
[1] |
Oil filler cap
|
|
| 33. |
20365079
|
[1] |
Rubber washer
|
|
| 34. |
984733
|
[2] |
Flange screw
|
|
| 35. |
20570573
|
[1] |
Oil pump
|
|
| 35. |
|
|
|
|
| 36. |
984738
|
[4] |
Flange screw
|
|
| 37. |
3883823
|
[1] |
Oil strainer
|
|
| 38. |
20570444
|
[1] |
Sealing ring
|
|
| 39. |
949853
|
[1] |
Flange screw
|
|
| 40. |
20563450
|
[1] |
Pressure pipe
|
|
| 41. |
20570449
|
[2] |
Sealing ring
|
|
| 42. |
984734
|
[1] |
Flange screw
|
|
| 43. |
21125138
|
[1] |
Valve housing
|
|
| 44. |
469846
|
[1] |
Sealing ring
|
|
| 45. |
3826265
|
[1] |
Reduction valve
|
|
| 46. |
471648
|
[1] |
Cover
|
|
| 47. |
984725
|
[2] |
Flange screw
|
|
| 48. |
21092243
|
[3] |
Sealing ring
|
|
| 49. |
984756
|
[6] |
Flange screw
|
|
| 50. |
984759
|
[2] |
Flange screw
|
|
| 51. |
21389857
|
[6] |
Piston cooling jet
|
|
| 52. |
966378
|
[6] |
Flange screw
|
|
| 53. |
20540340
|
[1] |
Intermediate housing
|
|
| 54. |
20526428
|
[1] |
Sealing ring
|
|
| 55. |
955082
|
[3] |
Cap plug
|
|
| 56. |
969225
|
[2] |
Flange screw
|
|
| 57. |
20862692
|
[1] |
Adapter
|
|
| 58. |
984734
|
[3] |
Flange screw
|
|
| 59. |
20951326
|
[1] |
Connection pipe
|
|
| 60. |
1677370
|
[2] |
Sealing ring
|
|
| 61. |
948871
|
[1] |
Spacer washer
|
|
| 62. |
990058
|
[2] |
O-ring
|
|
| 63. |
984733
|
[2] |
Flange screw
|
|
