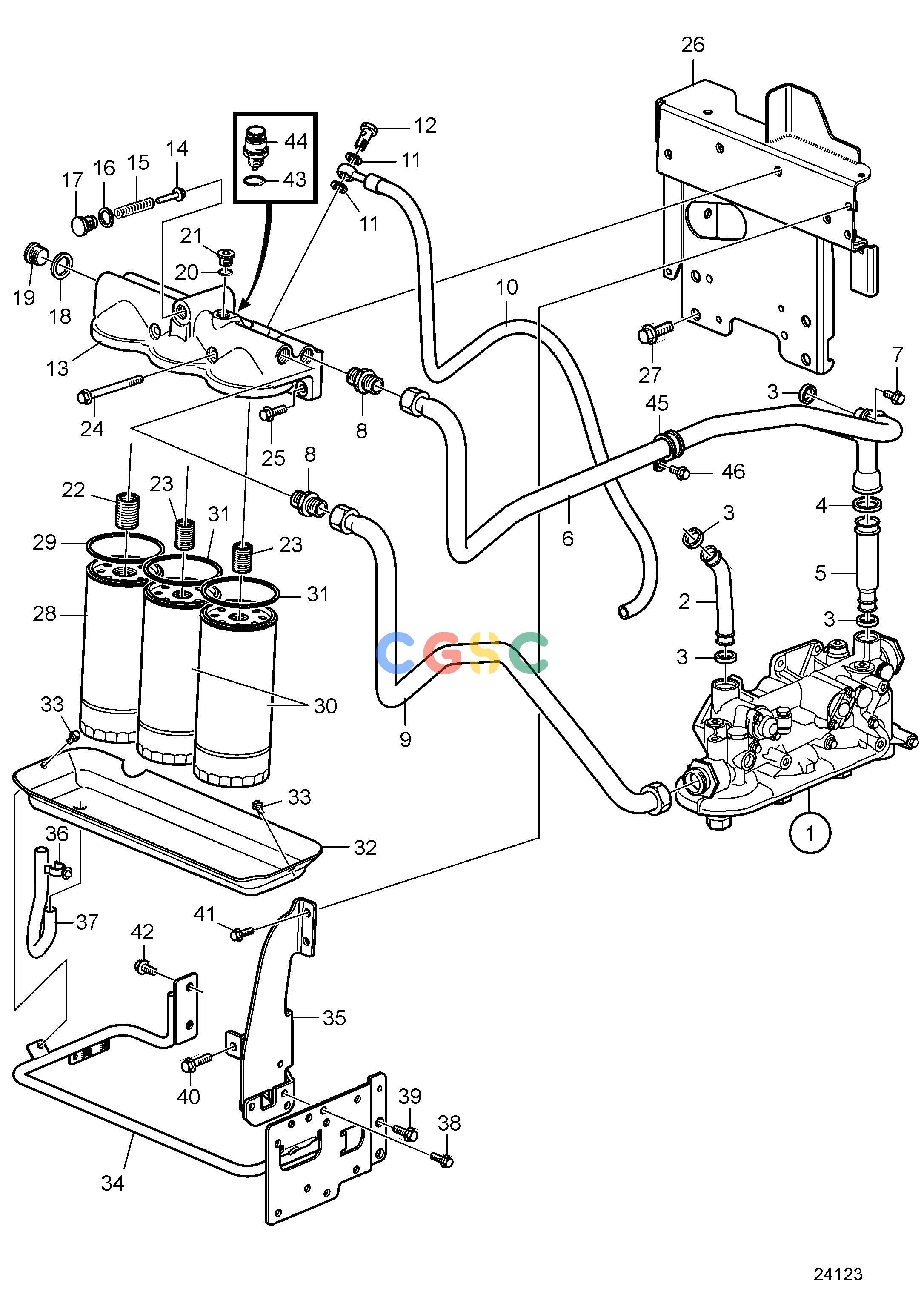

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)Lubricating SystemOil Filter and Oil LinesEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
901 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886539
|
[1] |
Oil filter housing
|
|
| 2. |
20951337
|
[1] |
Pipe
|
|
| 3. |
471626
|
[3] |
Rubber moulding
|
|
| 4. |
1543578
|
[1] |
Sealing ring
|
|
| 5. |
21114916
|
[1] |
Oil line
|
|
| 6. |
3885721
|
[1] |
Oil line
|
|
| 7. |
984734
|
[2] |
Flange screw
|
|
| 8. |
984802
|
[2] |
Nipple
|
|
| 9. |
21239152
|
[1] |
Oil line
|
|
| 10. |
3883438
|
[1] |
Oil hose
|
|
| 11. |
982723
|
[2] |
Gasket
|
|
| 12. |
25167
|
[1] |
Hollow screw
|
|
| 13. |
11127988
|
[1] |
Oil filter housing
|
|
| 14. |
471085
|
[1] |
Valve cone
|
|
| 15. |
466653
|
[1] |
Compression spring
|
|
| 16. |
976932
|
[1] |
Gasket
|
|
| 17. |
471598
|
[1] |
Plug
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
|
|
|
|
| 21. |
|
|
|
|
| 22. |
469904
|
[1] |
Nipple
|
|
| 23. |
466623
|
[2] |
Nipple
|
|
| 24. |
984762
|
[2] |
Flange screw
|
|
| 25. |
946472
|
[2] |
Flange screw
|
|
| 26. |
21131317
|
[1] |
Bracket
|
|
| 27. |
984851
|
[4] |
Flange screw
|
|
| 28. |
477556
|
[1] |
Oil filter
|
|
| 29. |
|
|
|
|
| 30. |
478736
|
[2] |
Oil filter
|
|
| 31. |
|
|
|
|
| 32. |
3595397
|
[1] |
Spill plate
|
|
| 33. |
967949
|
[2] |
Flange screw
|
|
| 34. |
3887397
|
[1] |
Bracket
|
Earlier production
|
| 35. |
3817750
|
[1] |
Bracket
|
|
| 36. |
9135343
|
[1] |
Retainer
|
|
| 37. |
941507
|
[1] |
Hose
|
L=300mm
|
| 38. |
984735
|
[2] |
Flange screw
|
|
| 39. |
946472
|
[2] |
Flange screw
|
|
| 40. |
984756
|
[2] |
Flange screw
|
|
| 41. |
984733
|
[2] |
Flange screw
|
|
| 42. |
984752
|
[2] |
Flange screw
|
|
| 43. |
968559
|
[1] |
O-ring
|
|
| 44. |
1077574
|
[1] |
Sensor, oil pressure/temperature
|
|
| 45. |
943717
|
[1] |
Clamp
|
|
| 46. |
984732
|
[1] |
Flange screw
|
|
