神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K909A, K912A, K916, & K935 (1/76-12/06) (03-015) - FUEL HOSE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
736 次

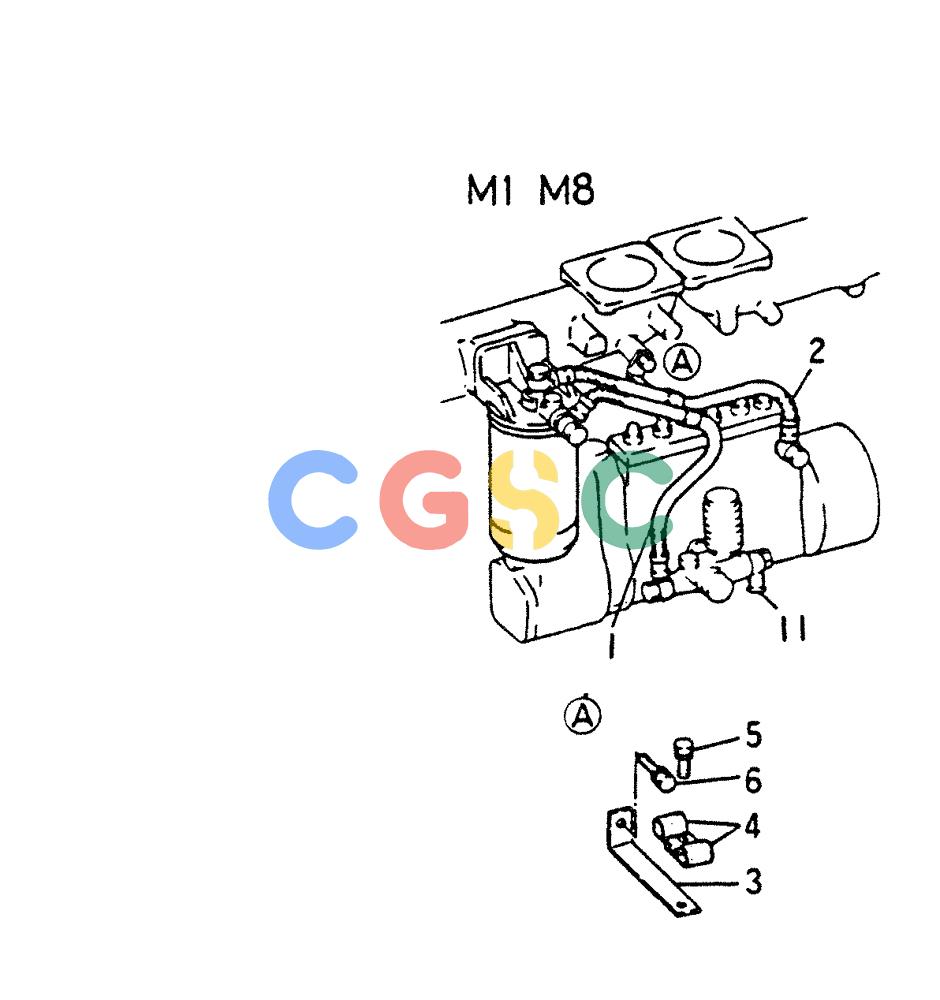

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 6D221CT-KS0B | [1] | FUEL HOSE(M8) | |
| . . | 6D221CT-KS01 | [1] | FUEL HOSE(M1) | |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE,FUEL FEED,I/P-FILTER |
| . . | VAME910348 | [1] | HOSE | KOBL=480 (FOR M1) |
| . . | VAME910450 | [1] | FLEXIBLE HOSE | KOBL=500 (FOR M8) |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONHOSE,FUEL FEED,FILTER, I/P |
| . . | VAME910445 | [1] | HOSE | KOBL=450 Superseded by part number: VAME91044501 |
| 3. | VAME930243 | [1] | COUNTERWEIGHT STAY | COUNTERWEIGHT STAY |
| 4. | VAMH020807 | [1] | CLIP | KOBCLAMP |
| 5. | VAMF240023 | [1] | BOLT & WASHER ASSY BOLT,W/WSR 6X12 | BOLT & WASHER ASSY BOLT,W/WSR 6X12 |
| 6. | VAMF300841 | [1] | SCREW | KOBBOLT,W/WSR 10X20 Superseded by part number: 132461A1 |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONJOINT,SWIVELING |
| . . | VAMH037116 | [1] | FLEXIBLE JOINT | KOBD=10 |
