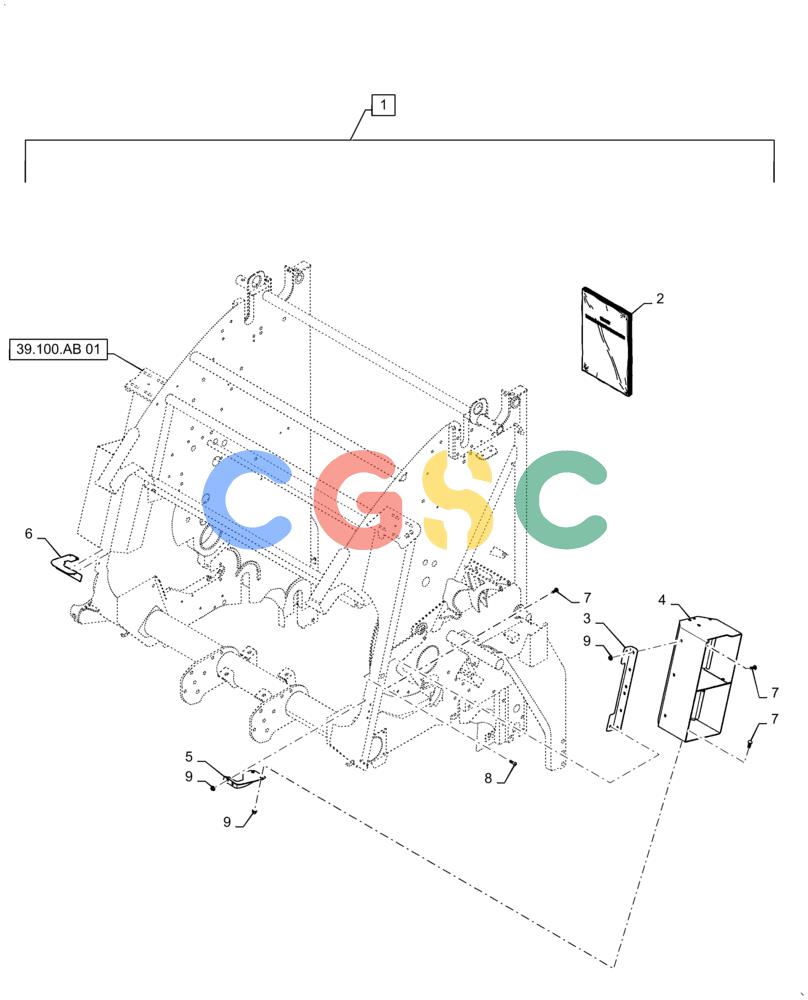

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (88.100.90[02]) - DIA KIT, AUXILIARY TWINE BOX Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
406 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84580272
|
[1] |
DIA KIT, HARVESTER
|
NH
Auxiliary Twine Box, Incl 2 - 9
|
| 2. |
84555220
|
[1] |
INSTRUCTION
|
NH
|
| 3. |
84581165
|
[2] |
BRACKET
|
NH
|
| 4. |
84579325
|
[2] |
TWINE BOX
|
NH
|
| 5. |
84594124
|
[1] |
BRACKET
|
NH
LH
|
| 6. |
84594122
|
[1] |
BRACKET
|
NH
RH
|
| 7. |
86507486
|
[14] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 8. |
9804258
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 9. |
9804277
|
[14] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
