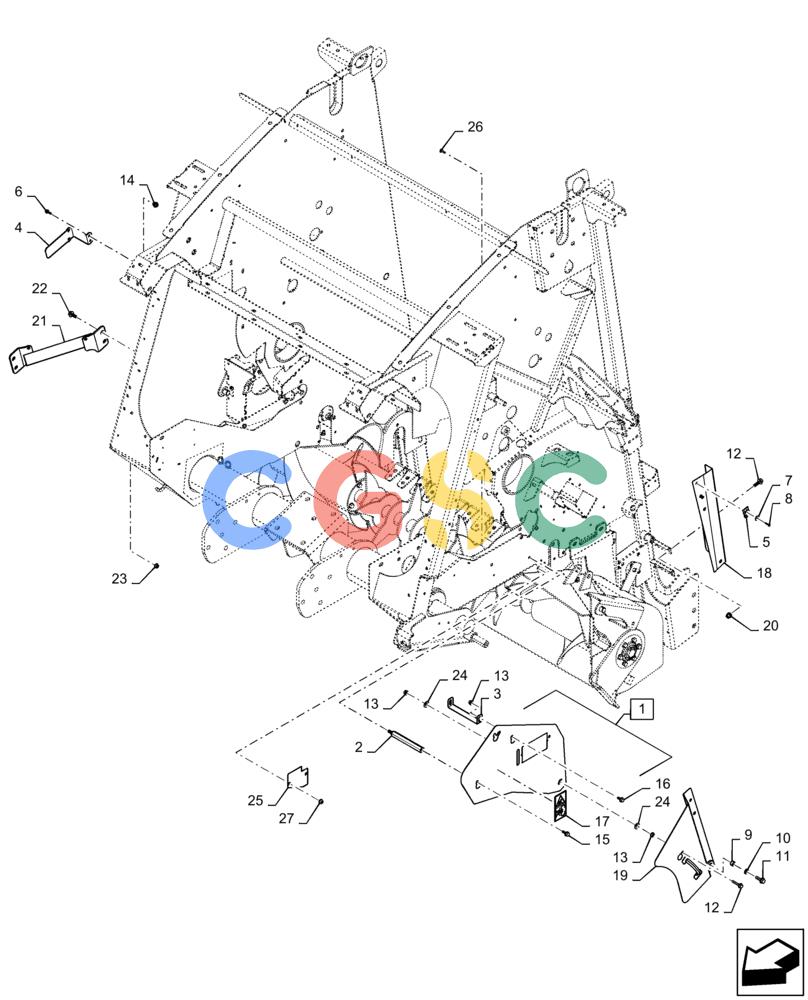

| 1. |
47607487
|
[1] |
SHIELD
|
NH
Incl 17
|
| 2. |
47394340
|
[1] |
SHAFT
|
NH
LH
|
| 3. |
47394554
|
[1] |
BRACKET
|
NH
|
| 4. |
47449166
|
[1] |
BRACKET
|
NH
|
| 5. |
47325
|
[1] |
CLIP
|
NH
|
| 6. |
9804256
|
[2] |
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
|
NH
|
| 7. |
280254
|
[1] |
LOCK WASHER,5.18mm ID x 9.68mm OD x 0.64mm Thk
|
GI
|
| 8. |
86511920
|
[1] |
SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2"
|
BEL
|
| 9. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 10. |
140017
|
[1] |
WASHER,M10 x 20mm OD x 2mm Thk
|
PA
Superseded by part number: 9820489
|
| 11. |
9804262
|
[1] |
BOLT,M10 x 39.2mm, Cl 8.8
|
NH
Superseded by part number: 9840672
|
| 12. |
86511842
|
[5] |
BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8
|
NH
|
| 13. |
9804277
|
[3] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 14. |
86610198
|
[2] |
INSERT,M6 x 1
|
NH
|
| 15. |
9804258
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 16. |
86511841
|
[1] |
BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 17. |
84004734
|
[1] |
WARNING DECAL
|
ZED
|
| 18. |
47448359
|
[1] |
SHIELD
|
NH
|
| 19. |
47495318
|
[1] |
SHIELD
|
NH
|
| 20. |
86610200
|
[4] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 21. |
47448247
|
[1] |
REINFORCEMENT
|
NH
|
| 22. |
9804261
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 23. |
9804278
|
[4] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 24. |
87363
|
[2] |
WASHER,0.47" ID x 0.92" OD x 0.07" Thk
|
NH
|
| 25. |
47427240
|
[2] |
COVER
|
NH
|
| 26. |
9706703
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 27. |
9804276
|
[4] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
