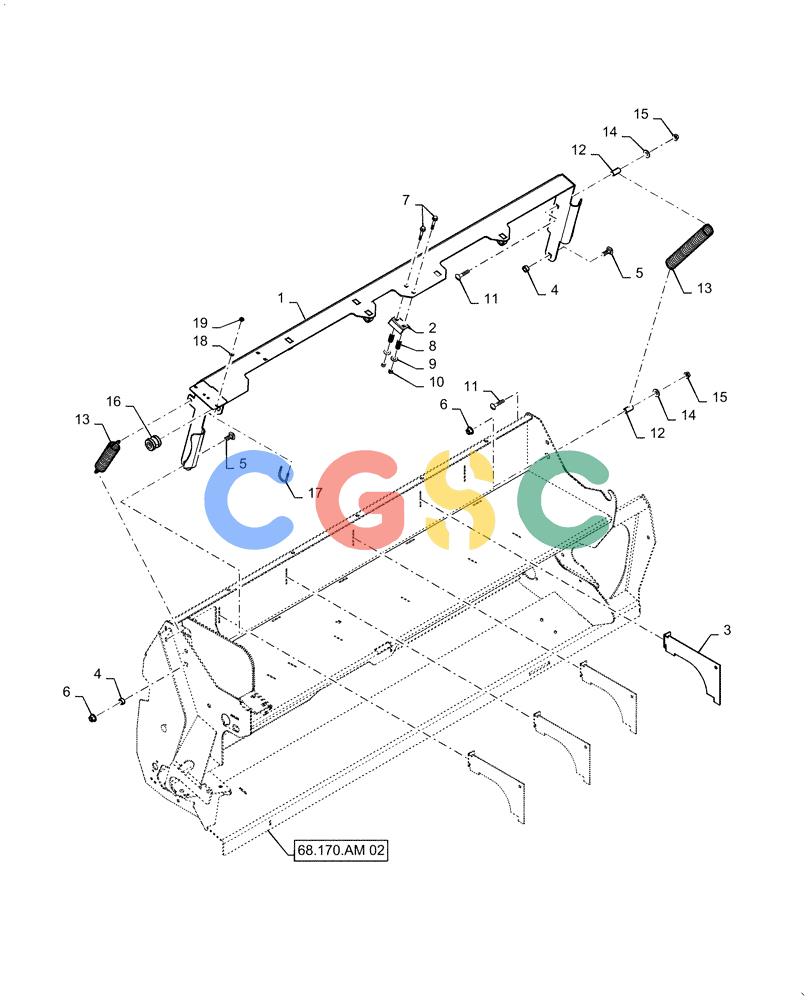

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (90.105.BR[02]) - VAR - 726964 - TWINE BOX - TWINE AND NET OPTION, YFN188619 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
675 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84580511
|
[1] |
TENSIONER
|
NH
|
| 2. |
9820171
|
[2] |
BRACKET
|
NH
|
| 3. |
84572188
|
[6] |
DIVIDER
|
NH
|
| 4. |
133095
|
[2] |
SPACER,10.32mm ID x 15.85mm OD x 7.9mm L
|
NH
|
| 5. |
86633356
|
[2] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 6. |
9804278
|
[2] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 7. |
86511840
|
[4] |
BOLT,Hex Flng, M6 x 1 x 40mm, Cl 8.8
|
NH
|
| 8. |
29840
|
[4] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 9. |
80701
|
[4] |
WASHER,0.31" ID x 0.73" OD x 0.07" Thk
|
NH
|
| 10. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 11. |
86512444
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8
|
NH
|
| 12. |
27695
|
[2] |
BUSHING,9.53mm ID x 12.83mm OD x 25.4mm L
|
GI
|
| 13. |
32379
|
[2] |
SPRING,Extension, 1-1/4" OD x 5-3/8" L
|
PA
|
| 14. |
80664
|
[2] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 15. |
9804277
|
[2] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 16. |
84298727
|
[2] |
GUIDE
|
PA
Porcelain
|
| 17. |
28114
|
[2] |
U-BOLT
|
NH
|
| 18. |
322357
|
[4] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
|
| 19. |
87304
|
[4] |
NUT,#10-24
|
BEL
|
