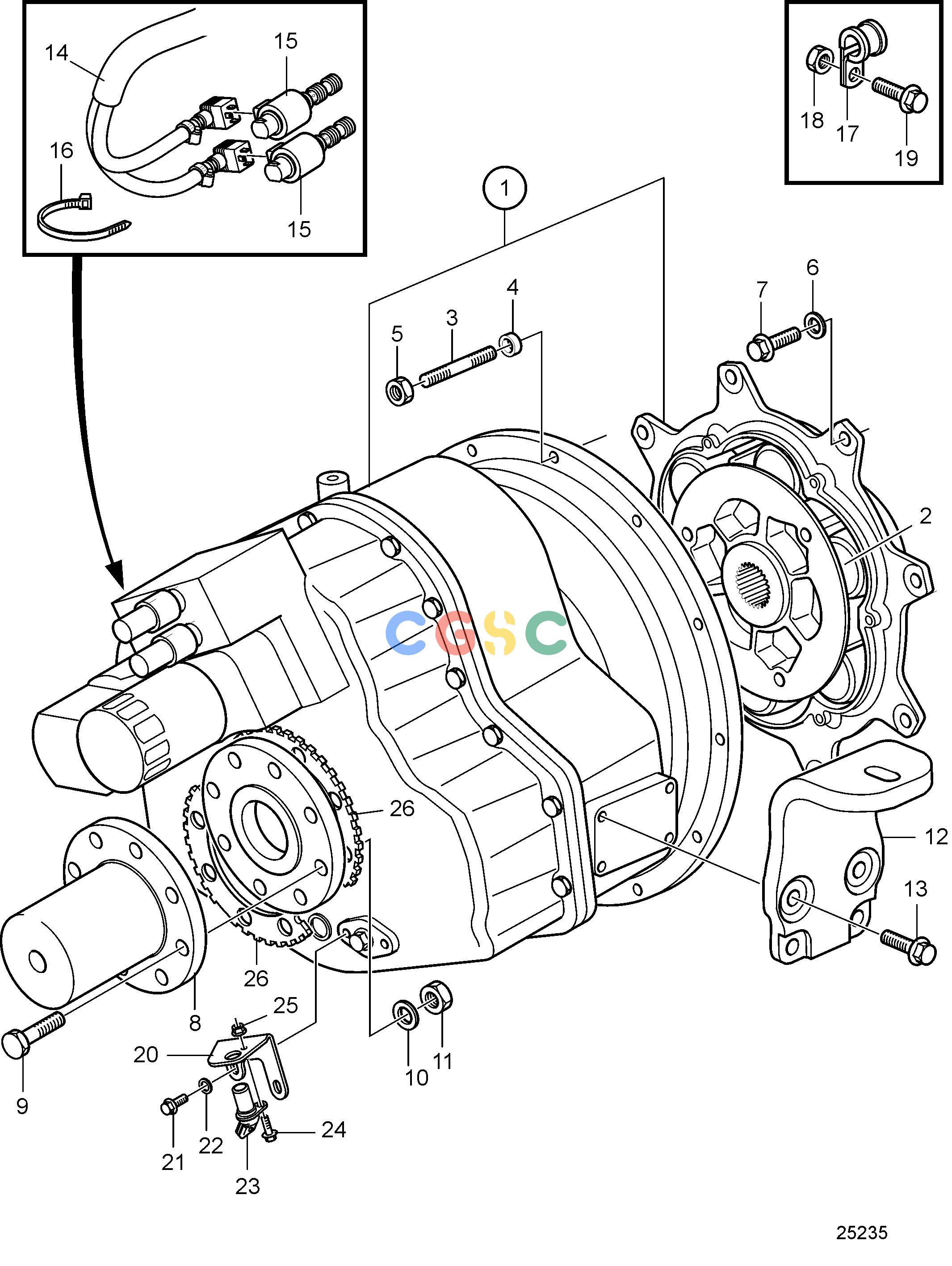

沃尔沃零件查询D11A-A; D11A-B; D11A-C; D11A-D MP; D11A-D (IPS); D11A-E; D11A-E MP; D11A-C MP; D11A-C (IPS)TransmissionsConnecting Components for ZF311A-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
446 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
7° angle down, Ratio 2.03:1
|
| 2. |
21509619
|
[1] |
Roller kit
|
|
| 3. |
479972
|
[12] |
Stud
|
|
| 4. |
942336
|
[12] |
Spring washer
|
|
| 5. |
990980
|
[12] |
Lock nut
|
|
| 6. |
976945
|
[8] |
Washer
|
|
| 7. |
993879
|
[8] |
Hexagon screw
|
|
| 8. |
863994
|
[1] |
Clutch flange
|
|
| 9. |
955739
|
[8] |
Hexagon screw
|
|
| 10. |
941912
|
[8] |
Spring washer
|
|
| 11. |
950378
|
[8] |
Lock nut
|
|
| 12. |
3594664
|
[2] |
Engine anchorage
|
|
| 13. |
968435
|
[8] |
Flange screw
|
|
| 14. |
3594238
|
[1] |
Wiring harness
|
|
| 14. |
21855159
|
[1] |
Wiring harness
|
EVC-E
|
| 15. |
3826414
|
[2] |
Solenoid
|
|
| 16. |
948211
|
[1] |
Cable tie
|
|
| 17. |
952632
|
[2] |
Clamp
|
|
| 18. |
990949
|
[1] |
Flange lock nut
|
|
| 19. |
984725
|
[1] |
Flange screw
|
|
| 20. |
3840887
|
[1] |
Bracket
|
|
| 21. |
984733
|
[2] |
Flange screw
|
|
| 22. |
941907
|
[2] |
Spring washer
|
|
| 23. |
7749110_087
|
|
Tachometer sensor
|
|
| 24. |
984725
|
[1] |
Flange screw
|
|
| 25. |
990949
|
[1] |
Flange lock nut
|
|
| 26. |
3841413
|
[2] |
Sprocket wheel
|
|
