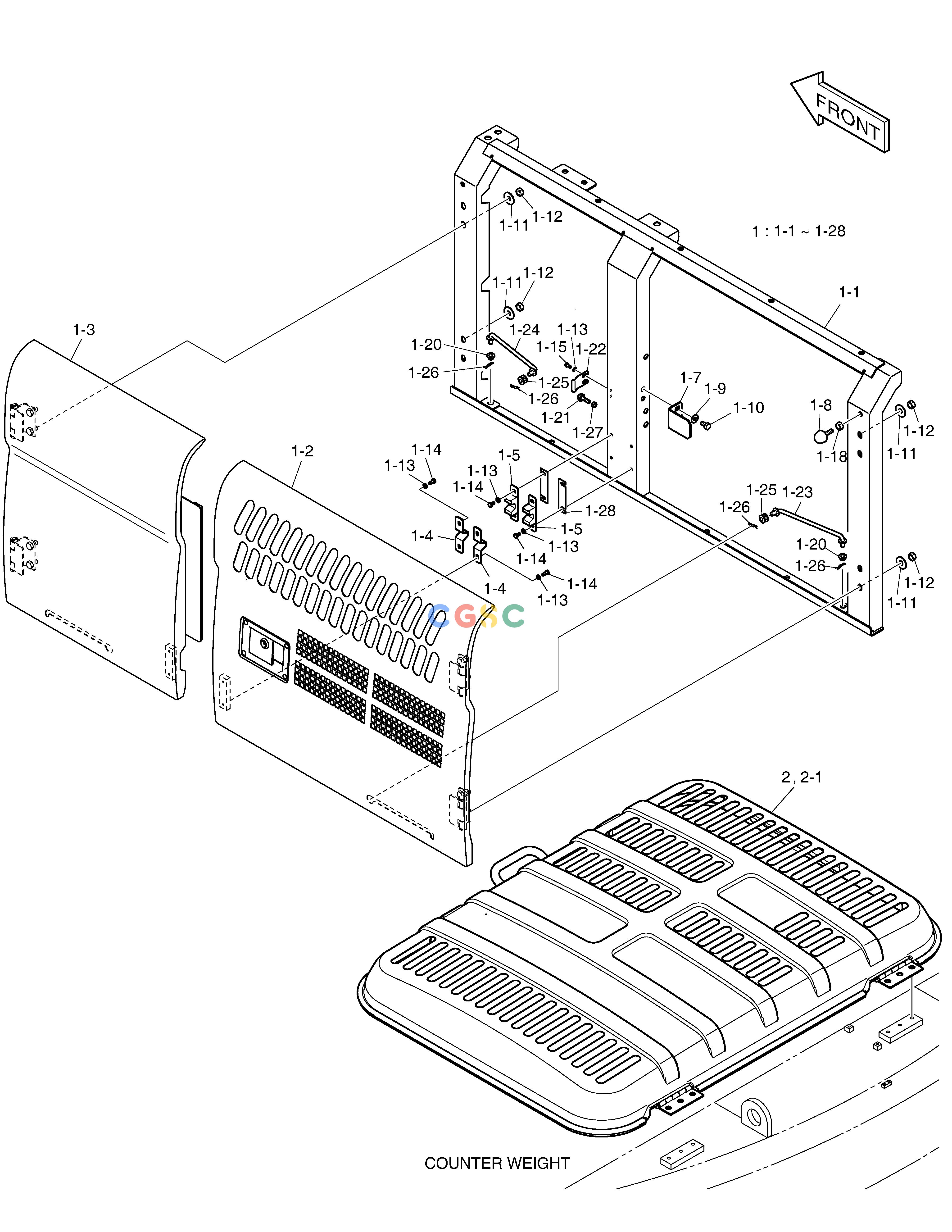

斗山零件查询SIDE DOOR - L.H (TROPICAL) DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
869 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-32210
|
[-] |
|
|
| 1. |
110982-00967C
|
[1] |
|
|
| 1-1. |
110958-00230B
|
[1] |
|
|
| 1-10. |
S0512053
|
[2] |
BOLT
|
|
| 1-11. |
120804-00079
|
[8] |
WASHER
|
|
| 1-12. |
S4012733
|
[8] |
NUT
|
|
| 1-13. |
S5010313
|
[10] |
WASHER
|
|
| 1-14. |
S0504553
|
[8] |
BOLT
|
|
| 1-15. |
S0504453
|
[2] |
BOLT
|
|
| 1-18. |
S4012633
|
[3] |
NUT
|
|
| 1-2. |
110982-00970A
|
[1] |
|
|
| 1-20. |
K1000602
|
[2] |
. BUSHING
|
|
| 1-21. |
K1048085
|
[1] |
STOPPER;RUBBER
|
|
| 1-22. |
K1039869B
|
[1] |
PLATE;LOCK
|
|
| 1-23. |
101582-00619A
|
[1] |
|
|
| 1-24. |
101582-00618A
|
[1] |
|
|
| 1-25. |
K1008335
|
[2] |
. BUSHING
|
|
| 1-26. |
2705-9002
|
[4] |
PIN
|
|
| 1-27. |
S4012533
|
[1] |
NUT
|
|
| 1-28. |
110947-00027
|
[2] |
. SHIM
|
|
| 1-3. |
110982-00131A
|
[1] |
|
|
| 1-4. |
250201-00028
|
[2] |
. PLATE
|
|
| 1-5. |
110956-00002A
|
[2] |
. STOPPER
|
|
| 1-7. |
K1038920
|
[1] |
PLATE;LOCK
|
|
| 1-8. |
K1001260A
|
[1] |
STOPPER
|
|
| 1-9. |
120804-00078
|
[2] |
WASHER
|
|
| 2. |
110506-00019B
|
[1] |
|
|
| 2-1. |
2512-1054
|
[2] |
RUBBER
|
|
