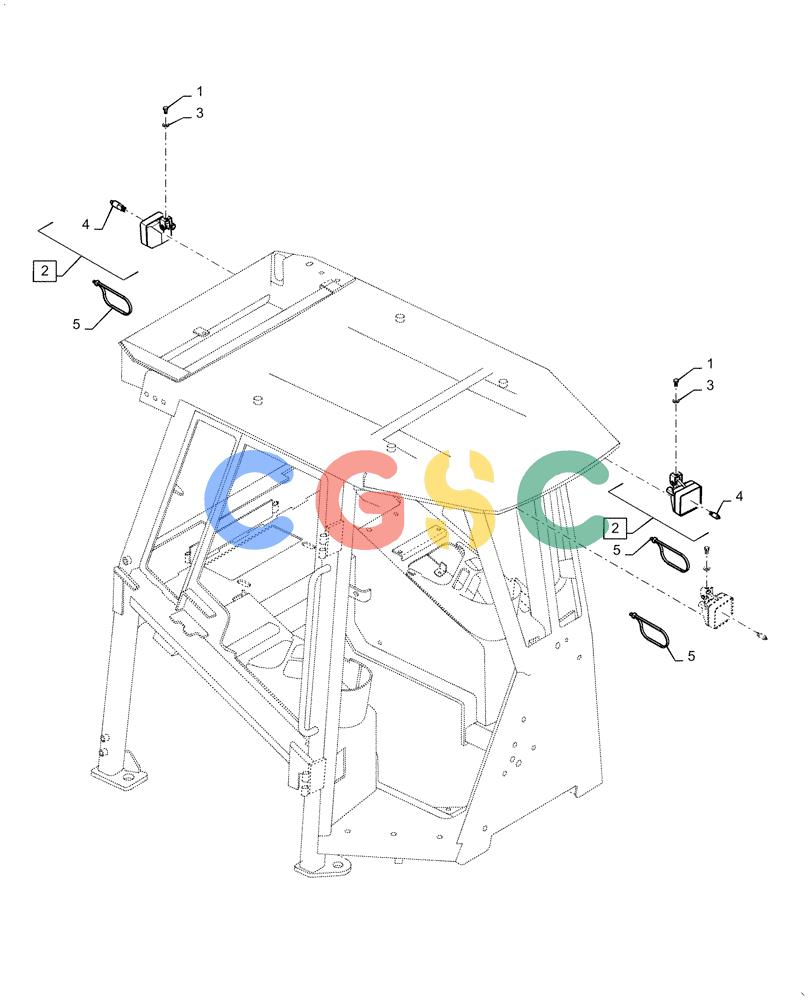

纽荷兰零件查询(D125C LT) - CRAWLER DOZER - TIER 4A (10/13-) (55.404.BS[01]) - DELUXE LIGHT CAB New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 614-10016 | [3] | BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd | CAS Superseded by part number: 300383 |
| 2. | 87555142 | [3] | LIGHT ASSY.,Halogen, 24V, 65W, Clear | BURWork Lamp Incl 4 |
| 3. | 87655046 | [3] | SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk | BURM10 x 10.65 x 23.0 x 2.2 Hts Boron |
| 4. | 87563198 | [3] | BULB | BURH3 24V 65W HD |
| 5. | L18331 | [3] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
