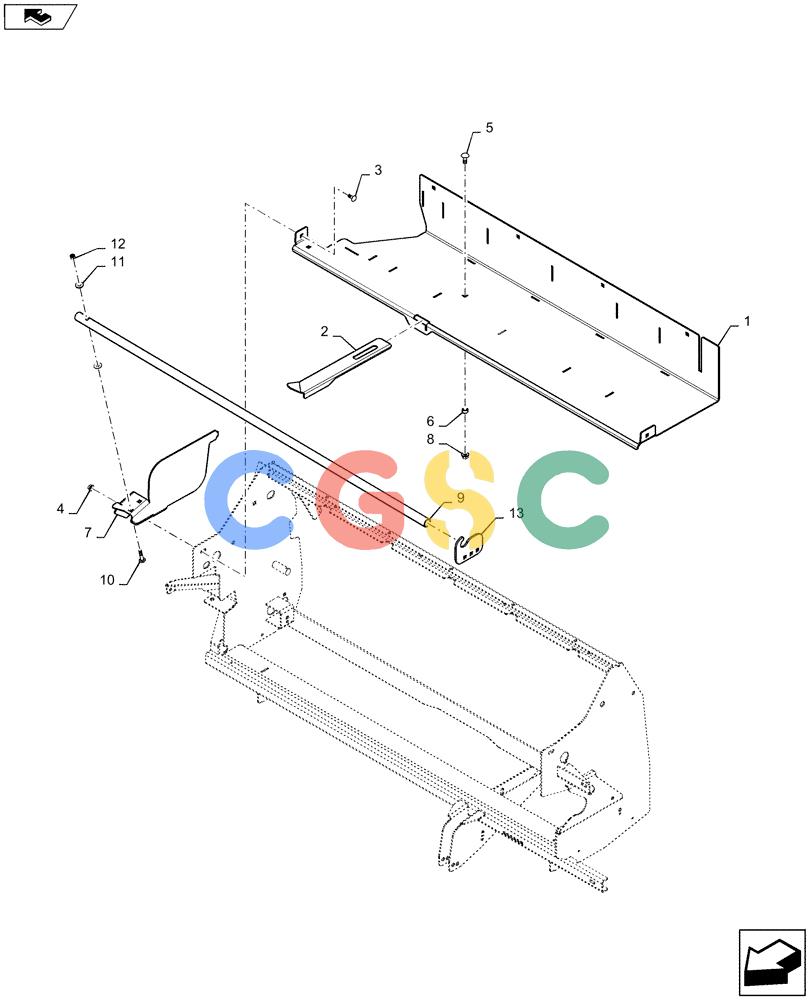

凯斯零件查询(RB455) - CASE IH ROUND BALER - NORTH AMERICA (1/14-12/15) (90.105.BR[05]) - VAR - 726666 - FRONT NET BOX Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47496488
|
[1] |
WRAPPER
|
NH
|
| 2. |
47463692
|
[1] |
SUPPORT
|
NH
Net Loading
|
| 3. |
86507486
|
[8] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 4. |
9804277
|
[8] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 5. |
86633356
|
[1] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 6. |
133095
|
[1] |
SPACER,10.32mm ID x 15.85mm OD x 7.9mm L
|
NH
|
| 7. |
47457566
|
[1] |
DIVIDER
|
NH
|
| 8. |
9804278
|
[1] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 9. |
47465275
|
[1] |
SHAFT
|
NH
|
| 10. |
86512444
|
[1] |
CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8
|
NH
|
| 11. |
80664
|
[3] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 12. |
86629542
|
[1] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 13. |
47465273
|
[1] |
LATCH
|
NH
|
