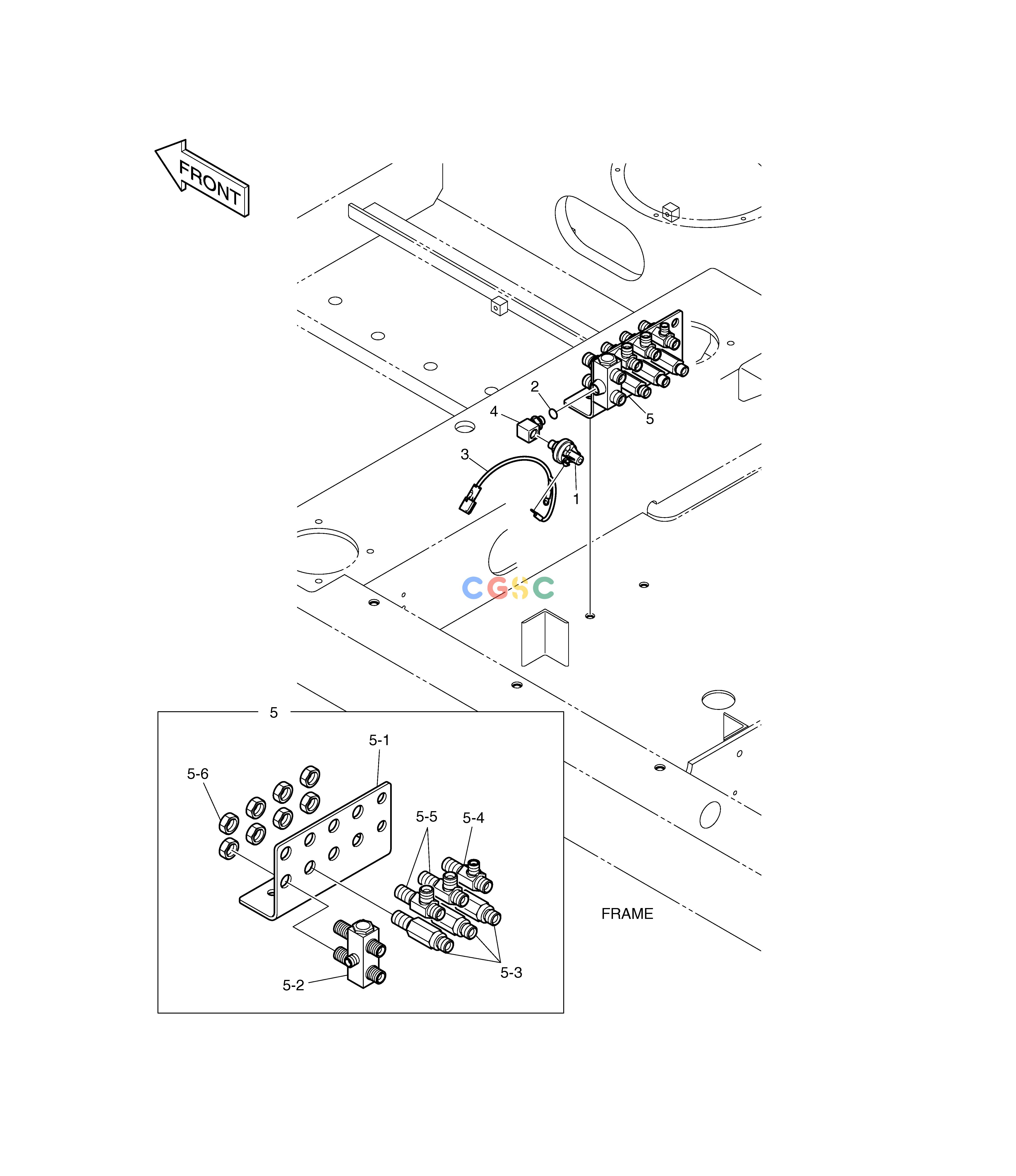

斗山零件查询SWING ALARM - NOT ONE OR TWO WAY DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
762 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1044685
|
[-] |
SWING ALARM
|
|
| -. |
420212-00478
|
[-] |
|
|
| 1. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 2. |
S8000111
|
[1] |
O-RING
|
|
| 3. |
530-00067
|
[1] |
HARNESS
|
|
| 4. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 4. |
K1002778
|
[1] |
|
|
| 5. |
K1044409
|
[1] |
JOINT PLATE;SUB ASS'Y
|
430216-00005
|
| 5. |
430216-00005
|
[1] |
|
|
| 5-1. |
K1000354
|
[1] |
PLATE
|
|
| 5-2. |
420-00282
|
[1] |
VALVE;SHUTTLE
|
|
| 5-3. |
DS2410009
|
[3] |
ADAPTER
|
|
| 5-4. |
181-00086D1
|
[1] |
TEE
|
|
| 5-5. |
181-00086D2
|
[2] |
TEE
|
|
| 5-6. |
121-00010D1
|
[8] |
NUT
|
|
