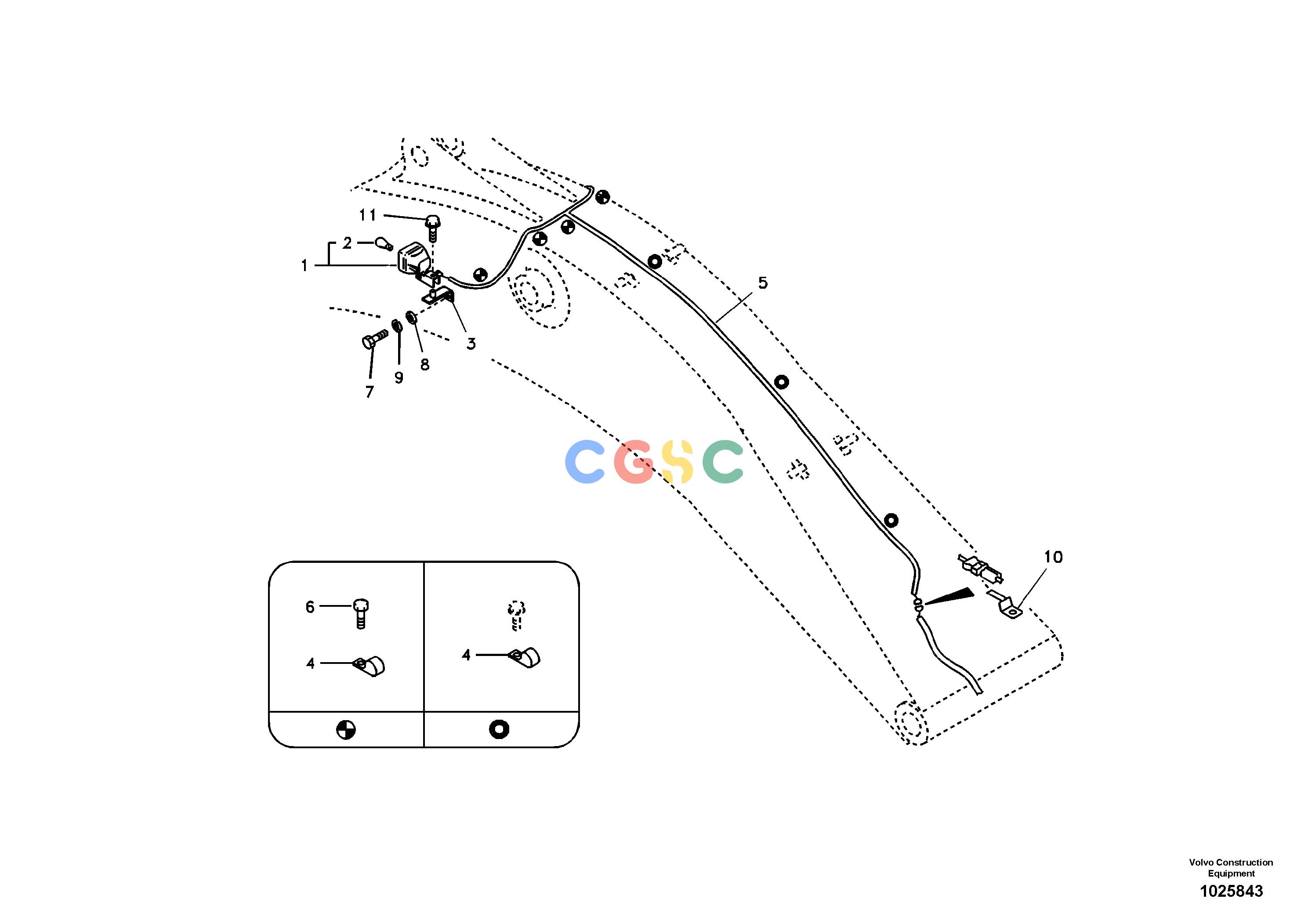

沃尔沃零件查询EC180B Working lamp on boomPRIME S/N 12001-8286534-8286535NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
256 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11039846
|
[1] |
Work lamp
|
|
| 2. |
VOE992517
|
[1] |
Bulb
|
24V,70W
|
| 3. |
VOE14514339
|
[1] |
Bracket
|
|
| 4. |
VOE14500293
|
[6] |
Clip
|
|
| 5. |
VOE14587771
|
[1] |
Wiring harness
|
|
| |
VOE14530402
|
|
Wiring harness
|
|
| 6. |
VOE983241
|
[3] |
Hexagon screw
|
|
| 7. |
VOE997459
|
[1] |
Hexagon screw
|
|
| 8. |
VOE955900
|
[1] |
Plain washer
|
|
| 9. |
VOE955926
|
[1] |
Spring washer
|
|
| 10. |
VOE14881252
|
[1] |
Clip
|
|
| 11. |
VOE946471
|
[0001] |
Flange screw
|
|
