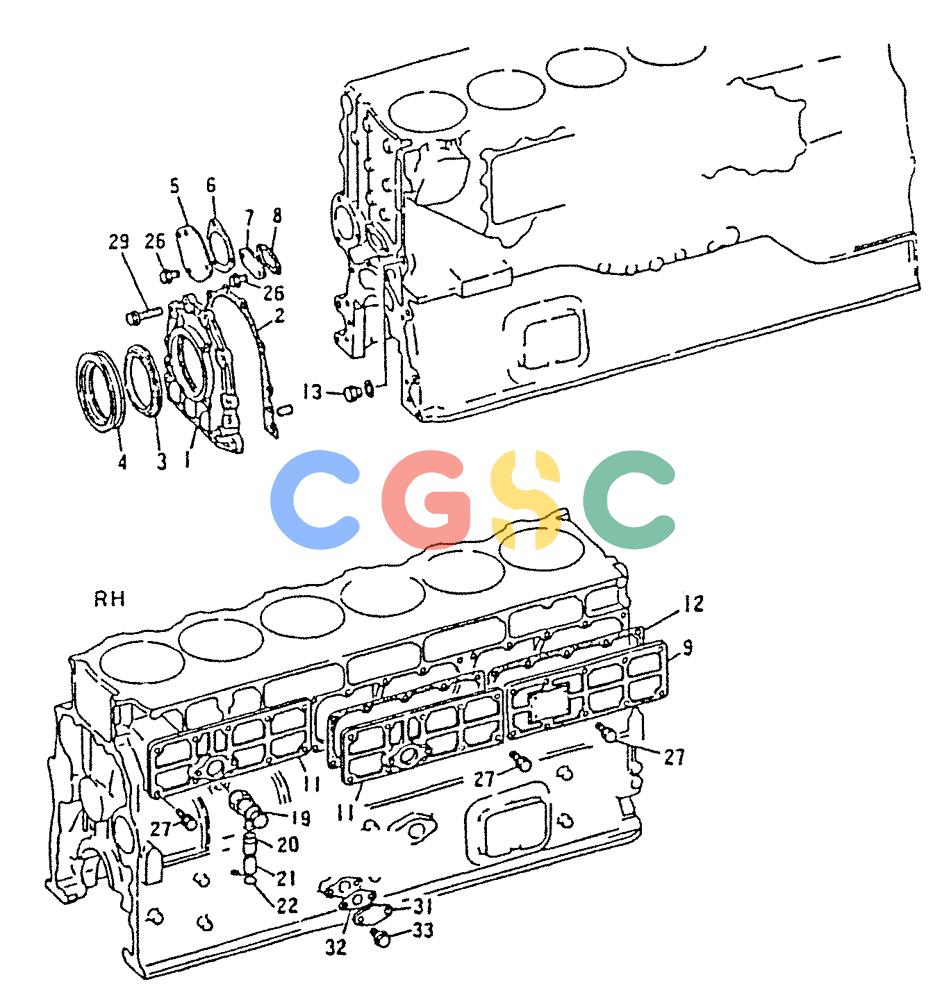

神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-025) - ENGINE ATTACHING PARTS 020-460E Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
856 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME051471 | [1] | COVER, FRONT M3 ONLY | COVER, FRONT M3 ONLY |
| . . | VAME051471 | [1] | COVER, FRONT M6 ONLY | COVER, FRONT M6 ONLY |
| 2. | VA3090713201 | [1] | O-RING | KOBGASKET, FR COVER Superseded by part number: 133177A1 |
| 3. | VAME060125 | [1] | SLINGER | KOBFR, M3 ONLY Superseded by part number: 133179A1 |
| . . | VAME060125 | [1] | SLINGER | KOBM6 ONLY Superseded by part number: 133179A1 |
| 4. | VAME060124 | [1] | OIL SEAL | KOBM3 ONLY Superseded by part number: 133160A1 |
| . . | VAME060124 | [1] | OIL SEAL | KOBM6 ONLY Superseded by part number: 133160A1 |
| 5. | VA3090703500 | [1] | COVER | KOBCOVER |
| 6. | VA3090702501 | [1] | GASKET | KOBGASKET Superseded by part number: 133173A1 |
| 7. | VA3090702600 | [1] | COVER | |
| 8. | VA3090702701 | [1] | GASKET GASKET | GASKET GASKET |
| 9. | VAME051003 | [1] | COVER | KOB |
| 11. | VAME051344 | [2] | SIDE PLATE | KOBSIDE Superseded by part number: ME051344 |
| 12. | VAME051635 | [3] | GASKET | KOBSIDE COVER Superseded by part number: 346195A1, 77269296 |
| 13. | VAMH037723 | [1] | PLUG | KOBPLUG, SCREW |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 19. | VA3170705201 | [1] | COCK | KOBWATER Superseded by part number: 133149A1 |
| 20. | VAMS666040 | [1] | CLAMP | KOBCLAMP, HOSE 16 |
| 21. | VA3090705800 | [1] | PIPE | KOBPIPE, DRAIN COCK, L=380, M3 ONLY Superseded by part number: 3090705800 |
| . . | VAME050910 | [1] | HOSE | KOBDRAIN COCK, L=950, M6 ONLY |
| 22. | VA3000715301 | [1] | CLAMP | KOBCLAMP |
| 26. | VAMH000713 | [5] | BOLT | KOBBOLT, FLANGE 10X20 |
| 27. | VAMF303365 | [27] | WASHER | KOBBOLT, W/WSR 10X30, M3 ONLY, EXC T-KS1Y Superseded by part number: 133169A1 |
| . . | VAMF303365 | [25] | WASHER | KOBBOLT, W/WSR 10X30, M3 ONLY, ONLY T-KS1Y Superseded by part number: 133169A1 |
| . . | VAMF300845 | [2] | BOLT | KOBM3 ONLY, ONLY T-KS1Y |
| . . | VAMF300847 | [1] | BOLT | KOBBOLT, W/WSR 10X35, M3 ONLY, EXC T-KS1Y |
| 29. | VAMH000727 | [8] | BOLT | KOBBOLT, FLANGE 12X30 |
| 31. | VAME051241 | [1] | COVER | KOBCOVER Superseded by part number: ME051241 |
| 32. | VA3123612600 | [1] | GASKET | KOBGASKET Superseded by part number: 133176A1 |
| 33. | VAMH000706 | [2] | SCREW | KOBBOLT, FLANGE 10X16 Superseded by part number: 132289A1 |
