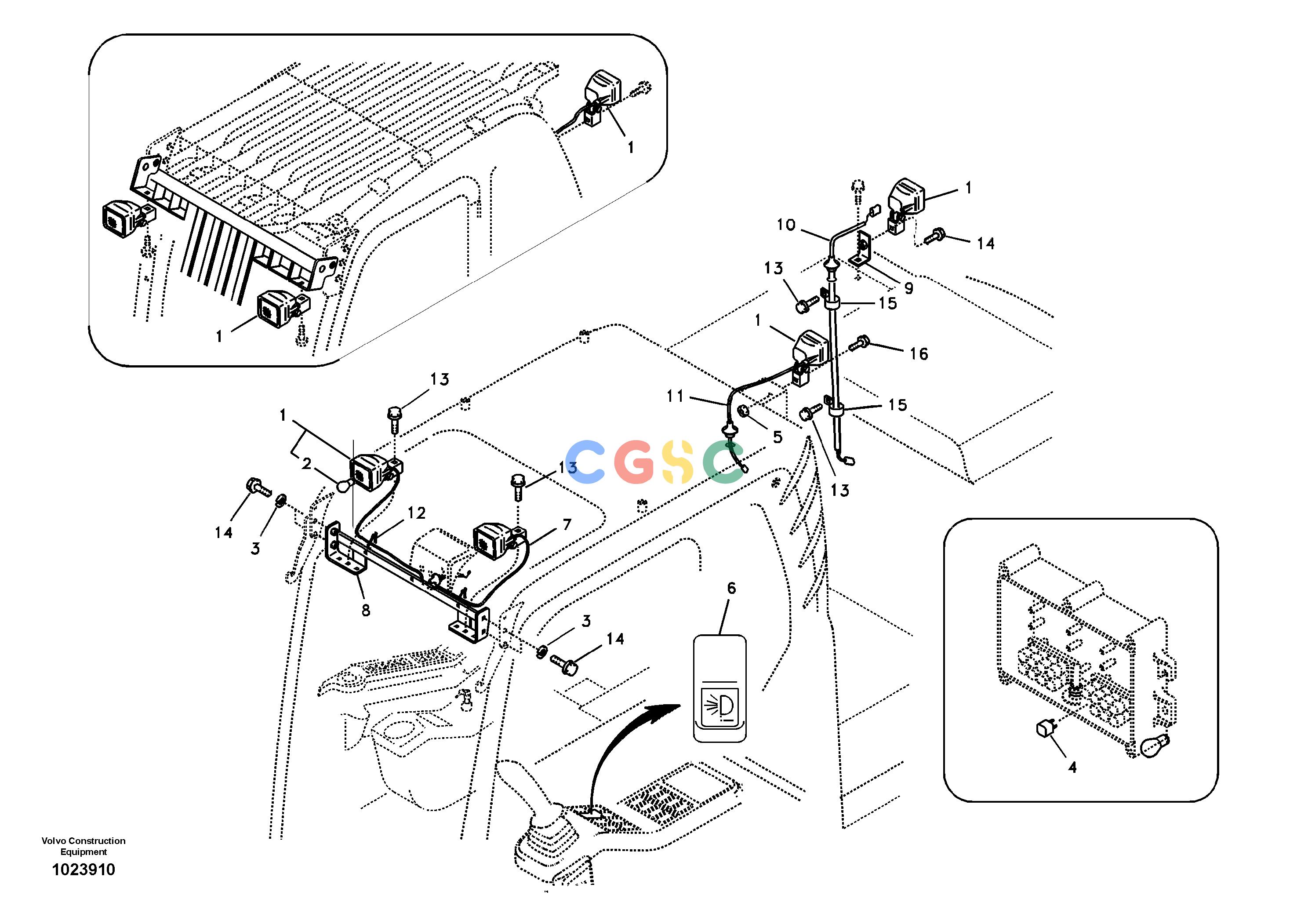

沃尔沃零件查询EC180B Work lights, extraPRIME S/N 12001-8277799-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11039846
|
[4] |
Work lamp
|
|
| 2. |
VOE992517
|
[1] |
Bulb
|
24V,70W
|
| 3. |
VOE955922
|
[4] |
Spring washer
|
|
| 4. |
VOE20374662
|
[1] |
Relay
|
|
| 5. |
VOE983304
|
[1] |
Hexagon nut
|
|
| 6. |
VOE14529229
|
[1] |
Switch
|
|
| 7. |
VOE14508662
|
[1] |
Wiring harness
|
|
| 8. |
VOE14511538
|
[1] |
Bracket
|
|
| 9. |
VOE14514007
|
[1] |
Bracket
|
|
| 10. |
VOE14514373
|
[1] |
Wiring harness
|
|
| 11. |
VOE14514378
|
[1] |
Wiring harness
|
|
| 12. |
SA9314-02100
|
[3] |
Cable tie
|
|
| 13. |
VOE946471
|
[4] |
Flange screw
|
|
| 14. |
VOE946441
|
[5] |
Flange screw
|
|
| 15. |
VOE14500292
|
[2] |
Clip
|
|
| 16. |
VOE946441
|
[1] |
Flange screw
|
|
