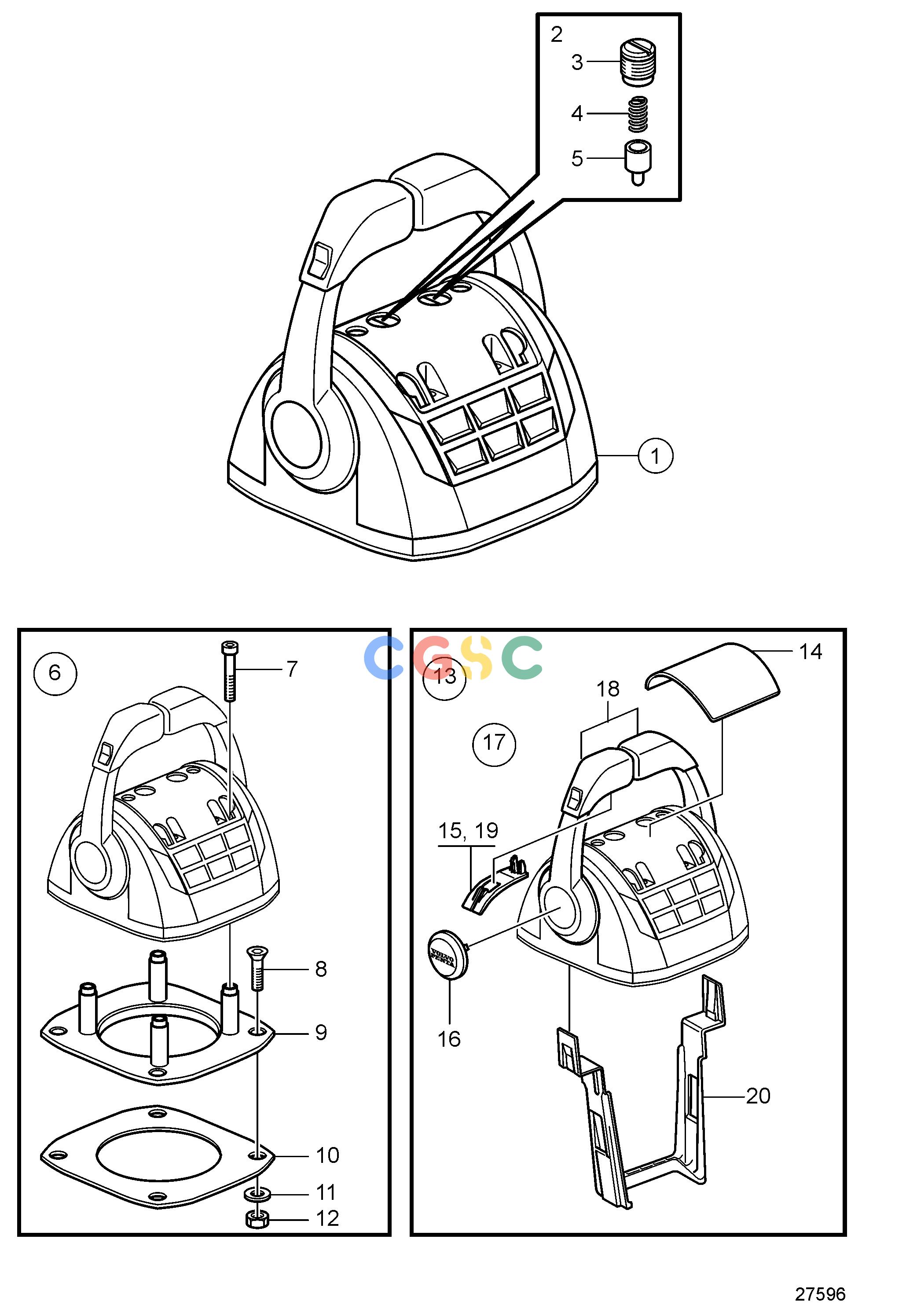

沃尔沃零件查询D11B1-A MP; D11B2-A MPControlsElectronic Control with Trim, Sterndrive, EVC-E, Twin InstallationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21730160
|
[1] |
Control lever
|
|
| 1. |
22498457
|
[1] |
Control lever
|
|
| 1. |
3586259
|
[2] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3586261
|
[2] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
21526920
|
[1] |
Spare parts kit, position sensor
|
|
| 3. |
|
|
|
M14
|
| 4. |
|
|
|
|
| 5. |
|
|
|
|
| 6. |
21461720
|
[1] |
Installation kit, mounting bracket
|
|
| 7. |
995042
|
[4] |
Hex. socket screw
|
|
| 8. |
994821
|
[4] |
Hex. socket screw
|
|
| 9. |
21461704
|
[1] |
Bracket
|
|
| 10. |
|
|
|
|
| 11. |
940275
|
[4] |
Washer
|
|
| 12. |
984456
|
[4] |
Lock nut
|
|
| 13. |
21527169
|
[1] |
Kit, plastic parts
|
|
| 14. |
|
|
|
|
| 15. |
21461681
|
[1] |
Cover
|
|
| 16. |
|
|
|
|
| 17. |
21766371
|
[1] |
Kit
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
21461675
|
[1] |
Cable holder
|
|
