神钢零件查询(6D22-T) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (01-033) - AIR COMPRESSOR GENERAL 020-530B Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
821 次

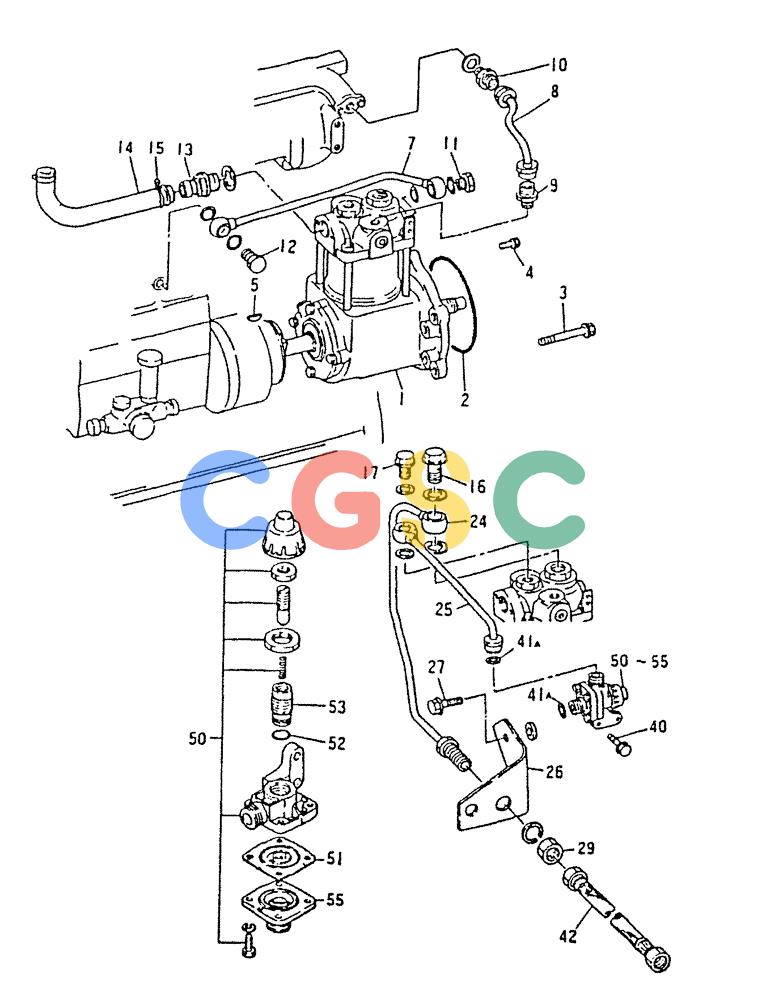

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME150109 | [1] | AIR COMPRESSOR | KOBASSY, Serial Range: GN020-GN531A Superseded by part number: 132554A1 |
| 2. | VAMH035606 | [1] | O-RING | KOBO-RING |
| 3. | VAMH000724 | [5] | SCREW | KOBBOLT, FLANGE 10X85 Superseded by part number: 132669A1 |
| 4. | VAMH000713 | [1] | BOLT | KOBBOLT, FLANGE 10X20 |
| 5. | VAMS476136 | [1] | WOODRUFF KEY | KOBKEY, WOODRUFF 5X22 |
| 7. | VAME057665 | [1] | RIGID TUBE | KOB Superseded by part number: 132596A1 |
| 8. | VAME057110 | [1] | PIPE | KOBWATER OUTLET |
| 9. | VAMH037507 | [1] | CONNECTOR CONNECTOR | CONNECTOR CONNECTOR |
| 10. | VAMH037453 | [1] | HYD CONNECTOR | KOBCONNECTOR |
| . . | VAMF660065 | [1] | GASKET | KOBGASKET 14 |
| 11. | VAMH037087 | [1] | BOLT | KOBBOLT, EYE |
| 12. | VAMF650115 | [1] | SPECIAL BOLT | KOBBOLT, EYE 16 |
| . . | VAMF660066 | [2] | GASKET | KOBGASKET 16 Superseded by part number: VAF420216000 |
| 13. | VAMH037397 | [1] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: 240084A1 |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 14. | VA3097508200 | [1] | SUCTION PIPE | KOBPIPE, AIR SUCTION |
| 15. | VAMS666012 | [2] | HOSE CLAMP | KOBCLAMP, HOSE 30 |
| 16. | VA3097506600 | [1] | BOLT | KOBBOLT, EYE |
| . . | VAMH035161 | [2] | GASKET | KOBGASKET 24 Superseded by part number: 132640A1 |
| 17. | VAMF650106 | [1] | BOLT | KOBBOLT, EYE 18 |
| . . | VAMH035160 | [2] | GASKET | KOBGASKET 18 Superseded by part number: 132639A1 |
| 24. | VAME059910 | [1] | PIPE AIR OUTLE | PIPE AIR OUTLE |
| 25. | VA3097591900 | [1] | PIPE | KOBPIPE, UNLOADER |
| 26. | VAME059801 | [1] | BRACKET | BRACKET |
| 27. | VAMH000923 | [2] | BOLT | KOBBOLT, FLANGE 12X35 |
| . . | VAMF450007 | [1] | WASHER | KOBWASHER, PLAIN 12 Superseded by part number: 132624A1 |
| 29. | VAMF430731 | [1] | NUT | KOBNUT 20 Superseded by part number: 132633A1 |
| . . | VAMF450411 | [1] | WASHER | KOBWASHER, SPG 20 Superseded by part number: 132621A1 |
| 40. | VAMF140025 | [2] | SCREW | KOBBOLT, FLANGE 8X20 |
| 41A. | VAMH035004 | [1] | GASKET GASKET 8 | GASKET GASKET 8 |
| . . | VAMH035107 | [2] | GASKET | KOBGASKET 9 Superseded by part number: VAMH035195 |
| 42. | VAMH032863 | [1] | HOSE | KOBHOSE, AIR, L=380 |
| 50-55. | VAMC802148 | [1] | GOVERNOR | KOBPRESSURE GOVERNOR ASSY |
| 50. | NSS | [1] | NOT SOLD SEPARAT | CONBODY, PRESS, GOV |
| 51-55. | VAMC802151 | [1] | KIT, ENGINE TOP GASK | KOBPRESSURE GOVERNOR KIT Superseded by part number: 77268813, VA4087070100 |
| 51. | VAME705602 | [1] | DIAPHRAGM | KOB |
| 52. | VAMC821656 | [1] | O-RING | |
| 53. | VAME705601 | [1] | SLEEVE | |
| 55. | VAME705603 | [1] | CAP | |
