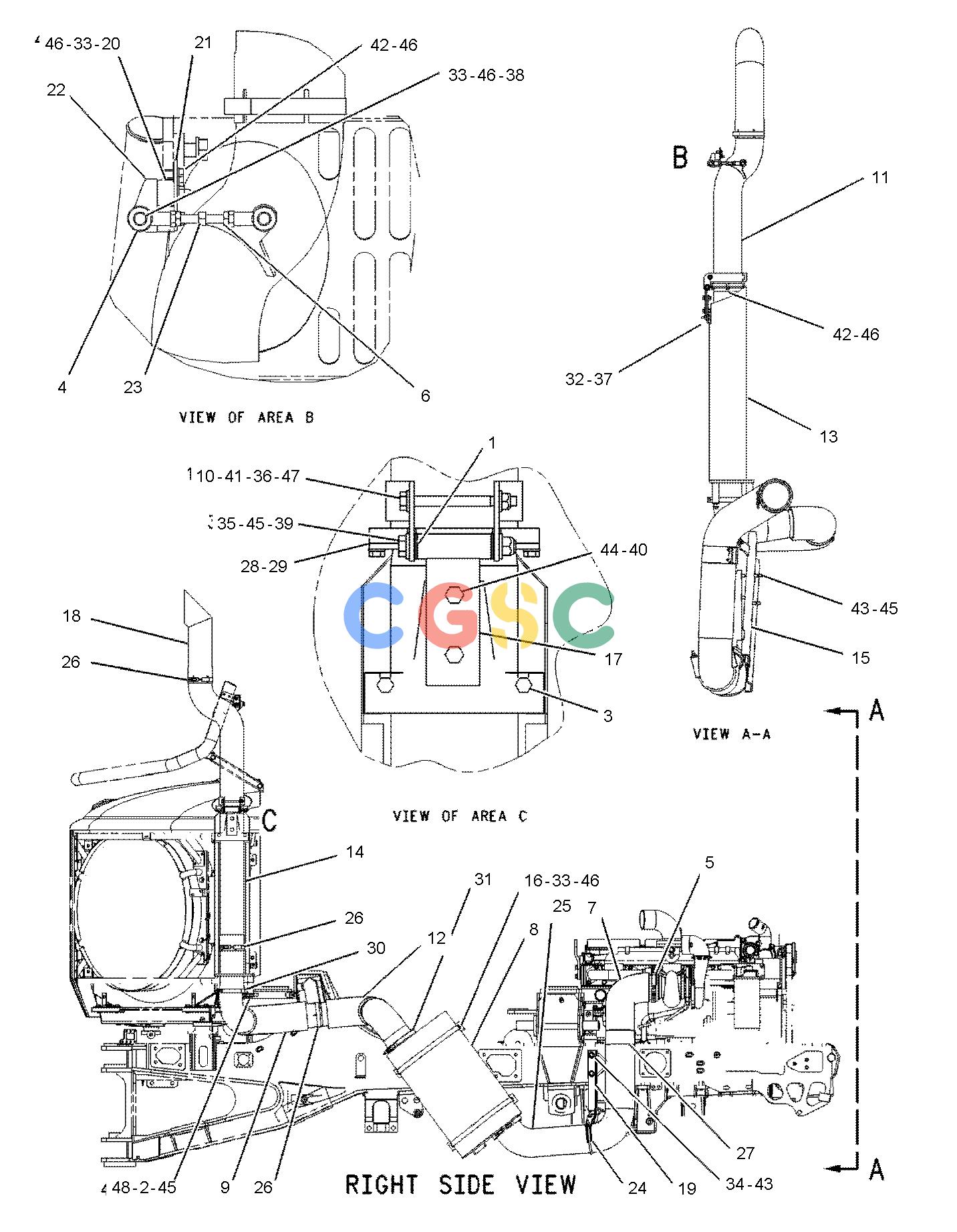

卡特零件查询（725） 149-0013: MUFFLER GP
广数供应链运营团队, 14 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2T-2897B | [2] | WASHER-SPRING | |
| 2. | 4B-5272B | [3] | WASHER(12.7X31.7X2-MM THK) | |
| 3. | 6U-5219 | [1] | U-CLAMP AS | |
| | 5P-1075 | [2] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 4. | 8T-6431 | [2] | ROD END | |
| 5. | 9N-1941 | [1] | CLAMP-V BAND | |
| 6. | 142-0485M | [2] | NUT(M10X1.5-THD) | |
| 7. | | [1] | PIPE AS |
| 8. | | [1] | MUFFLER AS |
| 9. | 173-2328 | [1] | PIPE AS | |
| 10. | 173-2329 | [1] | CLAMP-TUBE | |
| 11. | 173-2330 | [1] | PIPE AS | |
| 12. | 173-2331 | [1] | PIPE AS | |
| 13. | 174-9205 | [1] | SUPPORT AS-EXHAUST | |
| 14. | 174-9246 | [1] | PIPE AS | |
| 15. | 175-3377 | [1] | SUPPORT AS | |
| 16. | 175-3380 | [2] | PLATE | |
| 17. | 175-4780 | [1] | PLATE AS | |
| 18. | 211-4635 | [1] | PIPE-EXHAUST | |
| 19. | 175-7262 | [1] | PLATE | |
| 20. | 175-9076 | [2] | MOUNTING | |
| 21. | 175-9077 | [1] | PLATE | |
| 22. | 175-9078 | [1] | PLATE | |
| 23. | 175-9079M | [1] | ROD-LINK | |
| 24. | 176-8102 | [1] | CLAMP | |
| 25. | 176-8232 | [1] | TUBE AS | |
| 26. | 176-8234 | [3] | CLAMP | |
| 27. | 176-8237 | [1] | CLAMP | |
| 28. | 197-4834 | [1] | SEAL | |
| 29. | 197-4835 | [1] | PLATE-RETAINER | |
| 30. | 202-1838 | [1] | CLAMP-V BAND | |
| 31. | 202-1839 | [2] | CLAMP-V BAND | |
| 32. | 205-3625 | [1] | PLATE AS | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 33. | 5C-7261M | [14] | NUT(M8X1.25-THD) | |
| 34. | 5P-1076 | [2] | WASHER-HARD(13.5X30X4-MM THK) | |
| 35. | 6V-7687M | [1] | LOCKNUT(M12X1.75-THD) | |
| 36. | 6V-7744M | [1] | LOCKNUT(M10X1.5-THD) | |
| 37. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 38. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 39. | 7X-2550M | [1] | BOLT(M12X1.75X110-MM) | |
| 40. | 7X-7729 | [2] | WASHER(11X25X3-MM THK) | |
| 41. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 42. | 8T-4189M | [8] | BOLT(M8X1.25X20-MM) | |
| 43. | 8T-4192M | [6] | BOLT(M12X1.75X25-MM) | |
| 44. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 45. | 8T-4223 | [9] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 46. | 8T-4224B | [24] | WASHER-HARD(8.8X16X2-MM THK) | |
| 47. | 8T-6685M | [1] | BOLT(M10X1.5X110-MM) | |
| 48. | 8T-6868M | [3] | BOLT(M12X1.75X80-MM) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
