斗山零件查询TWO WAY PIPING - ARTI.BOOM DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

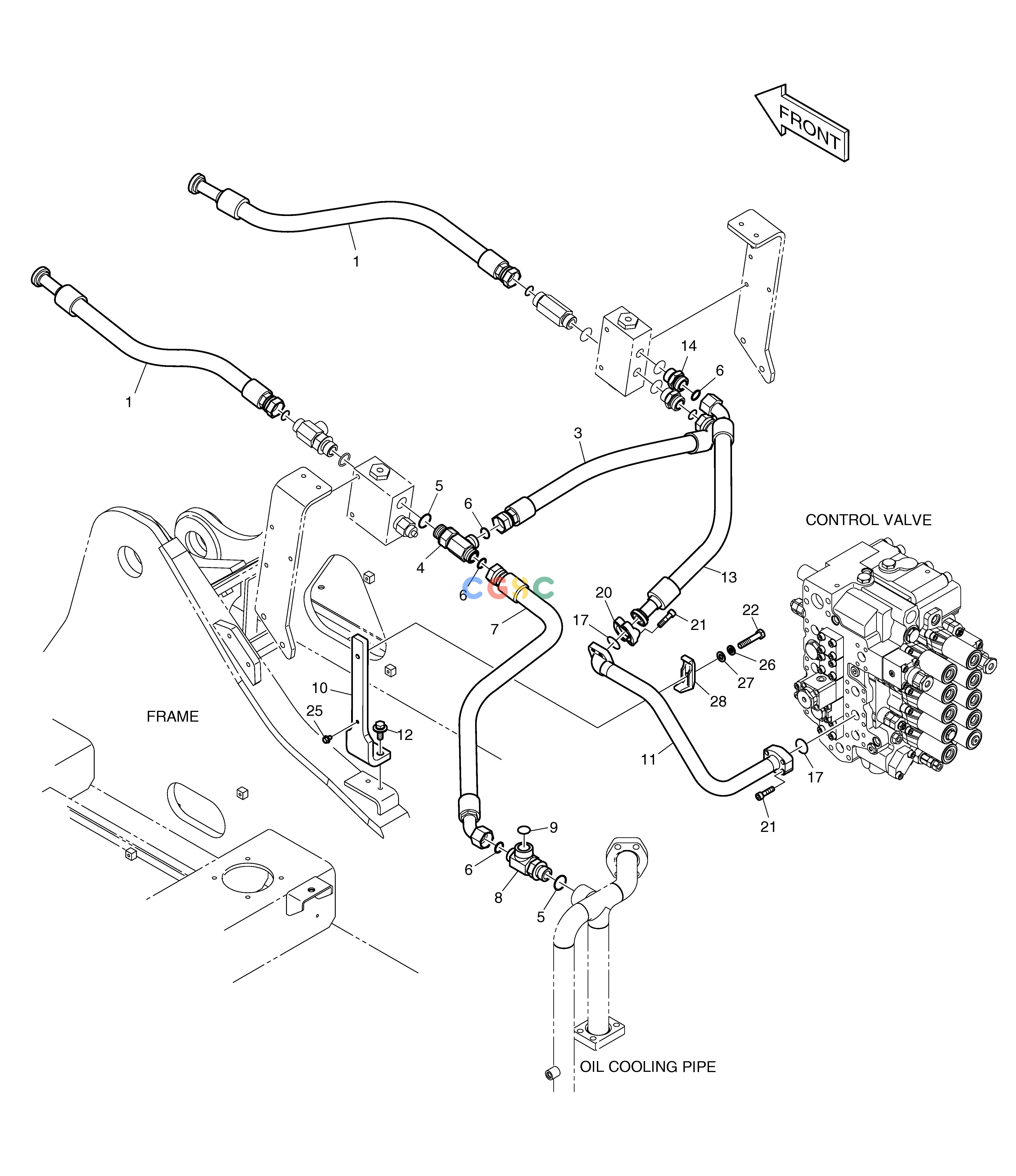

K1044634
|
[-] |
TWO WAY PIPING;ARTI BOOM
|
|
| 1. |
DS2016096
|
[2] |
HOSE
|
|
| 10. |
195-03438A
|
[1] |
BRACKET
|
|
| 11. |
140-02011A
|
[1] |
PIPE
|
|
| 12. |
DS0025020
|
[2] |
BOLT
|
|
| 13. |
DS2082010
|
[1] |
HOSE
|
|
| 14. |
2181-4133D6
|
[1] |
ADAPTER
|
|
| 17. |
2180-1026D19
|
[2] |
O-RING
|
|
| 20. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 21. |
S2212466
|
[8] |
BOLT
|
|
| 22. |
S0561066
|
[1] |
BOLT
|
|
| 25. |
K1001029
|
[1] |
BOLT
|
|
| 26. |
S5102703
|
[1] |
WASHER
|
|
| 27. |
S5010713
|
[1] |
WASHER;PLAIN
|
|
| 28. |
2124-1026D3
|
[1] |
CLAMP;PIPE
|
|
| 3. |
DS2013834
|
[1] |
HOSE
|
|
| 4. |
2181-2293D4
|
[1] |
TEE
|
|
| 5. |
S8000291
|
[2] |
O-RING
|
|
| 6. |
S8030161
|
[4] |
O-RING
|
|
| 7. |
DS2012217
|
[1] |
HOSE
|
|
| 7. |
DS2012074
|
[1] |
|
|
| 8. |
DS2412024
|
[1] |
TEE
|
|
| 9. |
2180-1026D37
|
[1] |
O-RING
|
|
