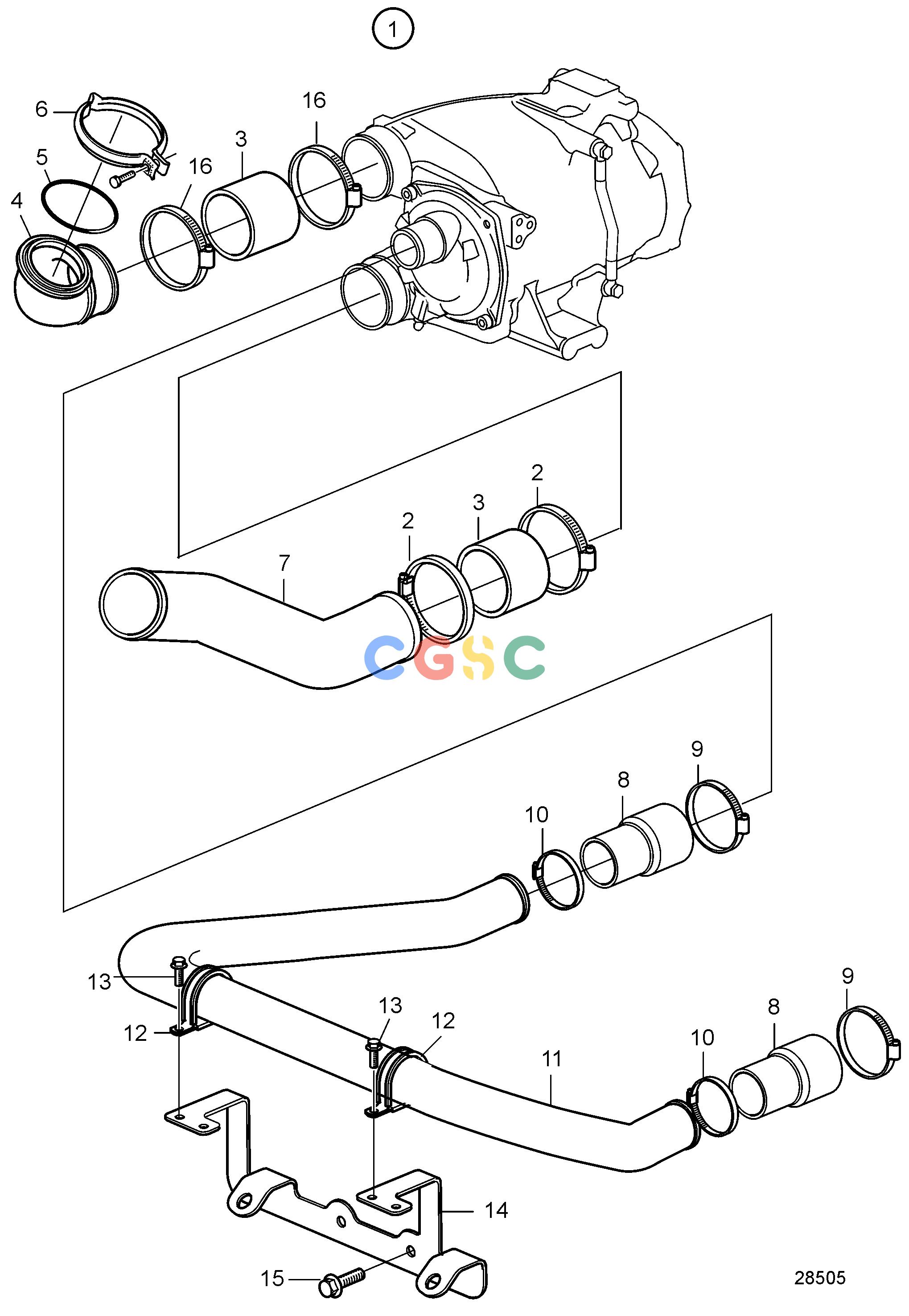

沃尔沃零件查询D11B1-A MP; D11B2-A MPCooling SystemConnecting Components for Charge Air CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21506789
|
[1] |
Charge air cooler
|
|
| 2. |
996675
|
[2] |
Hose clamp
|
|
| 3. |
21832376
|
[1] |
Hose
|
|
| 4. |
21611996
|
[1] |
Charge air pipe
|
|
| 5. |
945512
|
[1] |
O-ring
|
|
| 6. |
20592783
|
[1] |
V-clamp
|
|
| 7. |
21611628
|
[1] |
Charge air pipe
|
|
| 7. |
952986
|
[1] |
Hose
|
|
| 8. |
3837438
|
[2] |
Collar
|
|
| 9. |
961672
|
[2] |
Hose clamp
|
|
| 10. |
961671
|
[2] |
Hose clamp
|
|
| 11. |
21619213
|
[1] |
Pipe
|
|
| 12. |
947457
|
[2] |
Clamp
|
|
| 13. |
984724
|
[2] |
Flange screw
|
|
| 14. |
22211432
|
[1] |
Bracket
|
|
| 15. |
984752
|
[2] |
Flange screw
|
|
| 16. |
20705901
|
[2] |
Hose clamp
|
|
