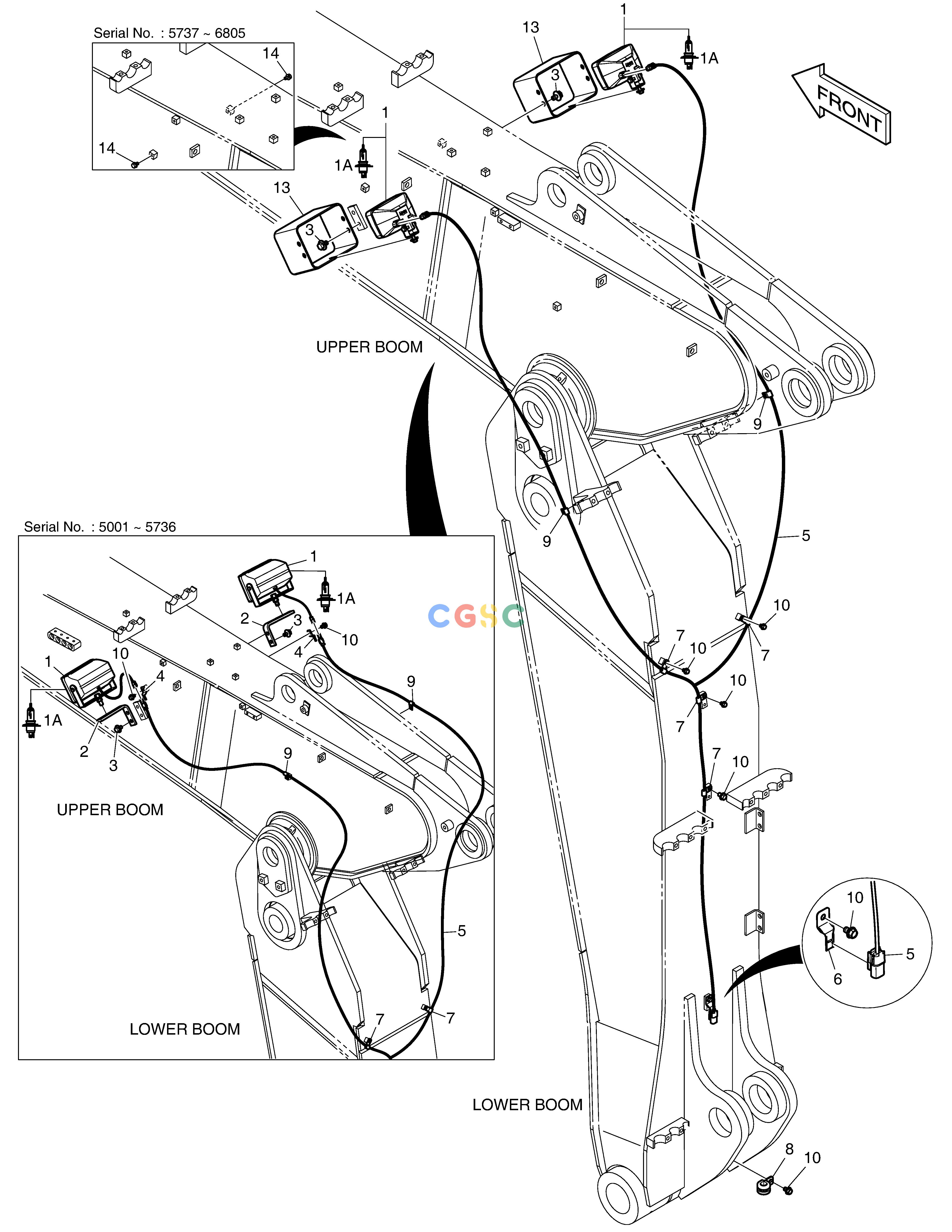

斗山零件查询WORKING LAMP - ARTI. BOOM DX225LC (S/N 5433~) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
282 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1027549
|
[-] |
WORKING LAMP
|
|
| -. |
300619-00609
|
[-] |
|
|
| 1. |
534-00064
|
[2] |
LAMP;WORKING
|
|
| 1. |
301005-00132
|
[2] |
|
|
| 10. |
K1001029
|
[6] |
BOLT
|
|
| 13. |
110921-00091
|
[2] |
|
|
| 14. |
DS0025044
|
[2] |
BOLT
|
|
| 1A. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 1A. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 2. |
2195-2394B
|
[2] |
BRACKET
|
|
| 3. |
DS0025019
|
[4] |
BOLT
|
|
| 3. |
DS0025022
|
[4] |
BOLT
|
|
| 3. |
DS0025019
|
[4] |
BOLT
|
|
| 4. |
2197-1661
|
[2] |
BRACKET
|
|
| 5. |
530-00418D8
|
[1] |
HARNESS;WORK LAMP
|
|
| 5. |
310207-00541
|
[1] |
|
|
| 6. |
2197-1660
|
[1] |
BRACKET
|
|
| 7. |
2124-1509D1
|
[4] |
CLIP
|
|
| 8. |
124-00208D2
|
[1] |
CLAMP
|
|
| 9. |
2124-1353D1
|
[2] |
CLIP
|
|
