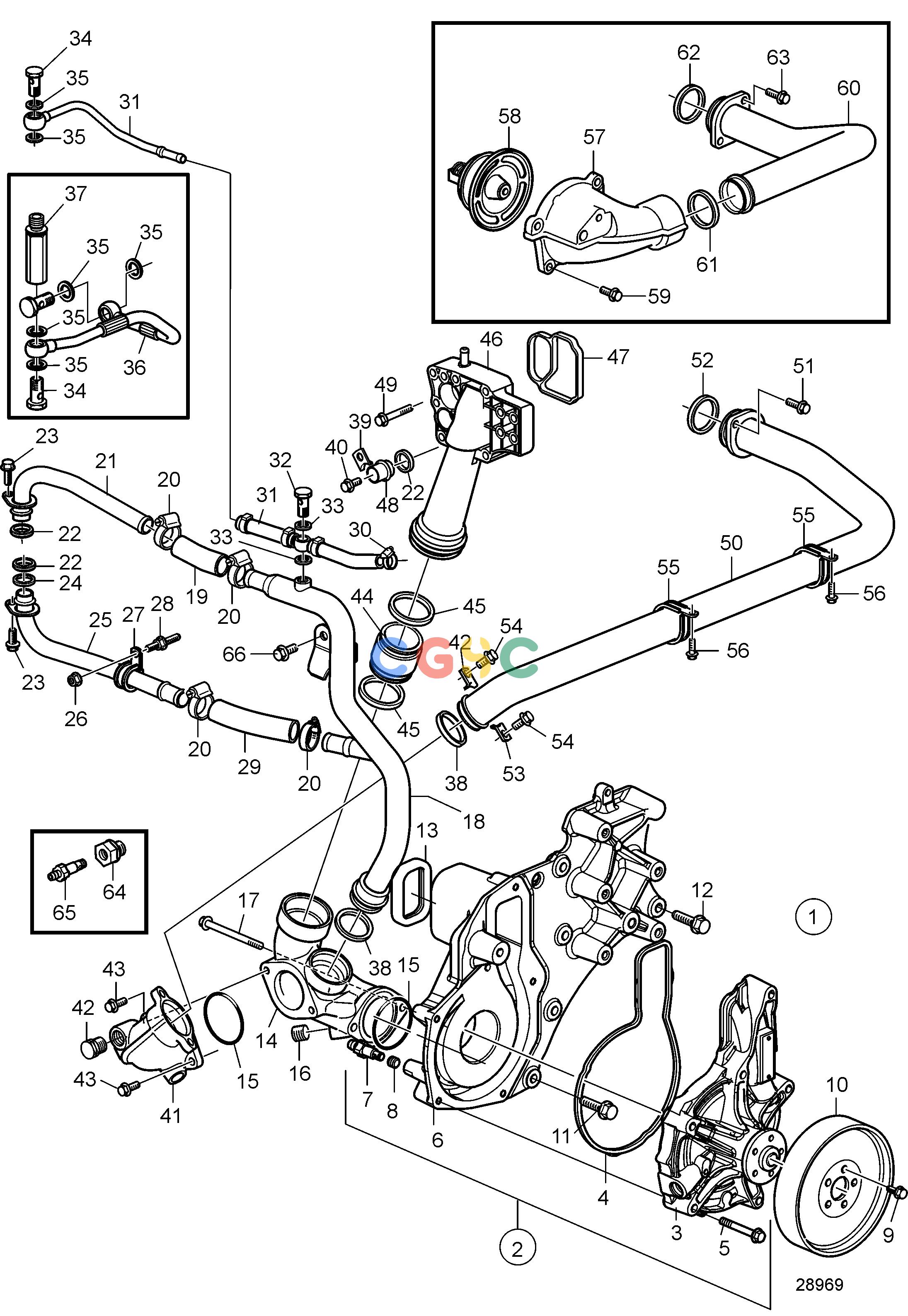

沃尔沃零件查询D11B1-A MP; D11B2-A MPCooling SystemCooling Water Pump and Thermostat HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801484
|
[1] |
Coolant pump, exch
|
Replaced by next part number
|
| 1. |
3801619
|
[1] |
Coolant pump, exch
|
|
| 2. |
|
|
|
|
| 3. |
3801418
|
[1] |
Coolant pump
|
Replaced by 22195450
|
| 3. |
22195450
|
[1] |
Pump unit
|
|
| 4. |
21415427
|
[1] |
Rubber moulding
|
For 3801418
|
| 4. |
21103569
|
[1] |
Rubber moulding
|
For 22195450
|
| 5. |
965180
|
[6] |
Flange screw
|
|
| 6. |
21305392
|
[1] |
Coolant pump housing
|
|
| 7. |
3583822
|
[1] |
Draining nipple
|
|
| 8. |
968061
|
[1] |
Plug
|
|
| 9. |
944926
|
[6] |
Flange screw
|
|
| 10. |
3594389
|
[1] |
Pulley wheel
|
|
| 11. |
969445
|
[6] |
Flange screw
|
|
| 12. |
969445
|
[2] |
Flange screw
|
|
| 13. |
20430678
|
[1] |
Rubber moulding
|
|
| 14. |
21253761
|
[1] |
Coolant pipe
|
|
| 15. |
975675
|
[2] |
O-ring
|
|
| 16. |
968061
|
[1] |
Plug
|
|
| 17. |
984744
|
[2] |
Flange screw
|
|
| 18. |
21814083
|
[1] |
Coolant pipe
|
|
| 19. |
969033
|
[1] |
Rubber hose
|
|
| 20. |
961667
|
[2] |
Hose clamp
|
|
| 21. |
21817370
|
[1] |
Coolant pipe
|
|
| 22. |
1547252
|
[2] |
Sealing ring
|
|
| 23. |
984733
|
[1] |
Flange screw
|
|
| 24. |
|
|
|
|
| 25. |
21683478
|
[1] |
Coolant pipe
|
|
| 26. |
990940
|
[1] |
Flange nut
|
|
| 27. |
947827
|
[1] |
Clamp
|
|
| 28. |
20714050
|
[1] |
Flange screw
|
|
| 29. |
969033
|
[1] |
Rubber hose
|
|
| 30. |
961664
|
[1] |
Hose clamp
|
|
| 31. |
21621721
|
[1] |
Pipe set
|
|
| 32. |
25167
|
[1] |
Hollow screw
|
|
| 33. |
982723
|
[2] |
Gasket
|
|
| 34. |
941686
|
[1] |
Hollow screw
|
|
| 35. |
11996
|
[2] |
Gasket
|
|
| 36. |
21866532
|
[1] |
Coolant pipe
|
|
| 37. |
21621182
|
[1] |
Nipple
|
|
| 38. |
1547253
|
[1] |
Sealing ring
|
|
| 39. |
1546531
|
[2] |
Lock brace
|
|
| 40. |
984733
|
[2] |
Flange screw
|
|
| 41. |
3886496
|
[1] |
Coolant pipe
|
|
| 42. |
1546531
|
[1] |
Lock brace
|
|
| 43. |
984735
|
[2] |
Flange screw
|
|
| 44. |
21021925
|
[1] |
Connection pipe
|
|
| 45. |
1547254
|
[2] |
Sealing ring
|
|
| 46. |
20555313
|
[1] |
Connection pipe
|
|
| 47. |
20479636
|
[1] |
Sealing strip
|
|
| 48. |
20845995
|
[1] |
Plug
|
|
| 49. |
994441
|
[5] |
Flange screw
|
|
| 50. |
3886500
|
[1] |
Coolant pipe
|
|
| 51. |
984734
|
[2] |
Flange screw
|
|
| 52. |
864491
|
[1] |
Gasket
|
|
| 53. |
1546531
|
[1] |
Lock brace
|
|
| 54. |
984733
|
[2] |
Flange screw
|
|
| 55. |
947457
|
[2] |
Clamp
|
|
| 56. |
994442
|
[2] |
Flange screw
|
|
| 57. |
21363801
|
[1] |
Cover
|
|
| 58. |
21412647
|
[1] |
Thermostat
|
76°C
|
| 59. |
984734
|
[4] |
Flange screw
|
|
| 60. |
3836309
|
[1] |
Coolant pipe
|
|
| 61. |
1547253
|
[1] |
Sealing ring
|
|
| 62. |
864491
|
[1] |
Gasket
|
|
| 63. |
984734
|
[2] |
Flange screw
|
|
| 64. |
3812353
|
[1] |
Nipple
|
|
| 65. |
3583822
|
[1] |
Draining nipple
|
|
| 66. |
984751
|
[1] |
Flange screw
|
|
