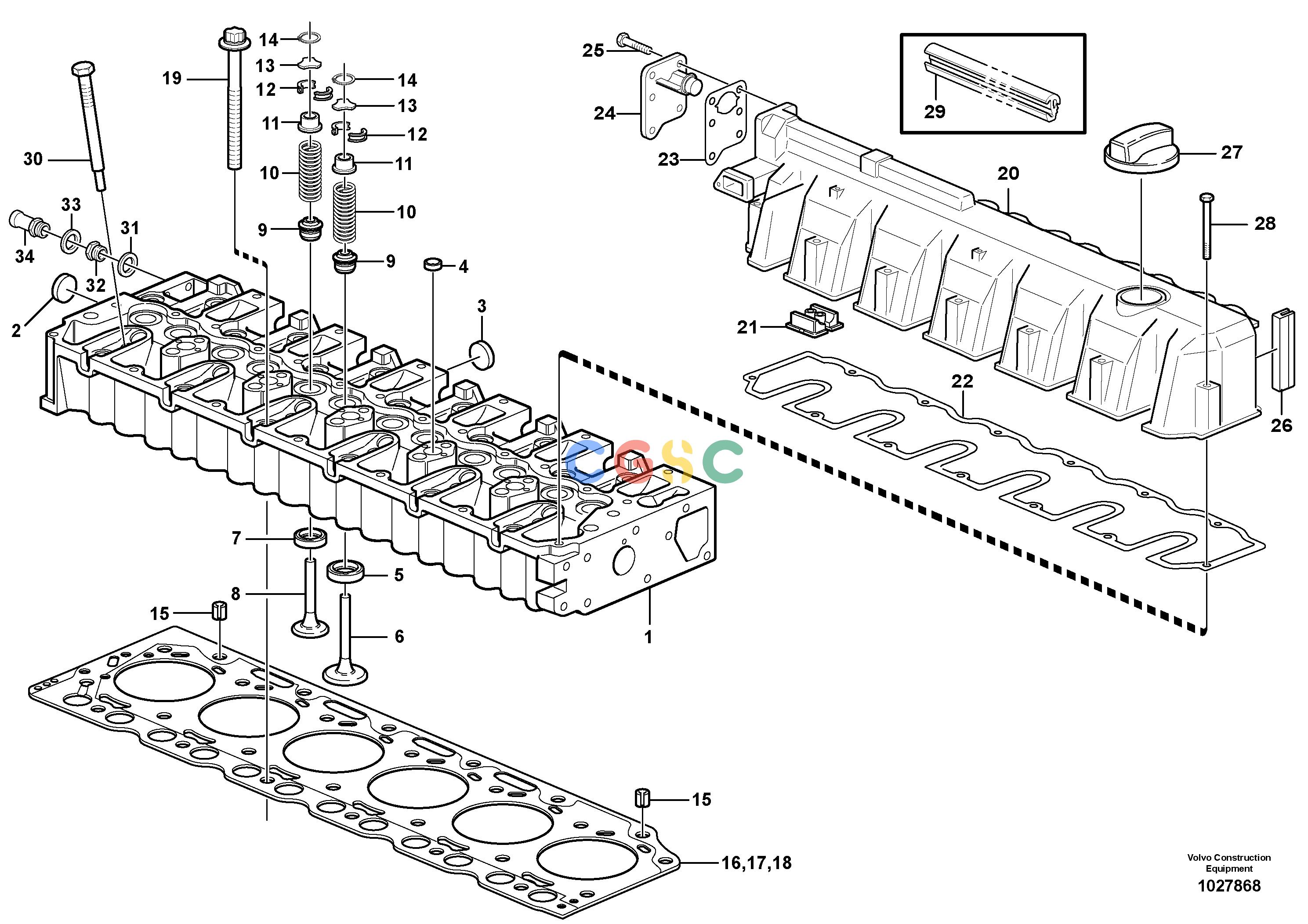

沃尔沃零件查询EC180C Cylinder head120001-1203058280348-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
539 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20855301
|
[1] |
Cylinder head
|
|
| 2. |
VOE20914266
|
[1] |
Core Plug
|
|
| 3. |
VOE20412745
|
[5] |
Core plug
|
|
| 4. |
VOE20412733
|
[5] |
Core plug
|
|
| 5. |
VOE20849976
|
[6] |
Valve seat
|
|
| 6. |
VOE20798699
|
[6] |
Inlet valve
|
|
| 7. |
VOE20849979
|
[6] |
Insert
|
|
| 8. |
VOE20798533
|
[6] |
Exhaust valve
|
|
| 9. |
VOE20459855
|
[12] |
Valve seal
|
|
| 10. |
VOE20459851
|
[12] |
Valve spring
|
|
| 11. |
VOE20840747
|
[12] |
Spring disc
|
|
| 12. |
VOE20459857
|
[24] |
Valve sleeve
|
|
| 13. |
VOE20840807
|
[12] |
Thrust washer
|
|
| 14. |
VOE20840772
|
[12] |
Lock ring
|
|
| 15. |
VOE20459839
|
[2] |
Bushing
|
|
| 16. |
VOE20798183
|
[1] |
Cylinder head gasket
|
THICK = 1,27 MM
1 BORE
|
| 17. |
VOE20798186
|
[1] |
Cylinder head gasket
|
THICK = 1,37 MM
2 BORES
|
| 18. |
VOE20798191
|
[1] |
Cylinder head gasket
|
THICK = 1,47 MM
3 BORES
|
| 19. |
VOE20459838
|
[19] |
Bolt
|
|
| 20. |
VOE21134620
|
[1] |
Valve cover
|
|
| 21. |
VOE20412590
|
[1] |
Cap
|
|
| 22. |
VOE20841035
|
[1] |
Gasket
|
|
| 23. |
VOE20840801
|
[1] |
Gasket
|
|
| 24. |
VOE20933359
|
[1] |
Oil Separator
|
|
| 25. |
VOE20797542
|
[6] |
Hexagon screw
|
|
| 26. |
VOE20859647
|
[2] |
Gasket
|
|
| 27. |
VOE20412589
|
[1] |
Filler cap
|
|
| 28. |
VOE22278501
|
[13] |
Hexagon screw
|
|
| 29. |
VOE20933362
|
[1] |
Seal
|
|
| 30. |
VOE21455743
|
[1] |
Plug
|
|
| 31. |
VOE13969011
|
[1] |
Gasket
|
|
| 32. |
VOE20516927
|
[1] |
Sealing ring
|
|
| 33. |
VOE13947281
|
[1] |
Gasket
|
|
| 34. |
VOE20483764
|
[1] |
Nipple
|
|
