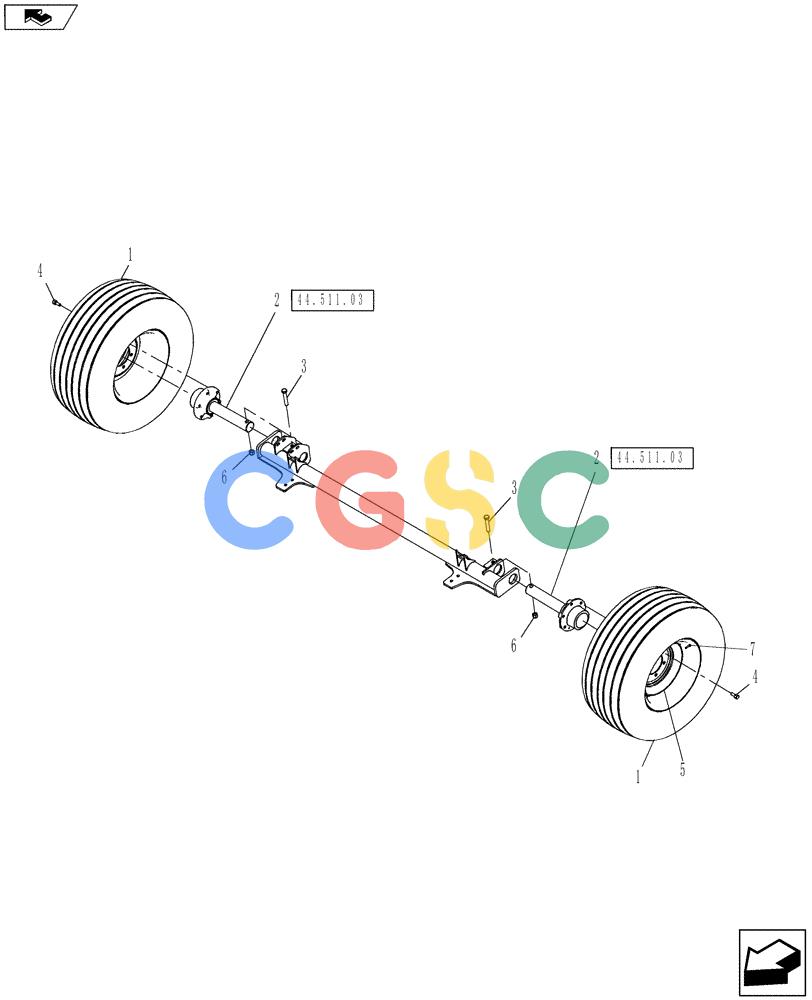

凯斯零件查询(RB455A) - UTILITY CASE IH ROUND BALER (1/10-12/14) (44.511.02) - TIRES & WHEELS, 31 X 13.5 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86566288
|
[2] |
TYRE/TIRE
|
PA
Grooved Implement, 31 x 13.5-15, 6 Ply Superseded by part number: 86564435
|
| 2. |
0C
|
[2] |
ORDER COMPONENTS
|
NH
Wheel Hub
|
| 3. |
350616
|
[2] |
BOLT,M16 x 2 x 90mm, Cl 8.8
|
NH
|
| 4. |
198056
|
[12] |
WHEEL BOLT,1/2" - 20 x 1.031"
|
NH
|
| 5. |
86616346
|
[2] |
WHEEL
|
NH
15 x 10
|
| 6. |
86000441
|
[2] |
NUT,M16 x 2.0, Cl 8
|
NH
|
| 7. |
196033
|
[2] |
VALVE STEM
|
NH
|
